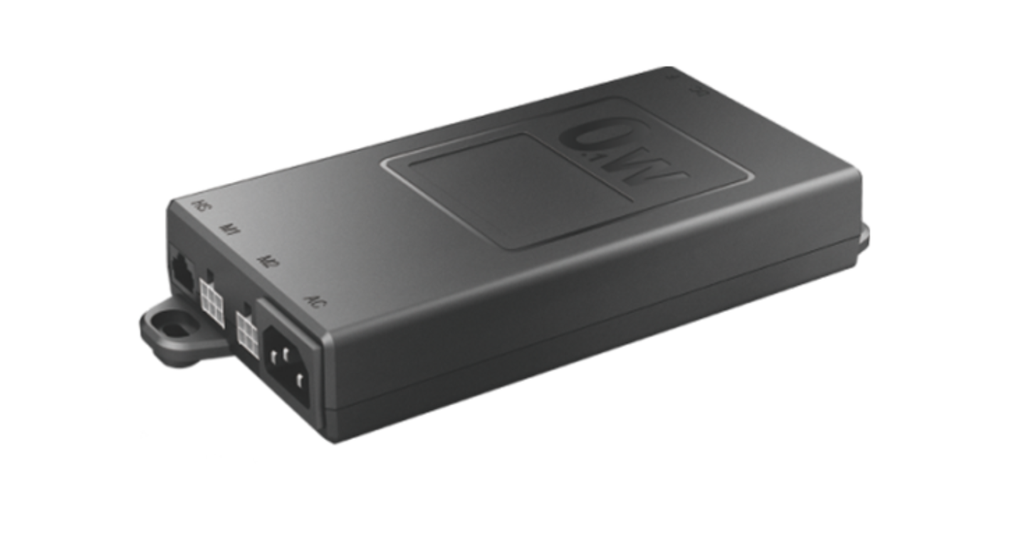

JCB35NS2 control box is an optimum choice for a double motor system.
Together with JIECANG's new software, it can achieve the function of setting height limits, locking desks, changing anti-collision sensitivity and etc.
Furthermore, it is designed with a slot, so the control box can either be fixed under the desktop by screws or fixed on the frame by slot.
The control box shows smooth operation of the table and easy soft start and storage of the columns.
The control box ensures smooth drive of the desk and soft-start & soft-stop of the connected columns. It has an anti-collision function to protect objects from the damage of accident collision during working.
Suitable with a 3-pin power cord.
Suitable with a battery pack.
Compact high-power control box
Compatible with motor QTY: 2
Shell material: fireproof ABS
Soft-start & soft-stop function
Duty cycle: 10 %, Max. 2 minutes operation/Min 18minutes rest of continuous use at full load
Output Voltage (max) 33V
Input Voltage 110/230V
Working frequency 50-60HZ
Output Power 400W
Standby Power 0.1W
