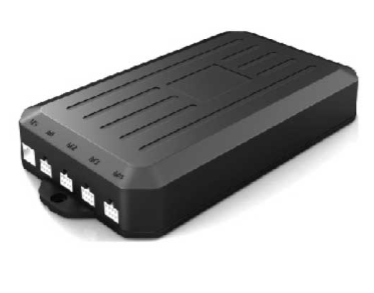

JCB36N4 control box is an optimum choice for a four motor system.
Together with JIECANG's new software, it can achieve the function of setting height limits, locking desks, changing anti-collision sensitivity and etc.
Furthermore, it is designed with a slot, so the control box can either be fixed under the desktop by screws or fixed on the frame by slot.
The control box ensures smooth drive of the desk and soft-start & soft-stop of the connected columns.
It has an anti-collision function to protect objects from the damage of accident collision during working.
Compatible 3-pin power cord
Compact high-power control box
Compatible with motor QTY:4
Shell Material: fireproof ABS
Soft-start & Soft-stop function
0.1W extremely low standby power consumption
Duty cycle max: 10 %
Compatible with all JIECANG columns
With a built-in sensor in the control box, to realize super sensitive anti-collision protection
2pcs JCB36N4 connect together to realize 8 legs synchronized
3pcs JCB36N4 connect together to realize 12 legs synchronized
Full range certifications of CE, UL, SAA, PSE, KC
