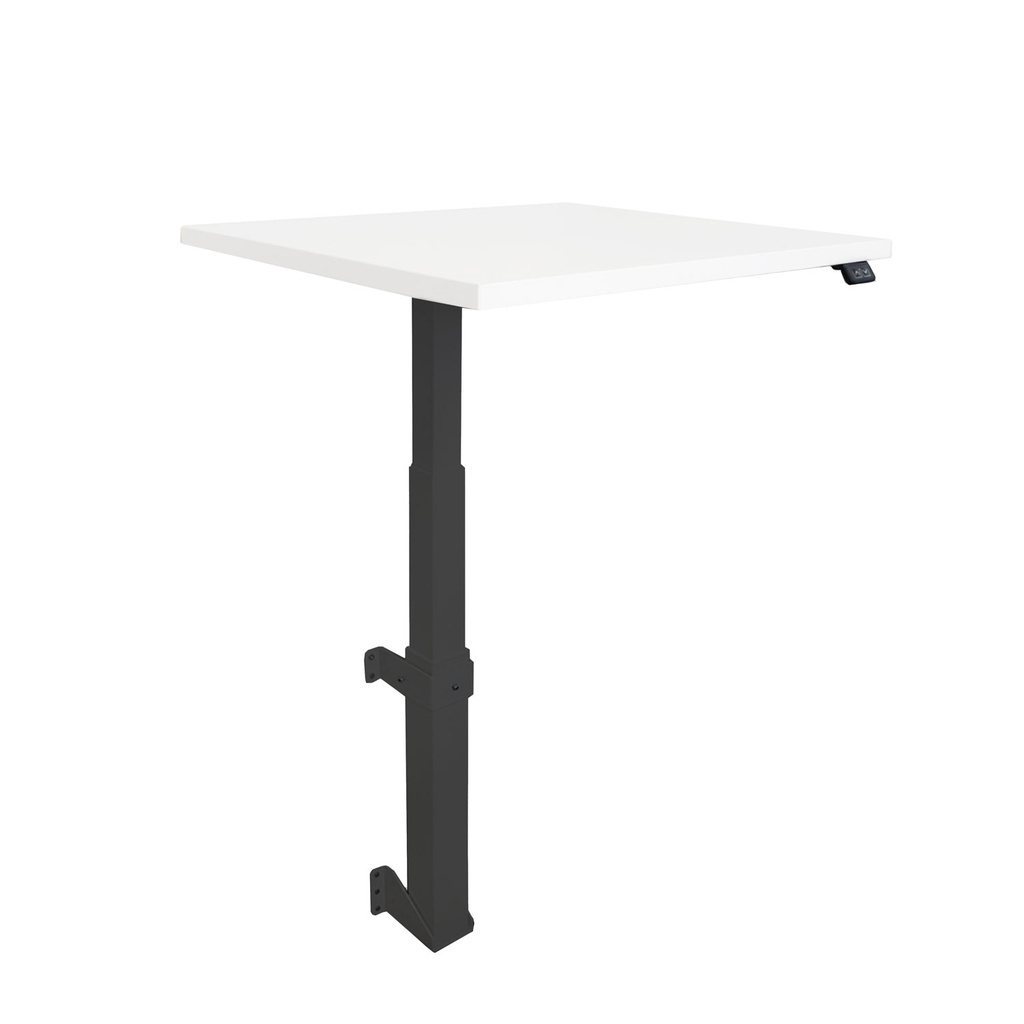

Wall-Mounted Electric Frame with One Lift Pillar!
Recommended tabletop size: 70 x 60 cm
Height adjustment: 580 - 1230 mm
Stroke length: 650 mm
Lift Capacity: 80kg
Color: Black RAL9005
Warranty: 5 Years
10 screws for wall mounting are not included in the package.
Use suitable fasteners for the wall material.
The product consists of three (3) separate parts.
Lifting column: 12,6 kg / 71x40x15 cm
Wall bracket for the lower part: 0.72 kg / 13.7x9.5x13.0 cm
Wall bracket to the top: 0.52 kg / 13.5x5.1x13.5 cm
Weight: 14 kg
1 Lifting column
1 Wall bracket, top
1 Top frame
1 Control box
1 Simple hand control
1 Power cord
1 Cable clip
9 Allen screw UM6x10
4 Allen screw UM6x20
9 Wood screw K5x16
5 Spacer / grommet
