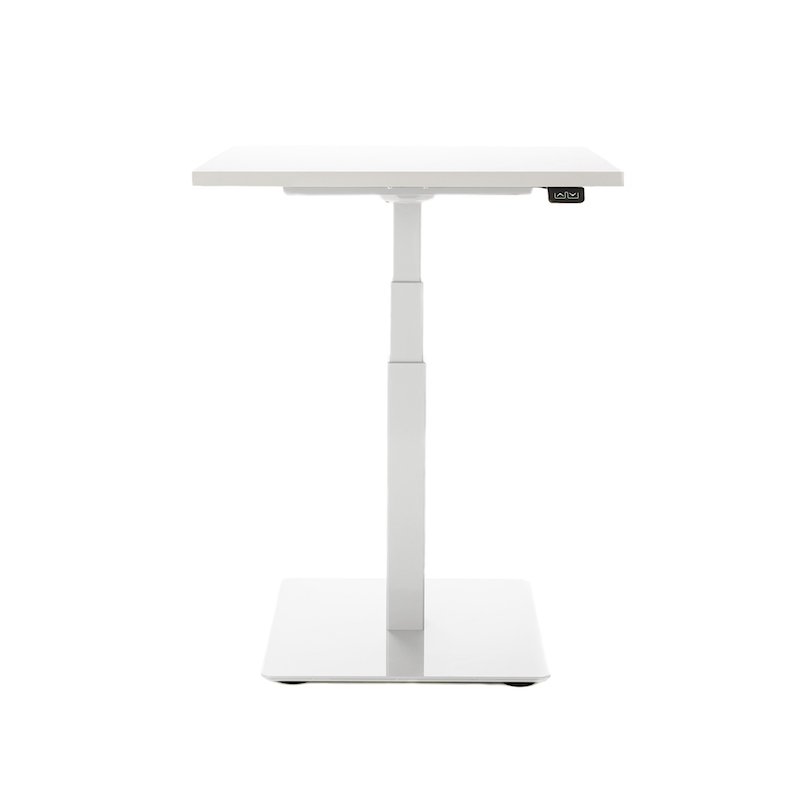

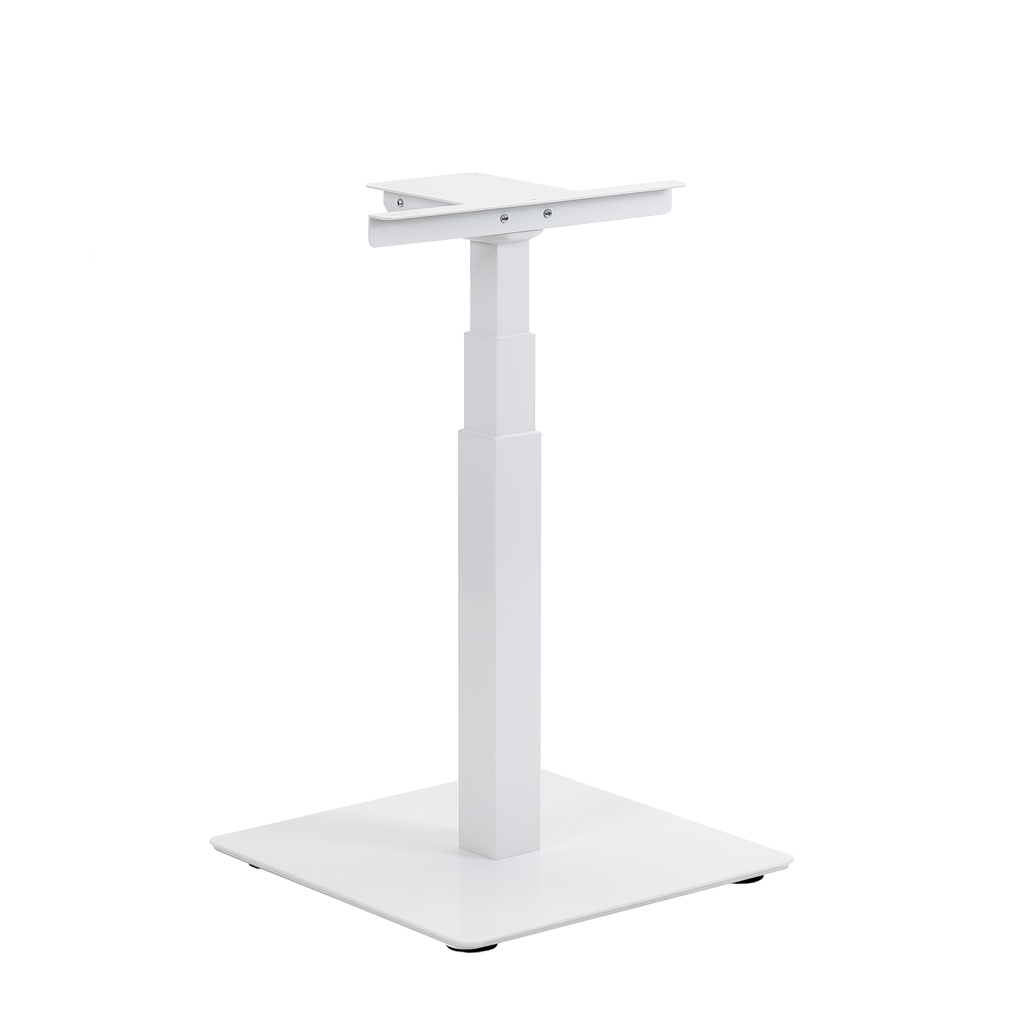

QT 1-Leg Electric Desk Frame
QT is a compact single-leg electric height-adjustable desk frame designed for small spaces where a full-size electric desk may not fit.
The compact square foot part makes the frame a practical choice for home offices and other spaces where efficient use of floor space is important. The frame can be fitted with a 700 × 600 mm tabletop.
The three-stage lifting column provides a wide height adjustment range and smooth electric height adjustment. Furniture castors with brakes are available as an option, making the desk easy to move when needed.
Height adjustment range: 585–1235 mm
Warranty: 5 years
Specifications
| Color | White or Grey or Black |
Features
- Compact single-leg design for small workspaces
- Three-stage lifting column
- Smooth electric height adjustment
- Compact square foot part
- Suitable for 700 × 600 mm tabletops
- Handset with integrated control box
- Optional furniture castors with brakes
- Suitable for home offices and compact workspaces
Technical information
- Height adjustment range: 585–1235 mm
- Stroke: 650 mm
- Speed: 40 mm/s
- Lift capacity: 80 kg
- Square foot part: 500 × 500 × 25 mm
- Recommended tabletop size: 700 × 600 mm
- Colors: White (RAL 9016), grey (RAL 7045), black (RAL 9005)
- Handset with integrated control box: JCB35M1
Package
- The product is delivered in two packages
- Foot part: 20 kg / 58 x 58 x 8 cm
- Lifting column: 12.6 kg / 71 x 40 x 15 cm
- Total weight: 32.6 kg
List of parts
- 1 x Lifting column JS36DS1-3-S
- 1 x Hand controller with integrated control box JCB35M1
- 1 x Two-pin power cord
- 1 x Foot part
- 1 x Connecting cable 1 m
- 1 x Upper frame 440 x 230 x 160 mm
- 1 x Cable clip
- 4 x Leveling glides
- 5 x Intermediate sleeve
- 9 x Wood screw K5x16
- 6 x Allen screw KM6x10
- 4 x Allen screw UM6x20
