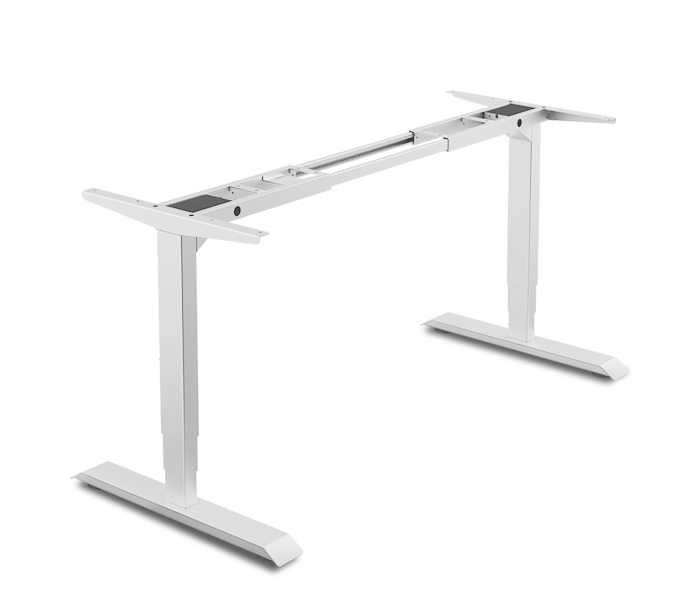

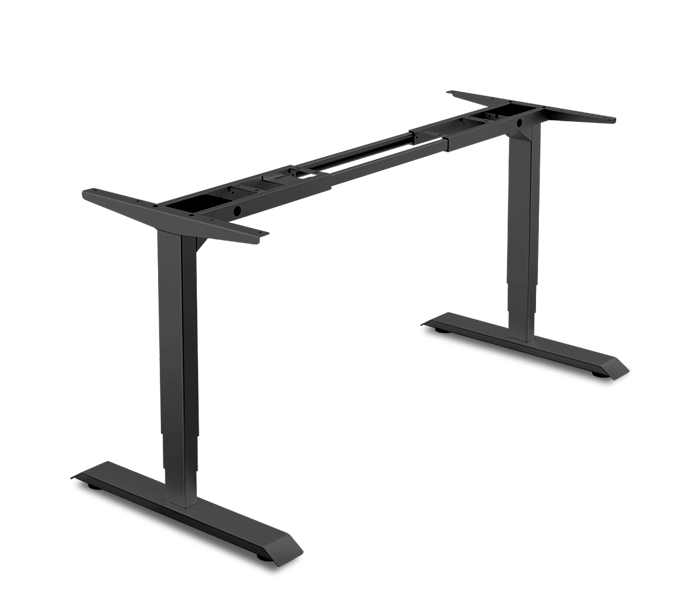

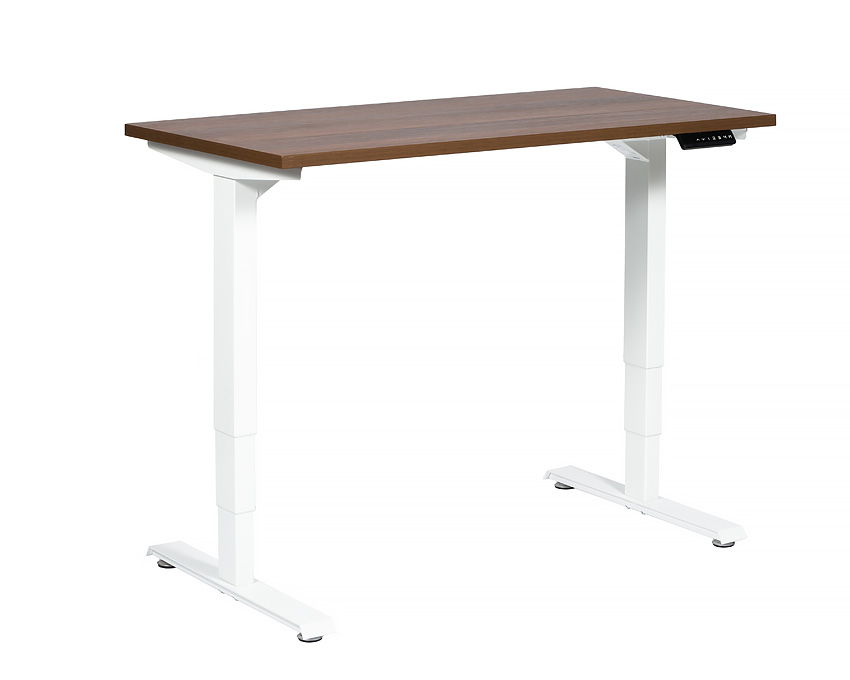

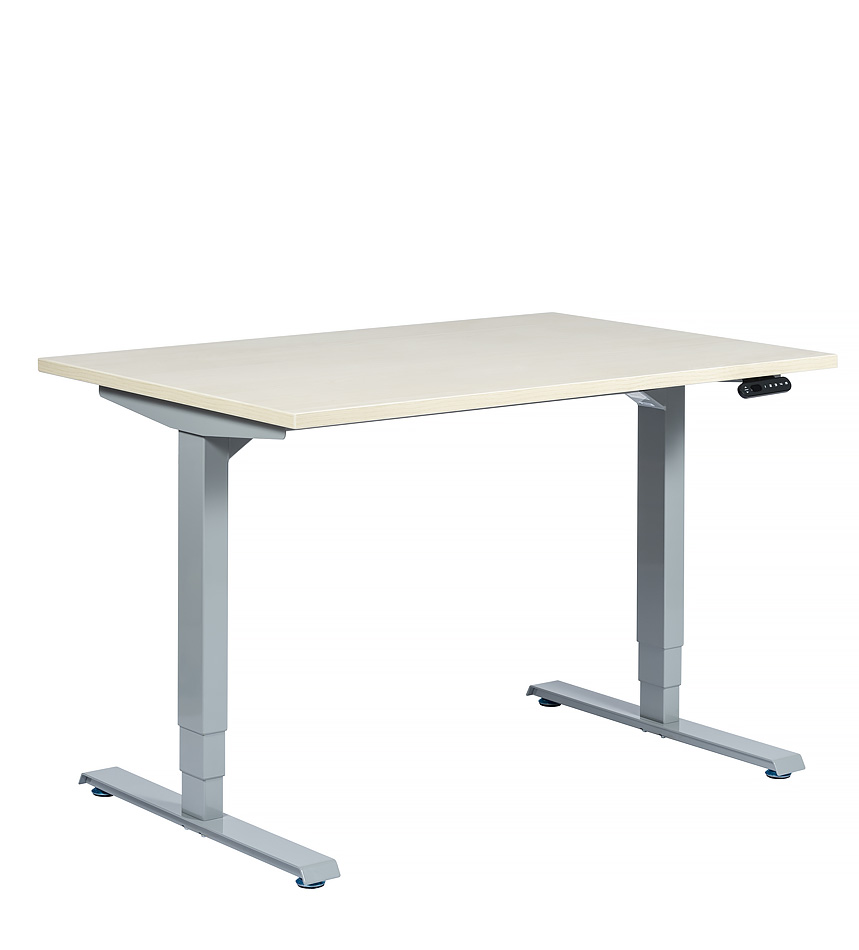

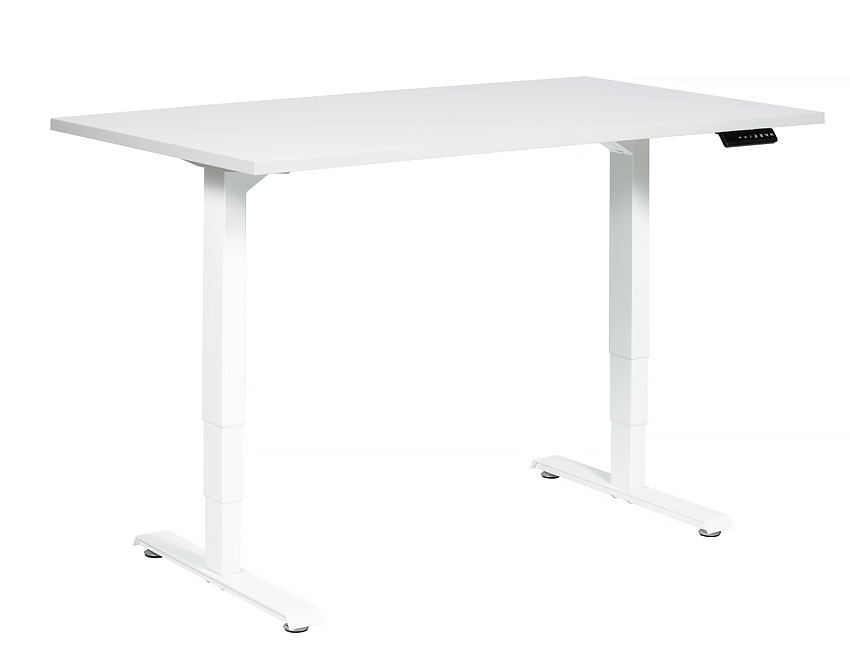

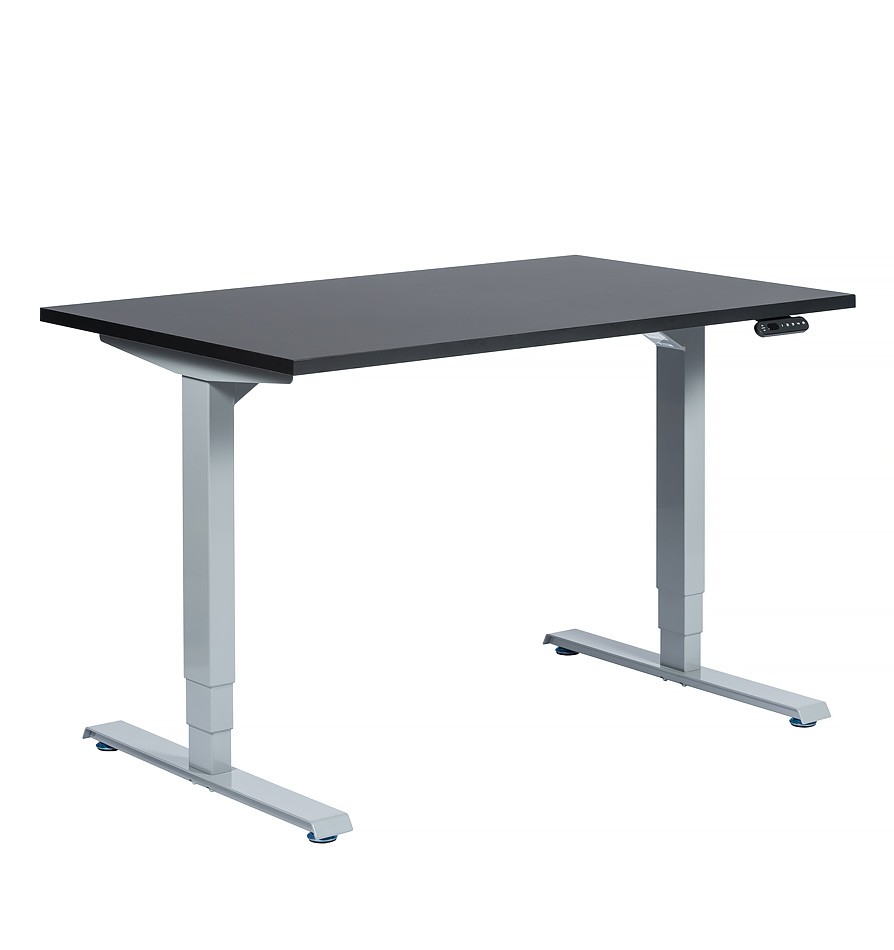

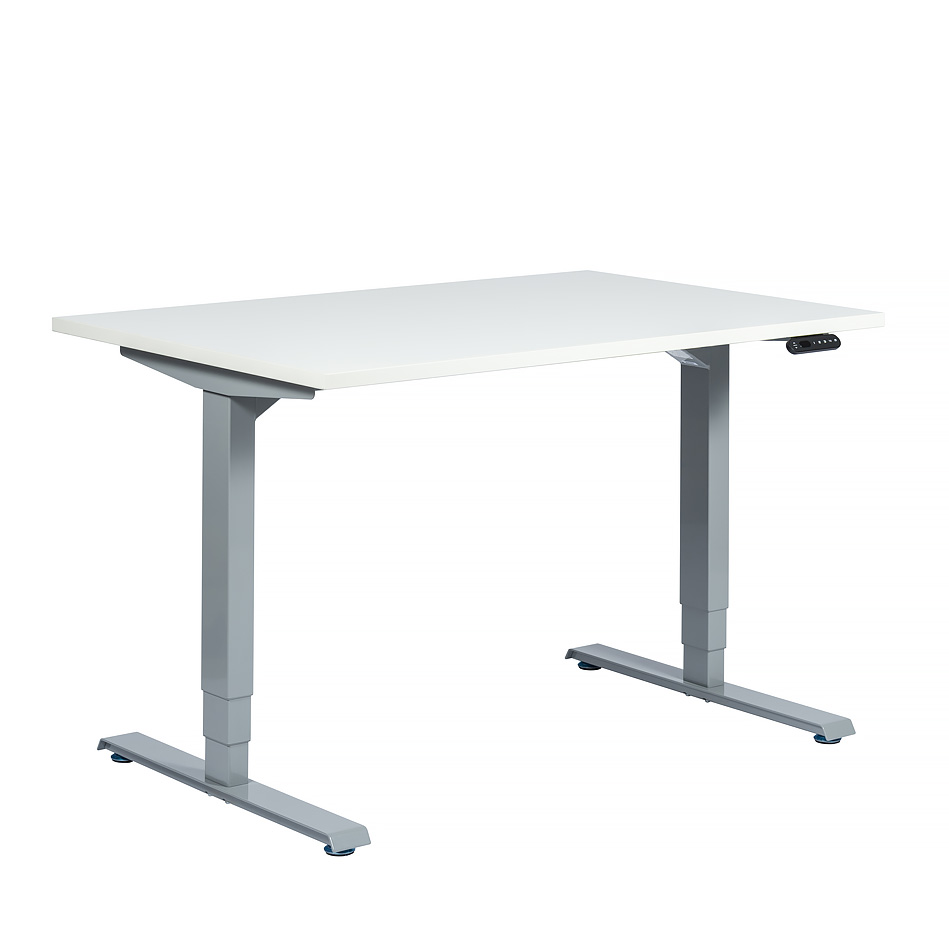

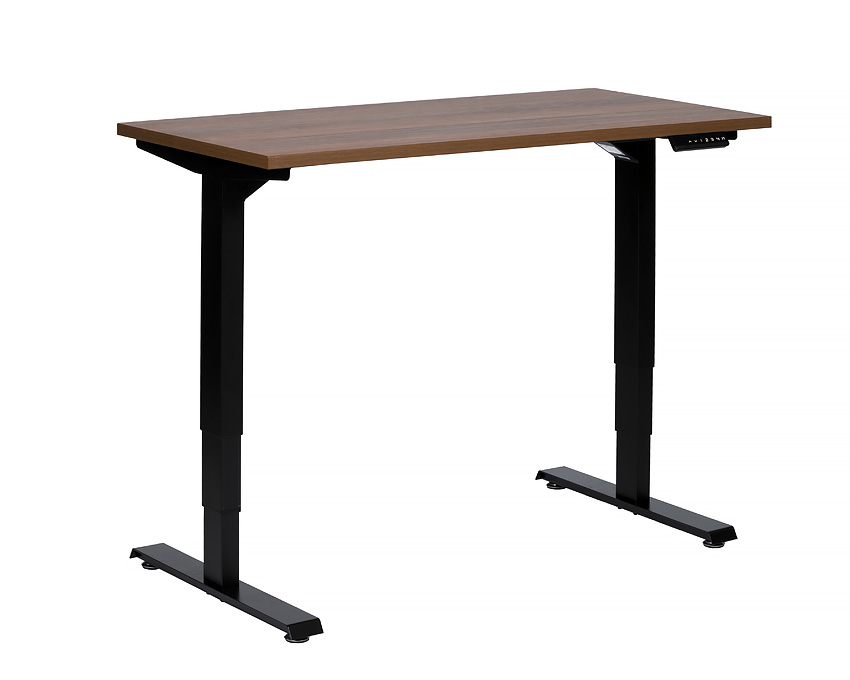

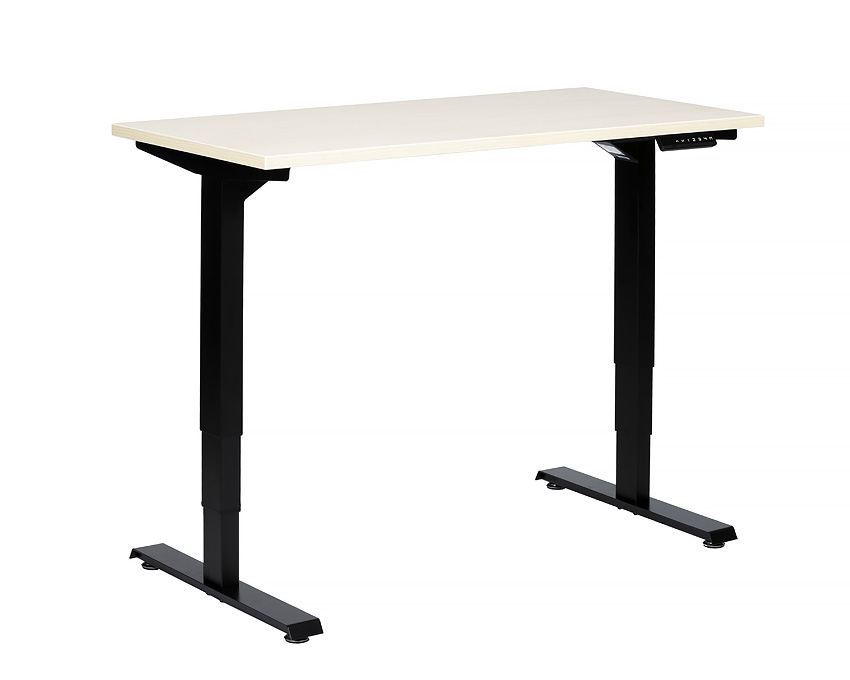

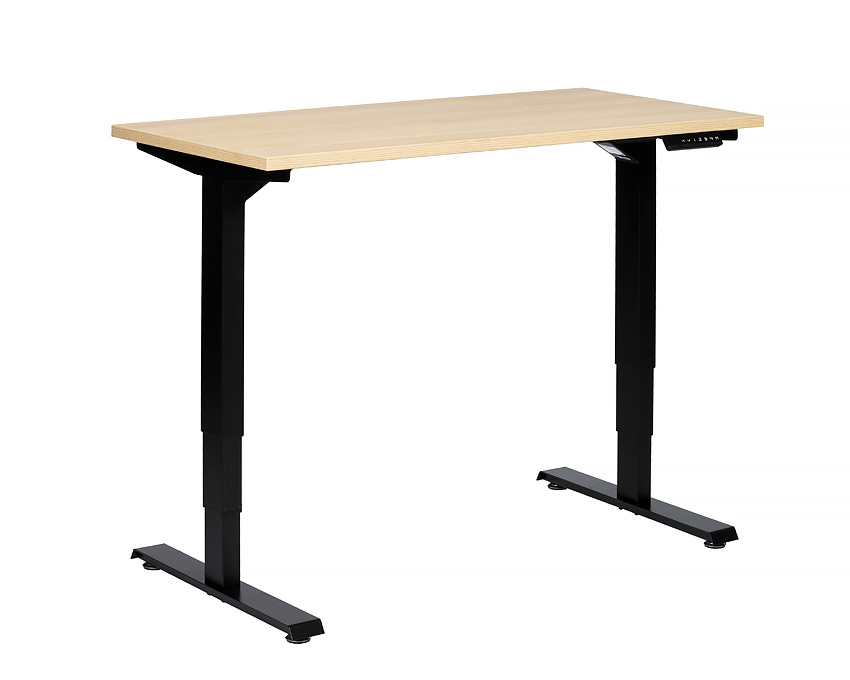

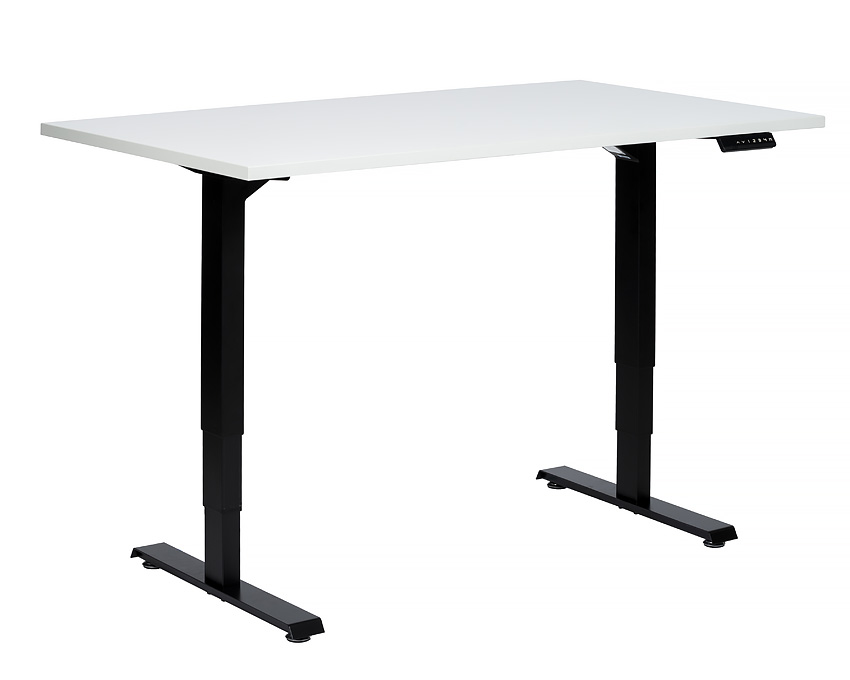

Adjustable electric frame JC35TS-RS3

Features

• Powder-coated steel frame

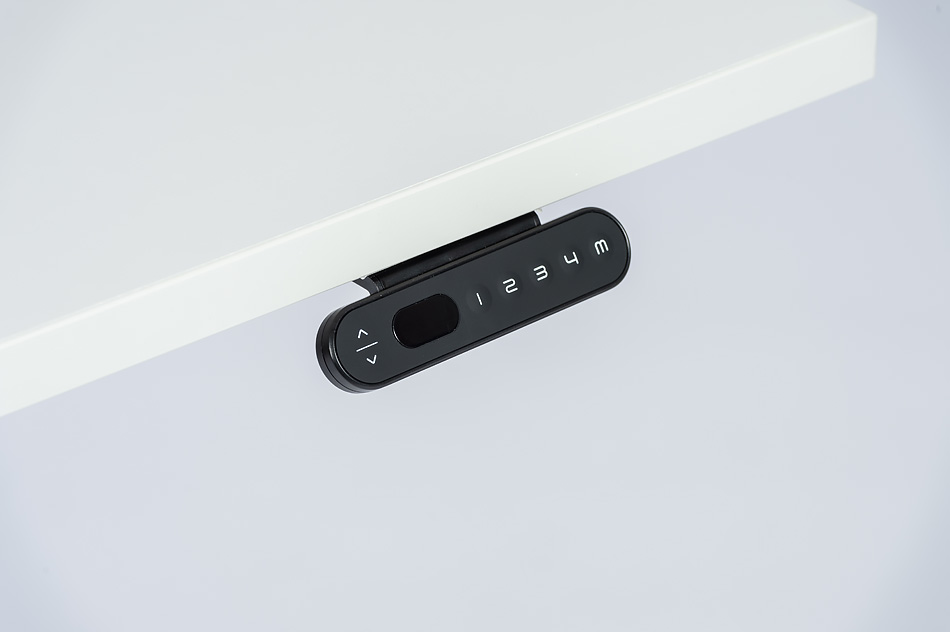

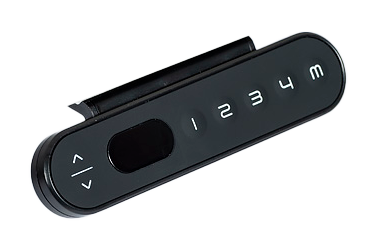

• Modern control panel with digital display
• Four programmable memory presets
• Anti-collision protection
• Modular design, compatible with add-on parts (3rd leg, corner bend set, casters)
• Suitable for home offices and professional use

Technical Information

• Number of motors: 2

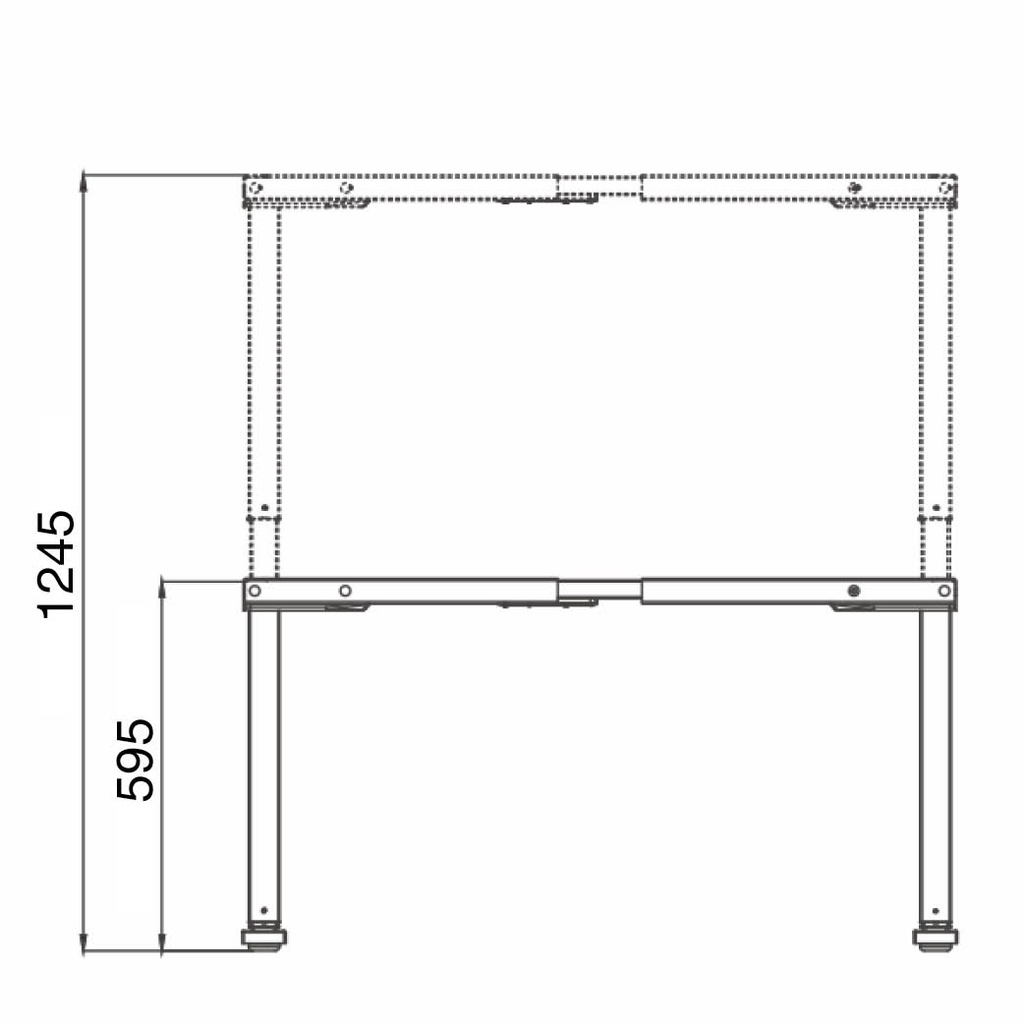

• Height adjustment range: 600–1250 mm

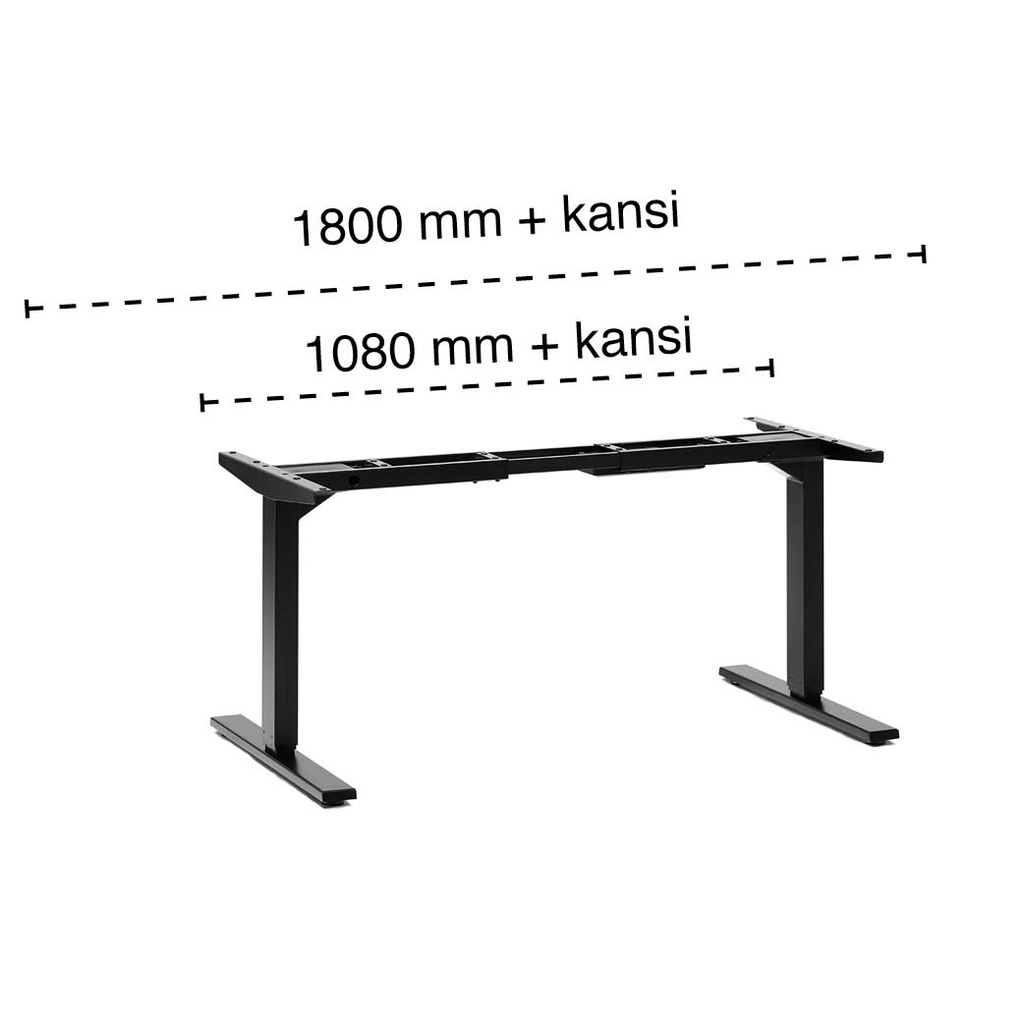

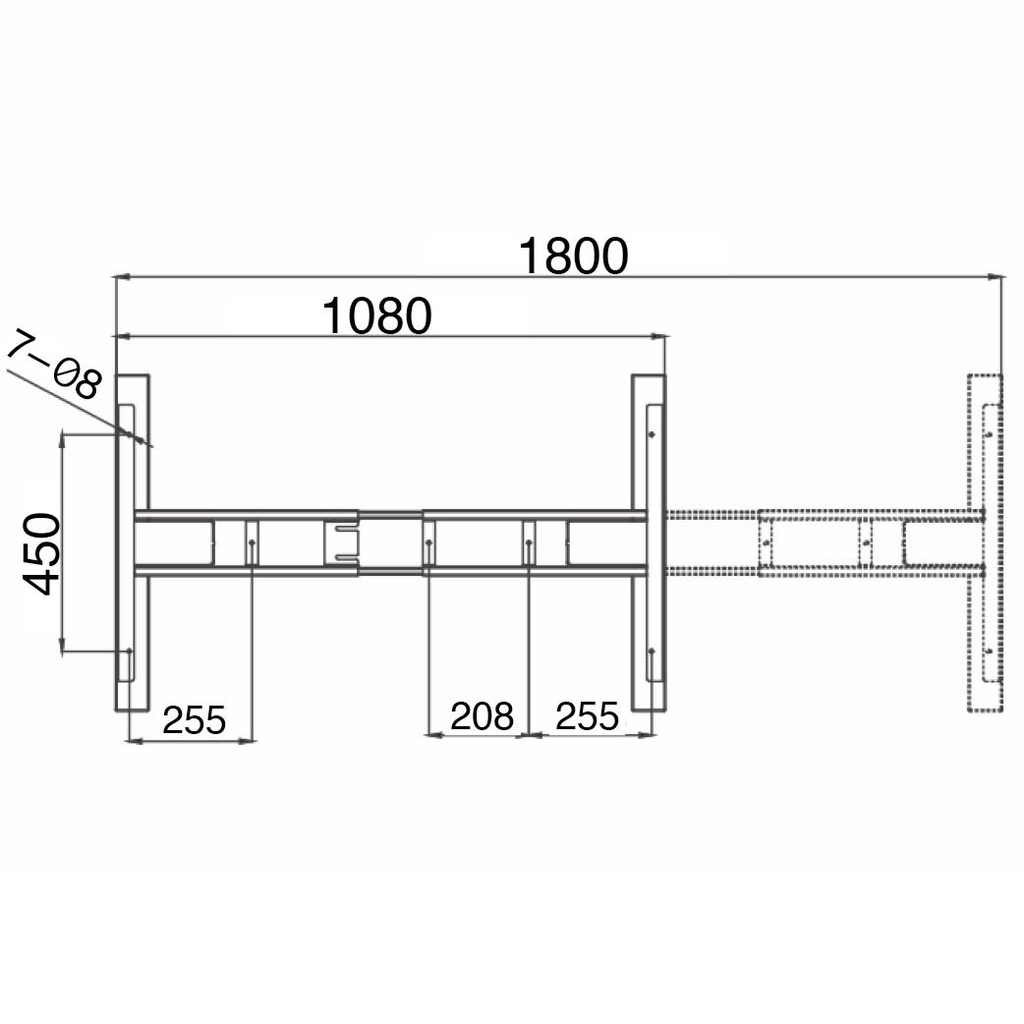

• Width adjustment range: 1007–1800 mm
• Recommended tabletop width: 1100–2000 mm
• Recommended tabletop depth: 700–1000 mm

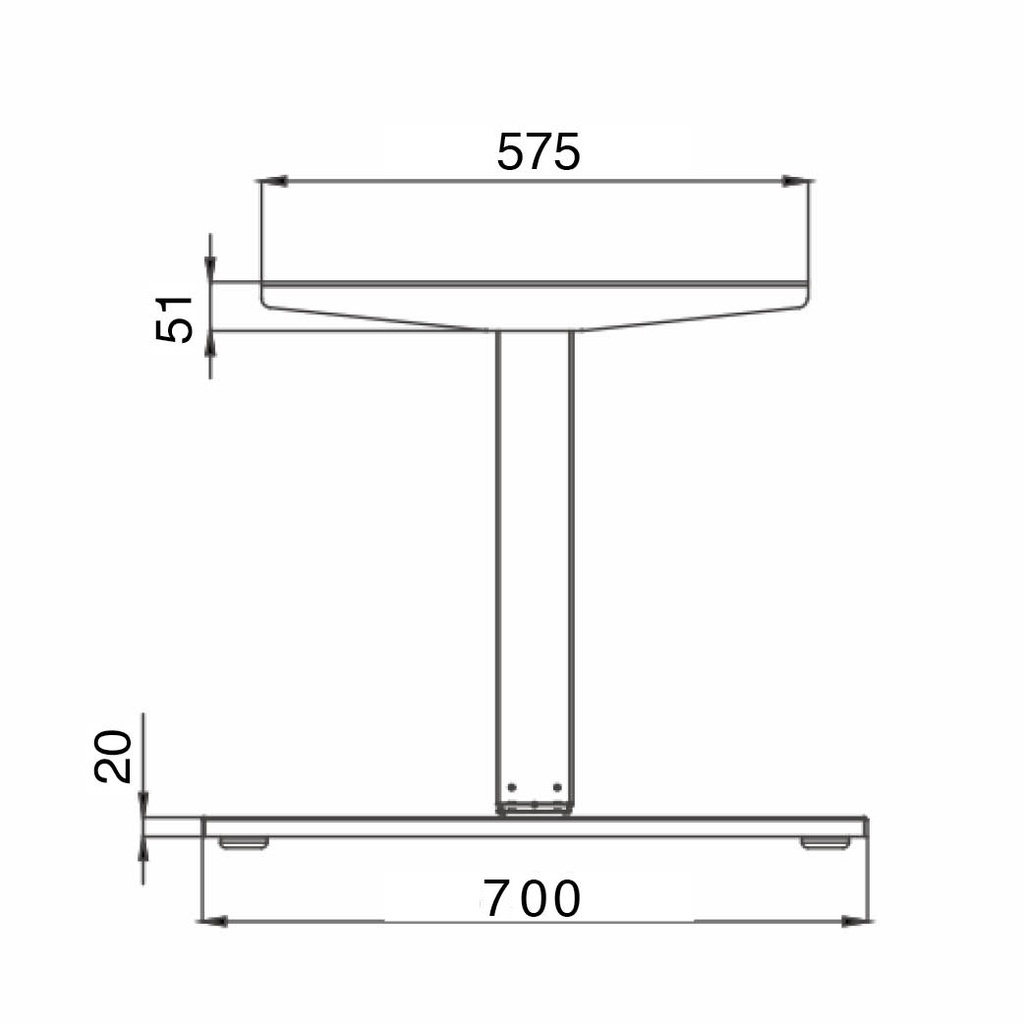

• Foot part: 700 mm (alternative sizes: 400, 600, 900 mm)
• Side bracket: 575 mm (alternative sizes: 320, 900 mm)
• Stroke: 650 mm
• Lift capacity: 150 kg
• Speed: 40 mm/s
• Noise level: 50 dB

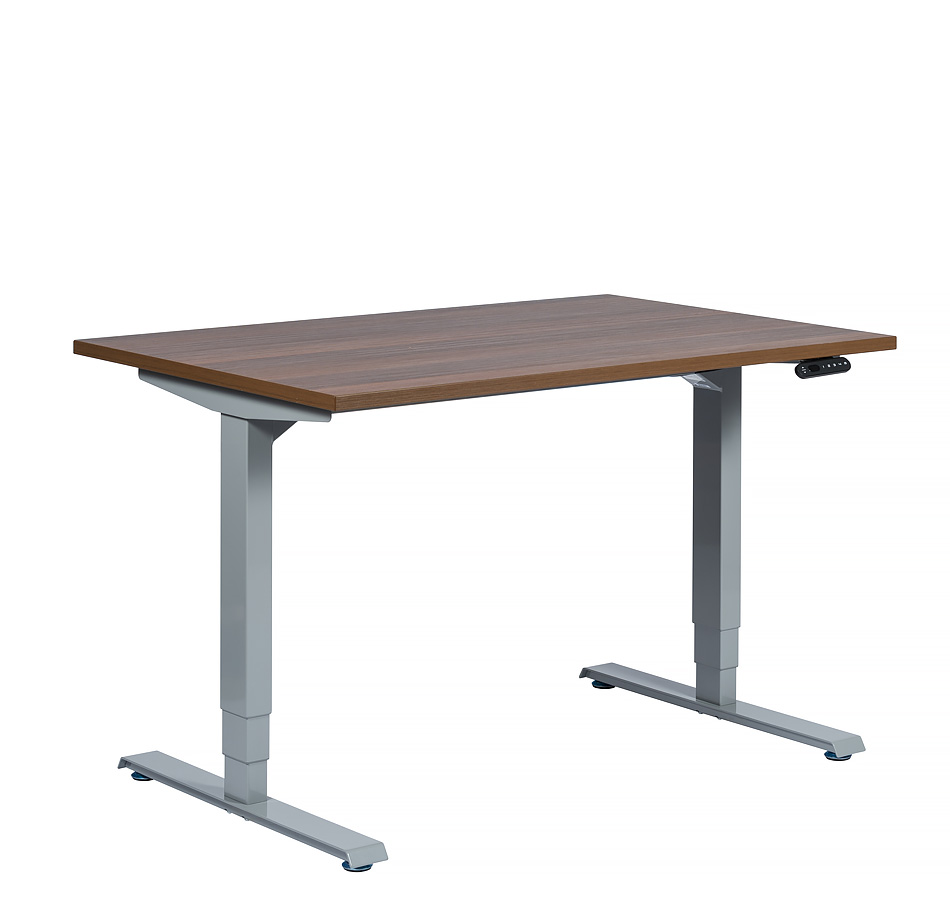

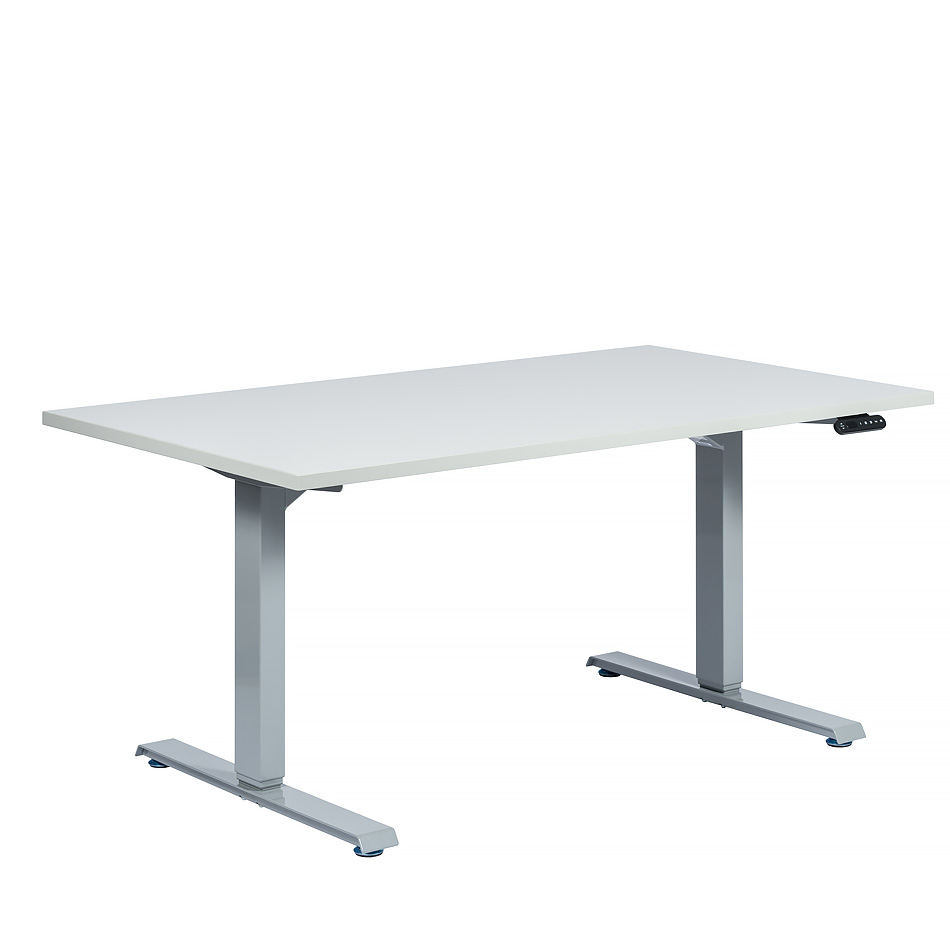

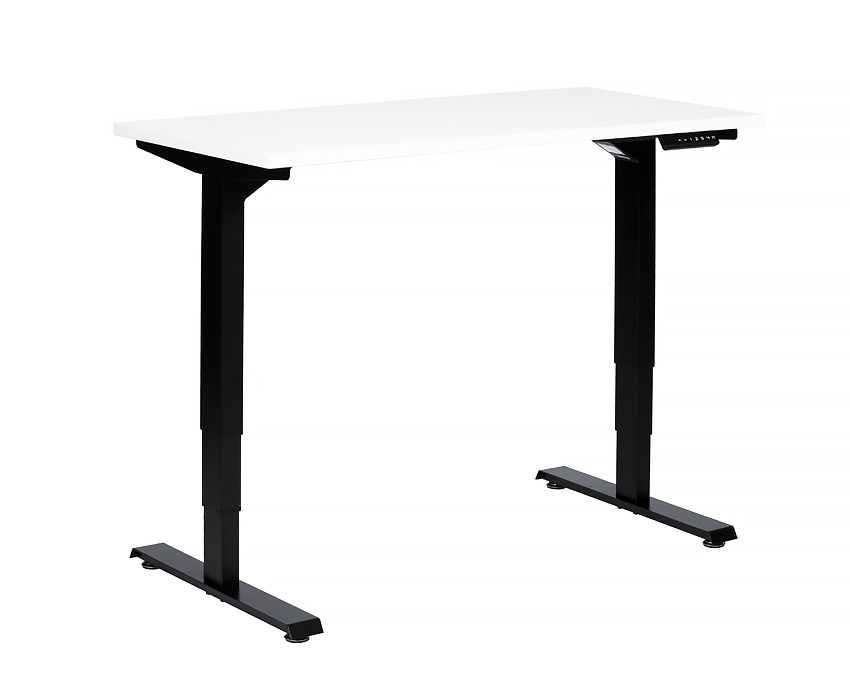

• Color: Black (RAL9005), White (RAL9016), Grey (RAL7045)
• Handset: JCHT35K55C
• Control box: JCB362NEP
• Warranty: 5 years

Package dimensions

• Package size: 106 x 23 x 20 cm / 29 kg

List of parts:

• 16 x Allen screw M6x10 mm
• 4 x Allen screw M6x14 mm
• 8 x Allen screw M6x35 mm
• 2 x Wood screw K5x16 mm
• 7 x Wood screw K5x20 mm
• 2 x Lifting column
• 2 x Foot part 700 mm
• 1 x Upper frame (includes control box)
• 1 x Upper frame
• 2 x Intermediate pipe
• 2 x Side bracket 575 mm
• 1 x Handset (4 memory slots)
• 1 x Power cord
• 1 x Connecting cable
• 10 x Cable clip

Assembly:

https://youtu.be/kCAyUXCWA1E

Troubleshoot:

https://youtu.be/-mtClVVOejw
