Adjustable crank frame JSSY-S22S

Adjustable crank frame JSSY-S22S

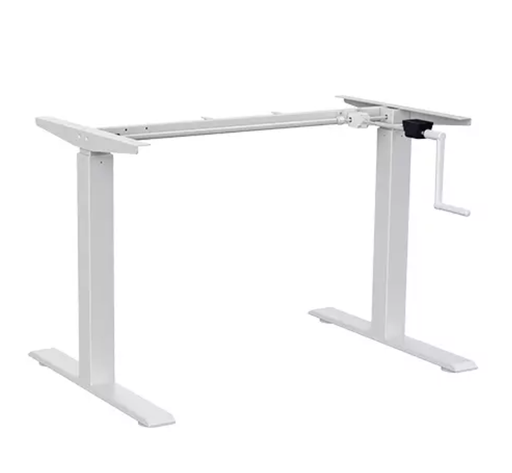

JSSY-S22S is a manually operated table frame with height adjustment by hand crank. The frame suits offices and homes, especially spaces where the table needs to be moved or where an electric table is not wanted. The crank handle folds under the tabletop when not in use, and the frame has a self-locking mechanism.

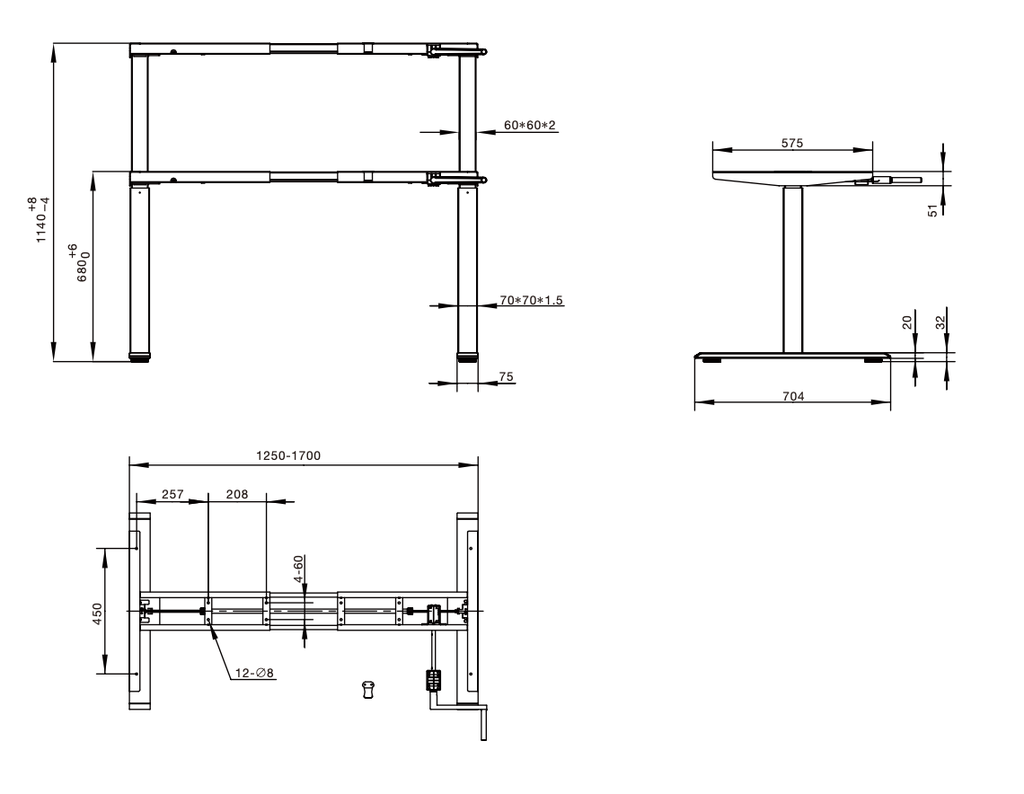

The height adjustment range is 680–1140 mm, and each turn of the crank raises or lowers the table by 16 mm, with or without load. The frame width adjusts from 1250 to 1700 mm and fits tabletops 1300–1800 mm long and 700–800 mm deep. The foot parts have M8 threads for fitting castors. The tabletop is not included.
