Adjustable electric frame JC35TS-RS3

Features

• Powder-coated steel frame
• Height: 595 - 1245 mm
• Width: 1100 - 1800 mm
• Stroke: 650 mm
• Lift capacity: 150 kg
• Speed: 40 mm/s
• Noise: 50 db
• Color: Black (RAL9005), White (RAL90016), Grey (RAL7045)

Assembly:

https://youtu.be/kCAyUXCWA1E

Troubleshoot:

https://youtu.be/-mtClVVOejw

Package dimensions

• Package size: 106 x 23 x 20 cm / 29 kg

List of parts:

• 16 x Allen screw M6x10 mm
• 4 x Allen screw M6x14 mm
• 8 x Allen screw M6x35 mm
• 2 x Wood screw K5x16 mm
• 7 x Wood screw K5x20 mm
• 2 x Lifting column
• 2 x Foot part 700 mm
• 1 x Upper frame (includes control box)
• 1 x Upper frame
• 2 x Intermediate pipe
• 2 x Side bracket 575 mm
• 1 x Handset (4 memory slots)
• 1 x Power cord
• 1 x Connecting cable
• 10 x Cable clip

Extras (sold separately):

• Battery

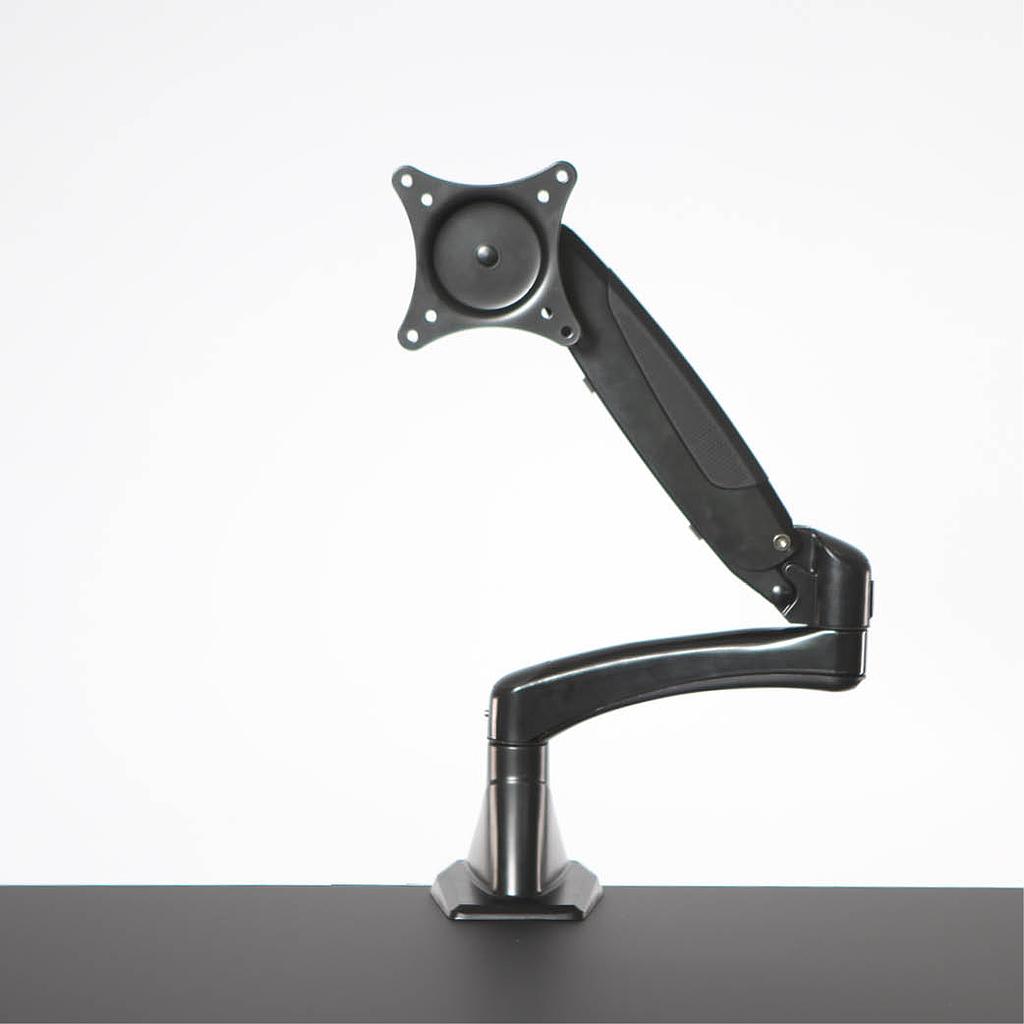

• Monitor arm
• Laptop holder

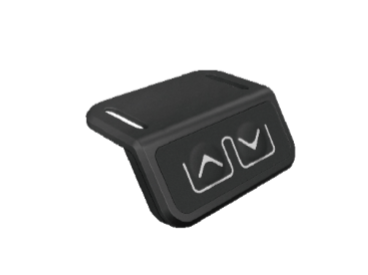

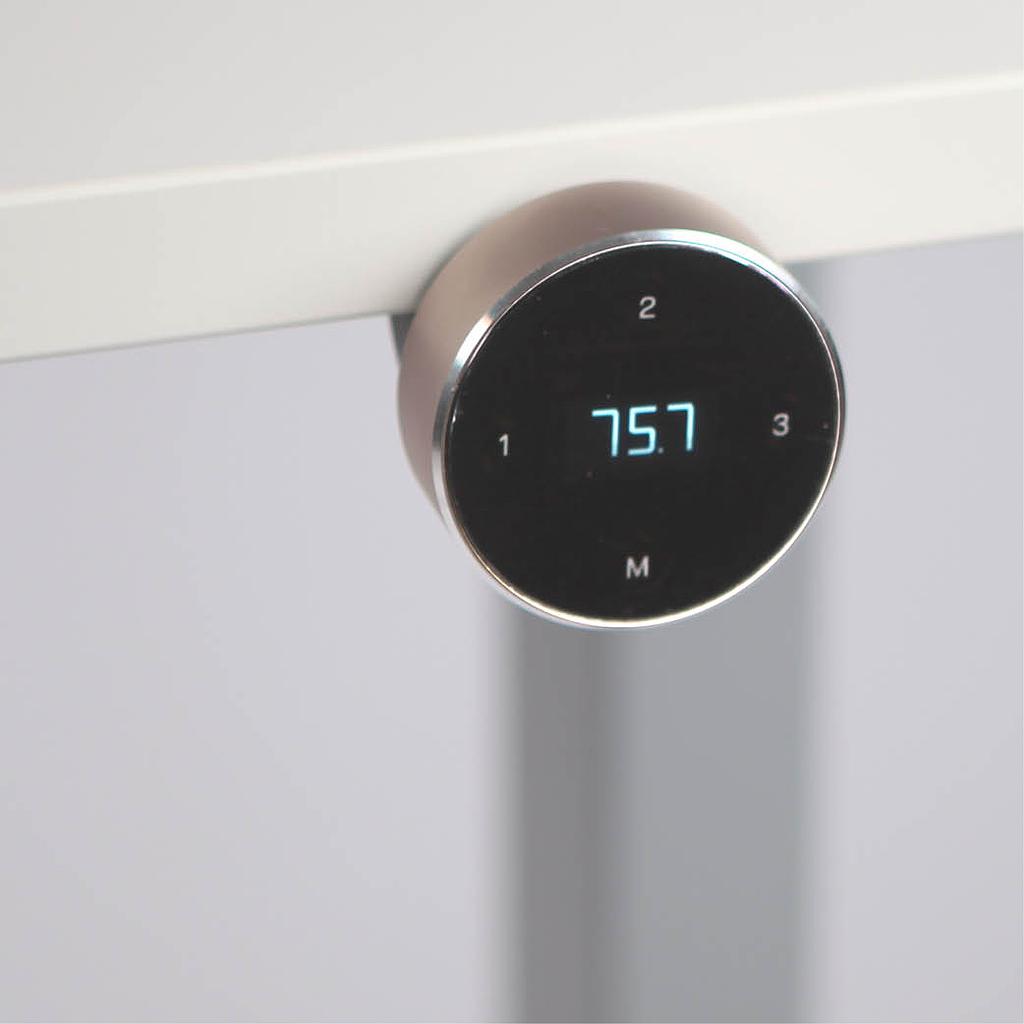

• All handsets
• Cable tray
• Cable rack
• Cable snake
• Cable hide
• USB-HUB
• Grommet
• Wheels
• Side bracket / Foot part 400mm/600mm/900mm
• 1500 mm intermediate pipe
• Bend pipe set (corner table top)
• Upgrade kit (3. leg)
• Bluetooth Dongle (Ai-Desk App)

Standard foot part 700 mm/side bracket 575mm.

Tabletop: 1200–2000 mm / 700–1200 mm

Can be attached:

• Upgrade kit (3. leg)
• Bend pipe set
• Wheels

Foot parts and side brackets can be changed to different size.

Foot parts: 400, 600, 900 mm

Side brackets: 320, 900 mm

Control box: JCB362NEP
