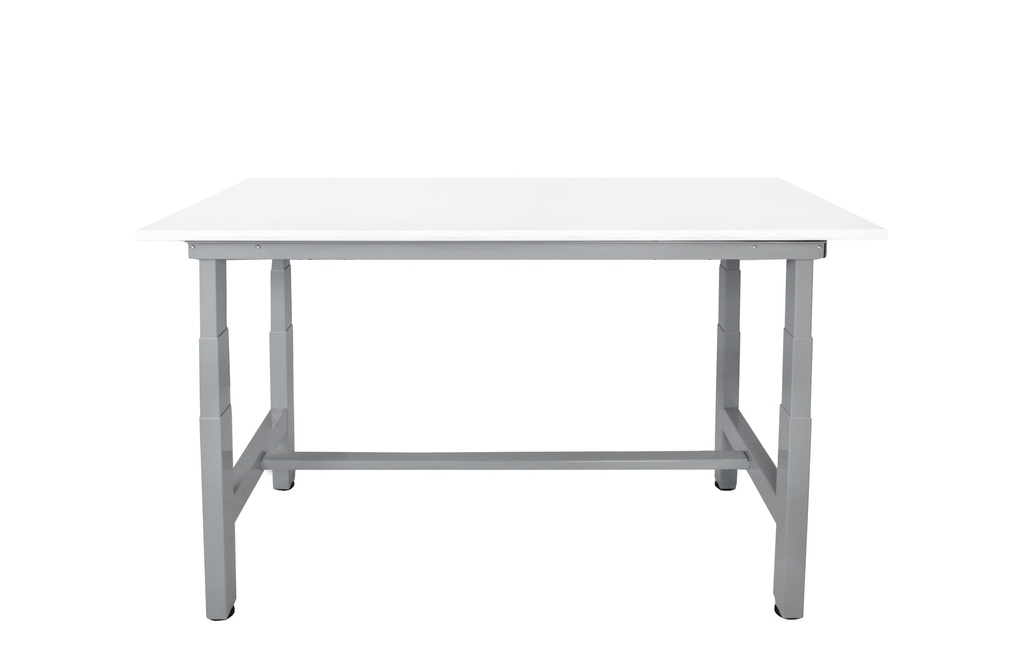

Strong4

Features

• Four motors: One motor in each lifting column, with a lift capacity of 250 kg.
• 4-leg design: Four support points for improved stability and load bearing.
• Sturdy frame: Powder-coated frame with edge supports on all sides and additional bracing in the middle.
• Linkable frames: Two frames can be linked together and operated simultaneously.
• Handset: Display and memory slots.
• Anti-collision protection: Gyroscope sensor with adjustable sensitivity.
• Furniture castors can be added to the frame.
• Warranty: 5 years

Technical information

• Height adjustment range: 620–1270 mm
• Stroke: 650 mm
• Height adjustment speed: 23 mm/s
• Frame width: 1460 mm (fixed)
• Width at feet: 1377 mm
• Frame depth: 756 mm
• Suitable tabletop length: 1500–1600 mm
• Suitable tabletop depth: 800 mm
• Foot part: column support in each corner
• Side bracket: edge support on all sides, with bracing in the middle
• Lifting columns: 4, rectangular, 80 x 50 mm
• Lift capacity: 250 kg
• Motors: 4
• Anti-collision protection: gyroscope sensor, adjustable sensitivity
• Noise level: <50 dB
• Handset: display, memory slots
• Power consumption: 400 W
• Duty cycle: 10% (max. 2 min of use followed by an 18 min break)
• Colour: grey
• Operating environment: indoor use only

Package

• The product is delivered in two packages.
• Package 1: 30 x 17 x 147 cm, 30 kg
• Package 2: 27 x 90 x 20 cm, 22 kg
• Total weight: 52 kg

List of parts:

• 2 x Lifting column (right)
• 2 x Lifting column (left)
• 2 x Side bracket
• 2 x Head side bracket
• 2 x Upper frame bracket
• 1 x Middle bracket
• 2 x Foot middle bracket
• 1 x Control box
• 1 x Handset
• 1 x Power cord
• 1 x Connecting cable
• 10 x Cable clip
• 24 x Allen screw KM6x10
• 8 x Allen screw KM8x8
• 2 x Wood screw K5x16
• 23 x Wood screw K5x20
