Line lifting column JS36ZS8-3-S (black)

Name: Line lifting column JS36ZS8-3-S (black)
Price: 220.0 EUR
Availability: InStock

Category: Tõstepostid

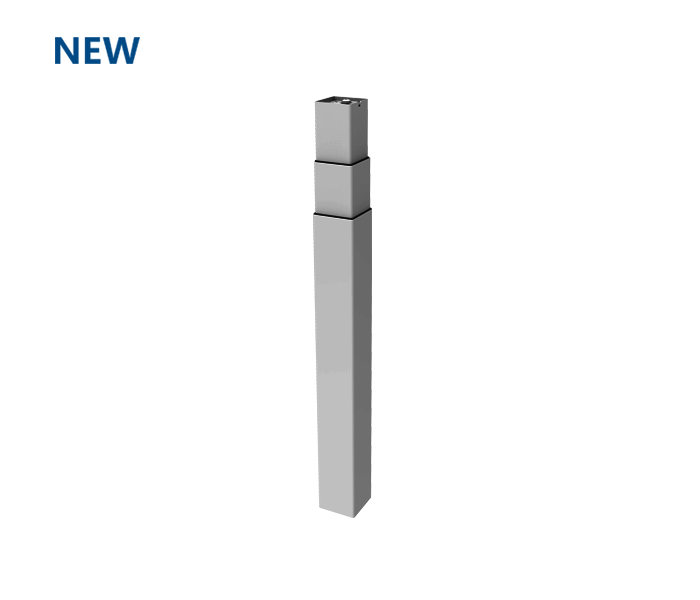

Elegantly designed 3-segment lifting column that has an embedded motor inside the column.

With the Inline lifting column, you can build a one- or two-legged desk into your office, home or corporate environment.

A broad selection of control boxes compatible with the Inline lifting column makes it possible to design versatilely.

Lifting capacity: 800 N
Speed: 40 mm/s
Low noise level: <50dB
Stroke: 650 mm
Bending moment 100 N.m
Stroke: 650 mm
Static load capacity: 1500 N
Dimensions:. 70 / 65 / 60 mm x 70 / 65 / 60 mm x 560 mm - 1210 mm
Color: Black
Duty cycle: 10 %
Max operating time is 2 minutes with full load. After that, the column must rest for 18 minutes.
Storage and transportation temperature: -10°C ~ 70°C

Hall censor enables parallel use of several columns.

Compatible control boxes: JCB36N1, JCB36N2, JCB36N3, JCB36N4, JCB35NS1, JCB35NS2, JCB36M, JCB36M1 ja JCB36MH3

For indoor use only.
