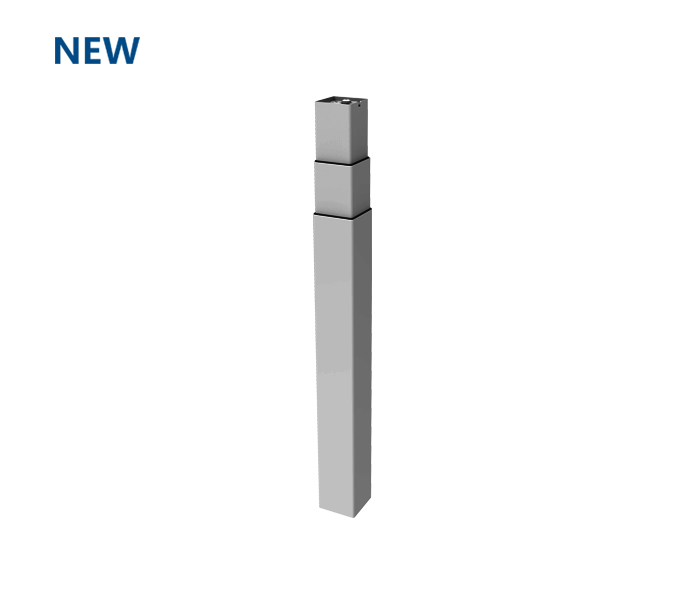

JS36ZS8-3-S is an elegantly designed 3-stage lifting column with the motor built into the column. As there is no separate motor case, the lifting column has a simple appearance and a compact structure.
With the inline lifting column, you can build a 1-leg or 2-leg desk for an office, home or commercial space. A broad selection of compatible control boxes allows versatile design.
The lifting column is for indoor use only.
Features
3-stage lifting column with the motor inside the column.
No separate motor case: simple appearance and compact structure.
Pipes with no holes.
Hall sensor enables parallel drive.
Suitable for offices, homes and commercial spaces.
Indoor use only.
Technical information
Model: JS36ZS8-3-S
Installation height (standard): 560 mm
Stroke (standard): 650 mm
Total length, fully extended: 1210 mm
Lift capacity: 800 N
Self-locking force: 1500 N
Height adjustment speed: 40 mm/s
Bending moment: 100 Nm
Pipe dimensions: 70 x 70 mm, 65 x 65 mm and 60 x 60 mm, wall thickness 1.5 mm
Fastening: M6 and M10 screws
Noise level: ≤50 dB
Duty cycle: 10 % (max. 2 min at full load, then at least 18 min rest)
