Electric wall cabinet lifting system JC37B1

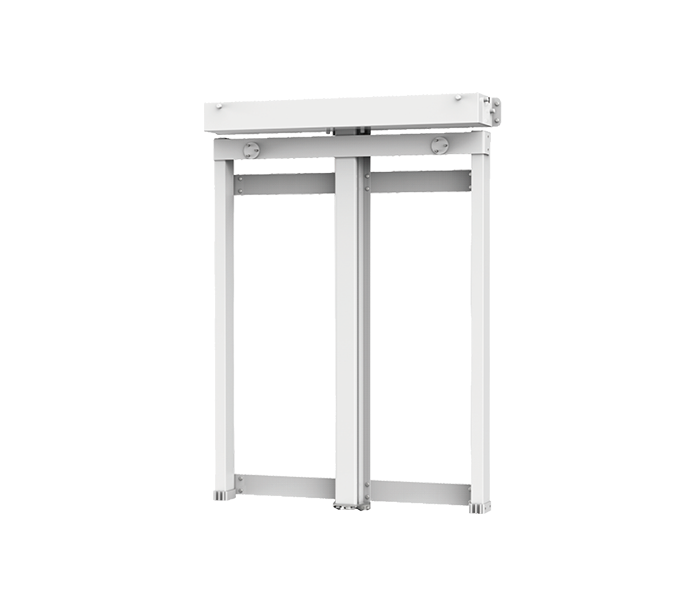

Overhead Cabinet Lift JC37B

Efficient and compact lifting solution for furniture

The JC37B overhead cabinet lift is designed for smooth raising and lowering of upper cabinets and lightweight structures. It improves ergonomics and ease of use in kitchens, offices, and custom furniture solutions.

Its compact design allows easy integration into various applications. The lifting movement is stable and controlled, ensuring a comfortable and safe user experience.

Key Features

Smooth and quiet operation

Compact and easy to install

Suitable for upper cabinets and furniture systems

Ergonomic use

Technical Specifications

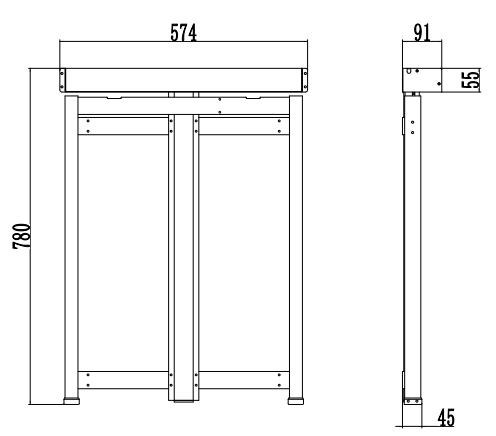

Width: 574 mm

Height: 780 mm

Depth: 91 mm

Load capacity: max. 50 kg

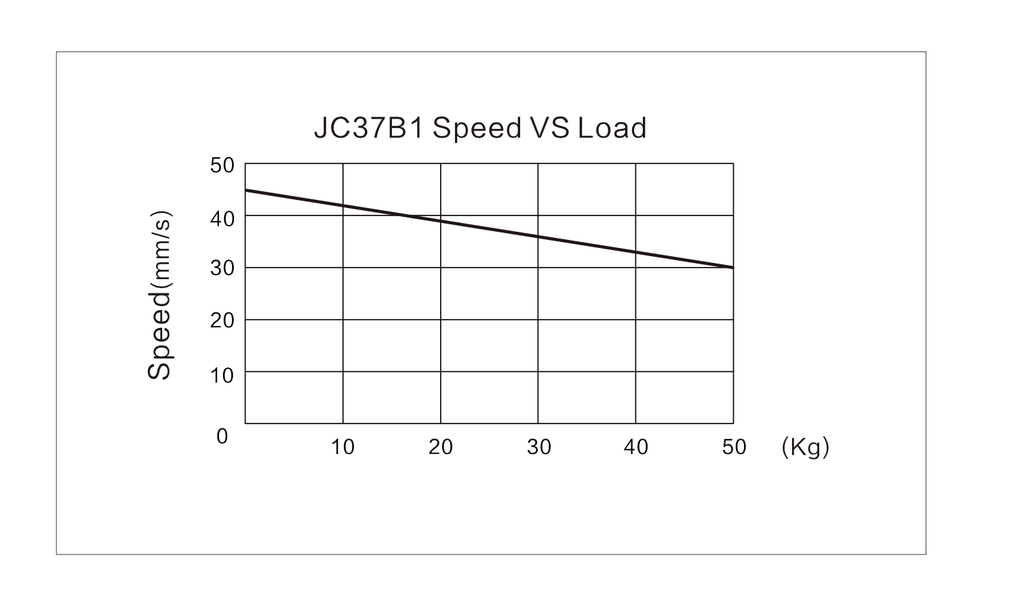

Speed: approx. 30–45 mm/s depending on load

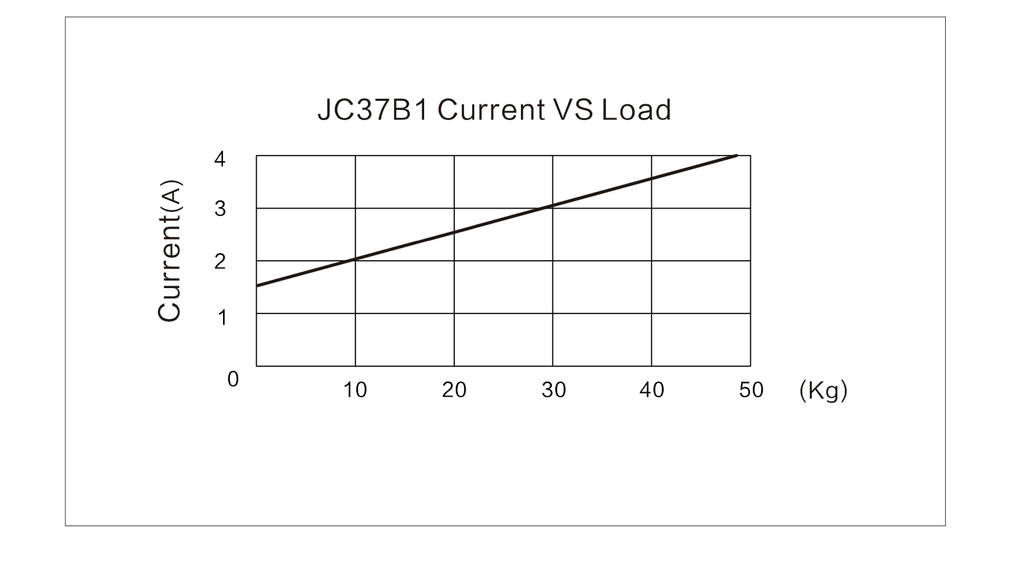

Current: approx. 1.5–4 A depending on load
