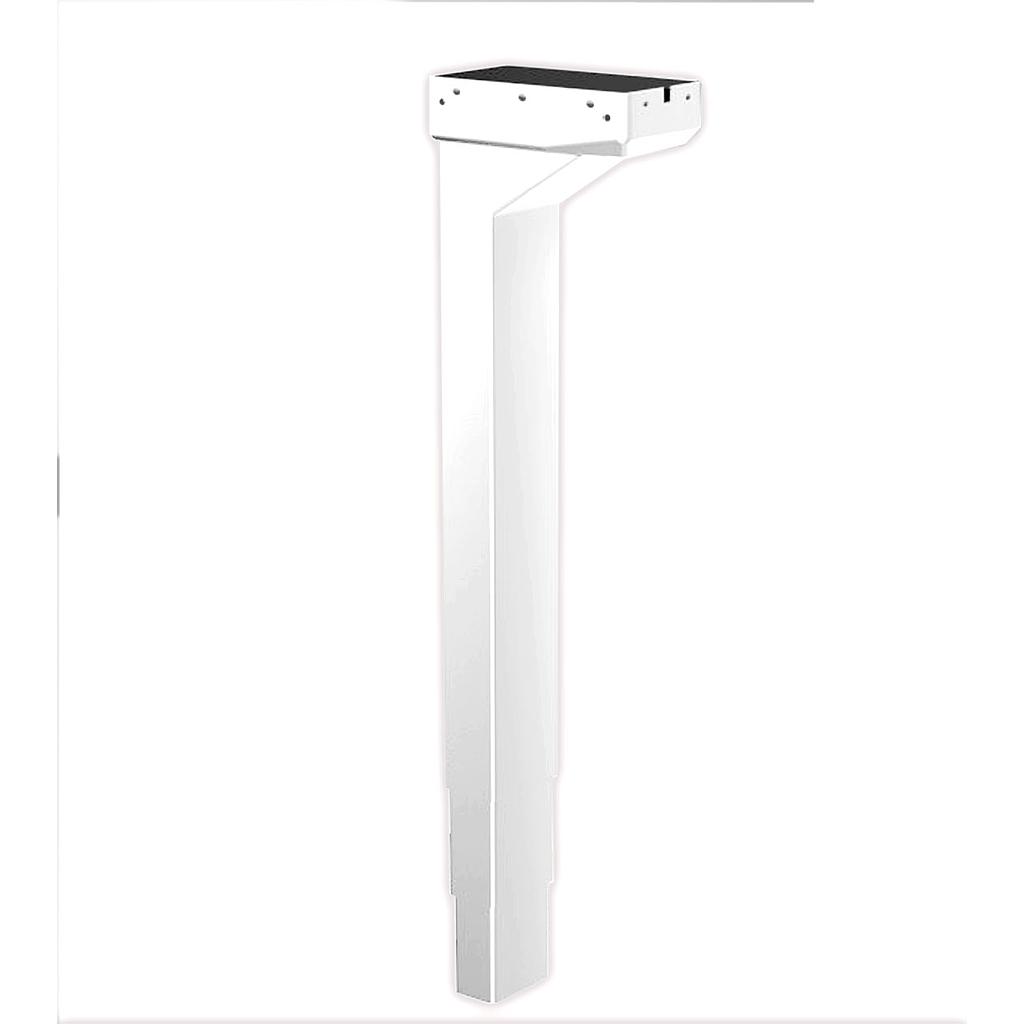

JS36DR1-3-R is a rectangular, 3-stage lifting column with no holes, suitable for various desk installations. Thanks to its 3-stage structure, the lifting column has a short installation height and a long stroke, so it suits users of different heights. The optimized 3 mm motor case structure and triangular support add stability.
JS36DR1-3-R is an inverted lifting column in which the smallest pipe is attached to the foot part. It is intended for desks without a crossbar, which gives freedom in desk design.
The standard colors white, grey and black suit various types of desks. Anti-collision protection minimizes risks and damage if the desk hits an obstacle. In addition, the system’s standby power consumption is very low, less than 0.1 W.
Specifications
Color
White or
Grey or
Black
Features
Rectangular, 3-stage lifting column.
Pipes with no holes.
Short installation height and long stroke.
Inverted structure: the smallest pipe is attached to the foot part.
Triangular support adds stability.
Hall sensor enables parallel drive.
Anti-collision protection.
Low standby power consumption.
Colors: white, grey and black.
Technical information
Model: JS36DR1-3-R
Installation height (standard): 560 mm
Stroke (standard): 650 mm
Total length, fully extended: 1210 mm
Lift capacity: 800 N per lifting column
Self-locking force: 1200 N
Height adjustment speed: 35 mm/s (with JCB35N series control boxes)
Maximum bending moment: 150 Nm
Pipe dimensions: outer pipe 80 x 50 mm, middle pipe 75 x 45 mm, inner pipe 70 x 40 mm
Motor case dimensions: 176 x 96 x 46 mm
Fastening: M6 screws
Noise level: <50 dB
Standby power consumption: <0.1 W
Duty cycle: 10 % (max. 2 min at full load, then at least 18 min rest)
Parallel use: 1–4 lifting columns, up to 12
Compatible control boxes: JCB35N1, JCB35N2, JCB35N3, JCB35N4
Environment: indoors
Approvals: EN 60335-1, UL 962
Surface finish: powder-coated
Colors: white (RAL 9016), grey (RAL 7045), black (RAL 9005)

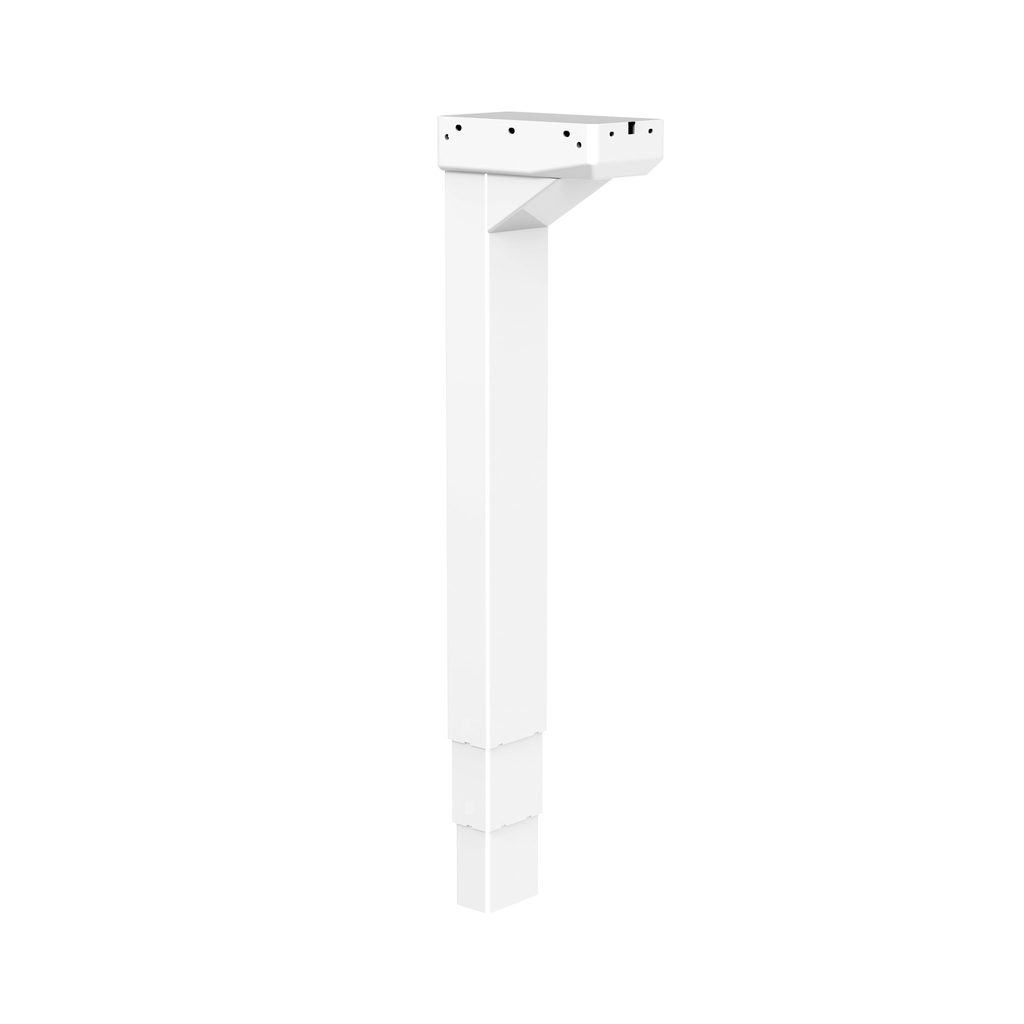

Lifting column 650, JS36DR1-3-R
