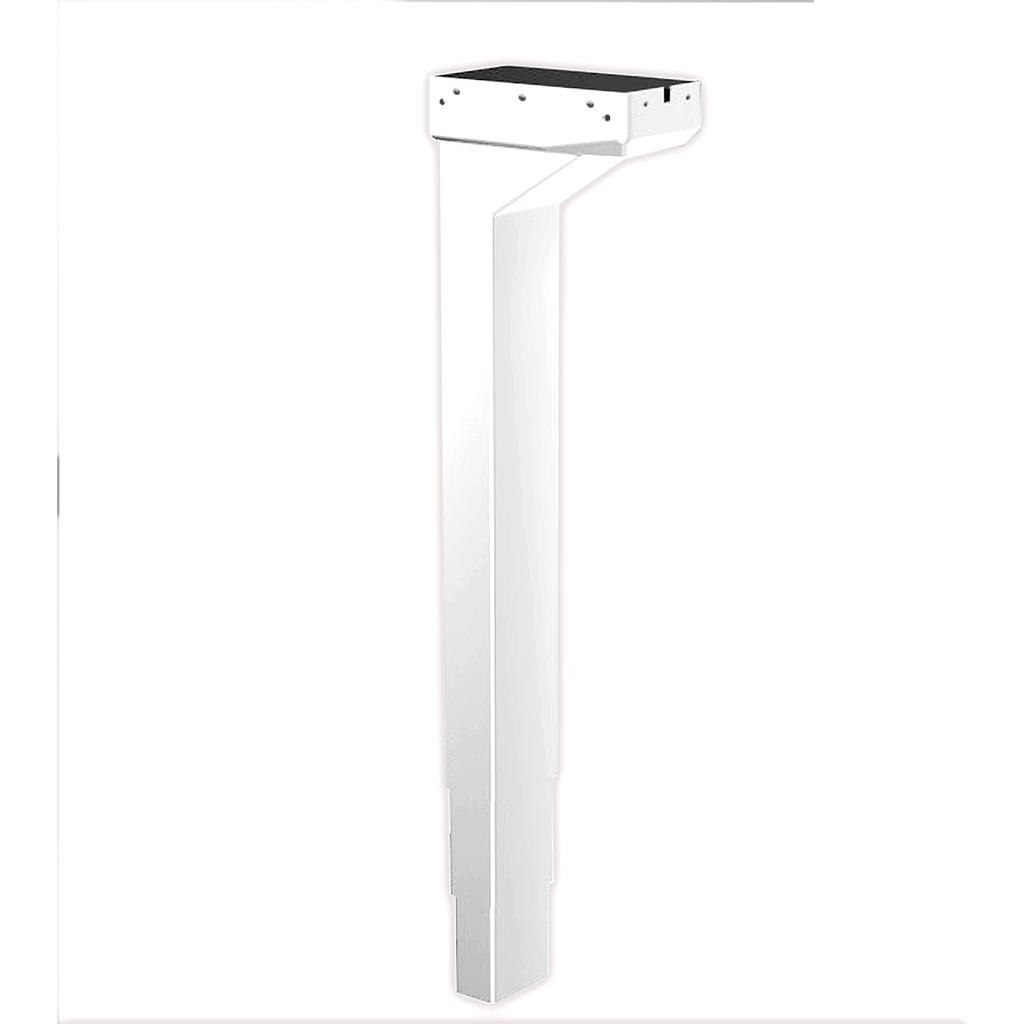

Lifting column 650, JS36DR1-3-R


  • Värv - Valge
Add to cart
Osta kohe
You have already submitted a query for this product today. Lisa soovinimekirja
Tõstepostid
Võta meiega ühendust

Specifications

Värv Valge or Hall or Must
Features
  • Rectangular, 3-stage lifting column.
  • Pipes with no holes.
  • Short installation height and long stroke.
  • Inverted structure: the smallest pipe is attached to the foot part.
  • Triangular support adds stability.
  • Hall sensor enables parallel drive.
  • Anti-collision protection.
  • Low standby power consumption.
  • Colors: white, grey and black.

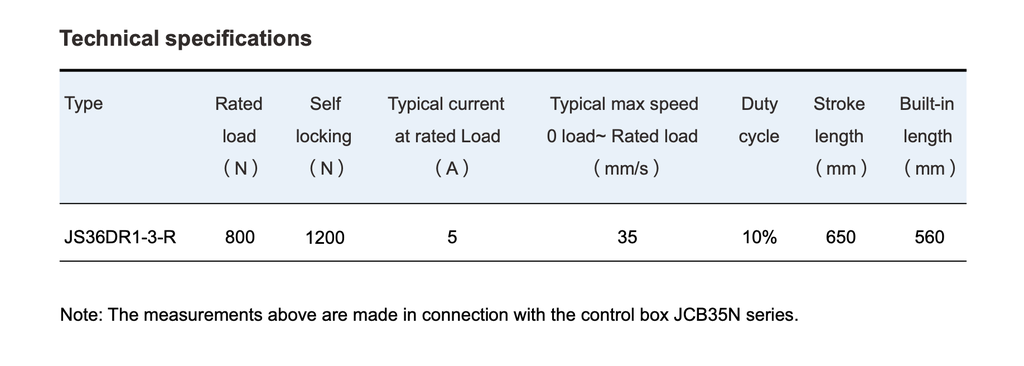

Technical information
  • Model: JS36DR1-3-R

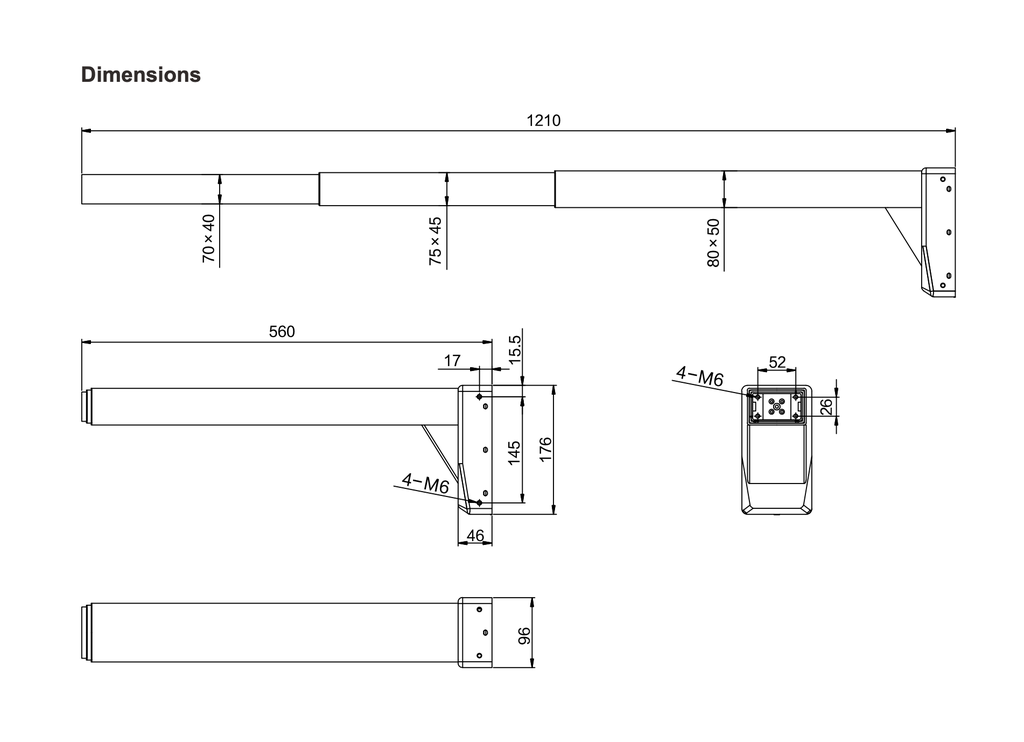

  • Installation height (standard): 560 mm
  • Stroke (standard): 650 mm
  • Total length, fully extended: 1210 mm
  • Lift capacity: 800 N per lifting column
  • Self-locking force: 1200 N
  • Height adjustment speed: 35 mm/s (with JCB35N series control boxes)
  • Maximum bending moment: 150 Nm

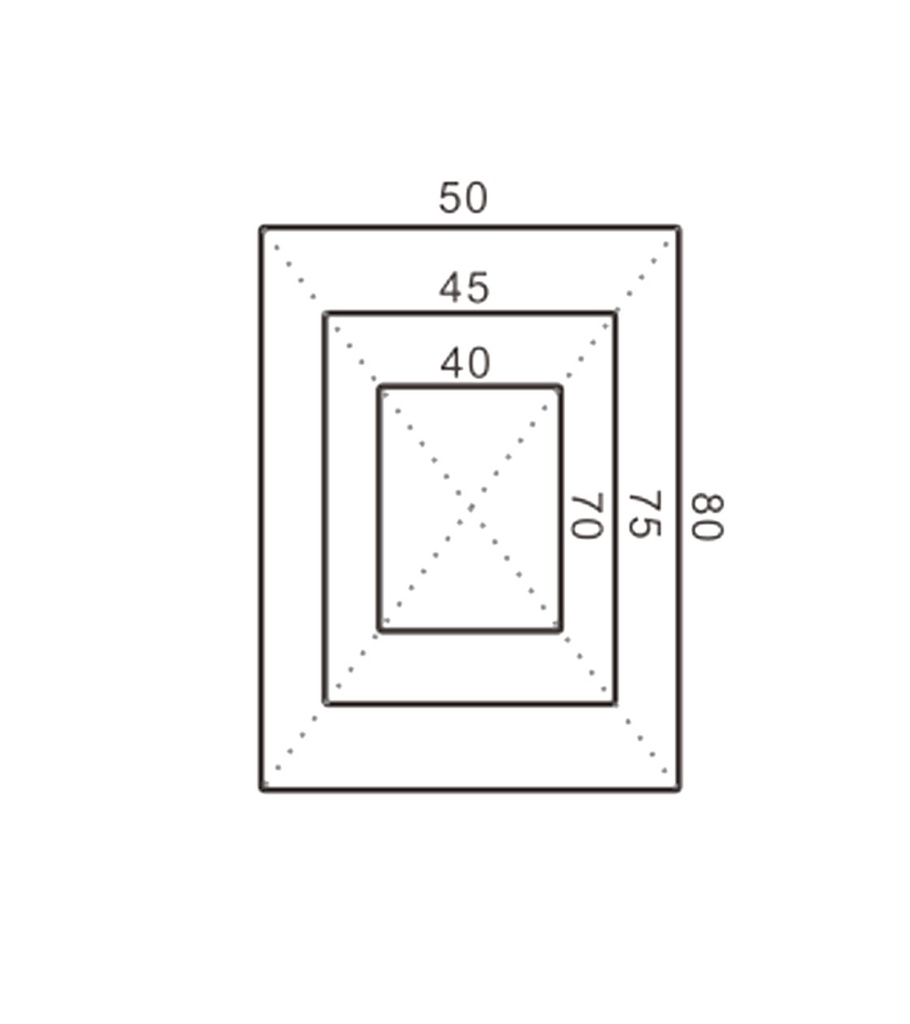

  • Pipe dimensions: outer pipe 80 x 50 mm, middle pipe 75 x 45 mm, inner pipe 70 x 40 mm
  • Motor case dimensions: 176 x 96 x 46 mm
  • Fastening: M6 screws
  • Noise level: <50 dB
  • Standby power consumption: <0.1 W
  • Duty cycle: 10 % (max. 2 min at full load, then at least 18 min rest)
  • Parallel use: 1–4 lifting columns, up to 12
  • Compatible control boxes: JCB35N1, JCB35N2, JCB35N3, JCB35N4
  • Environment: indoors
  • Approvals: EN 60335-1, UL 962
  • Surface finish: powder-coated
  • Colors: white (RAL 9016), grey (RAL 7045), black (RAL 9005)








Need help finding the right solution?

Not sure which height-adjustable frame is right for your workspace?
Our guide helps you compare the key features and find the
right solution for your needs.

Contact us

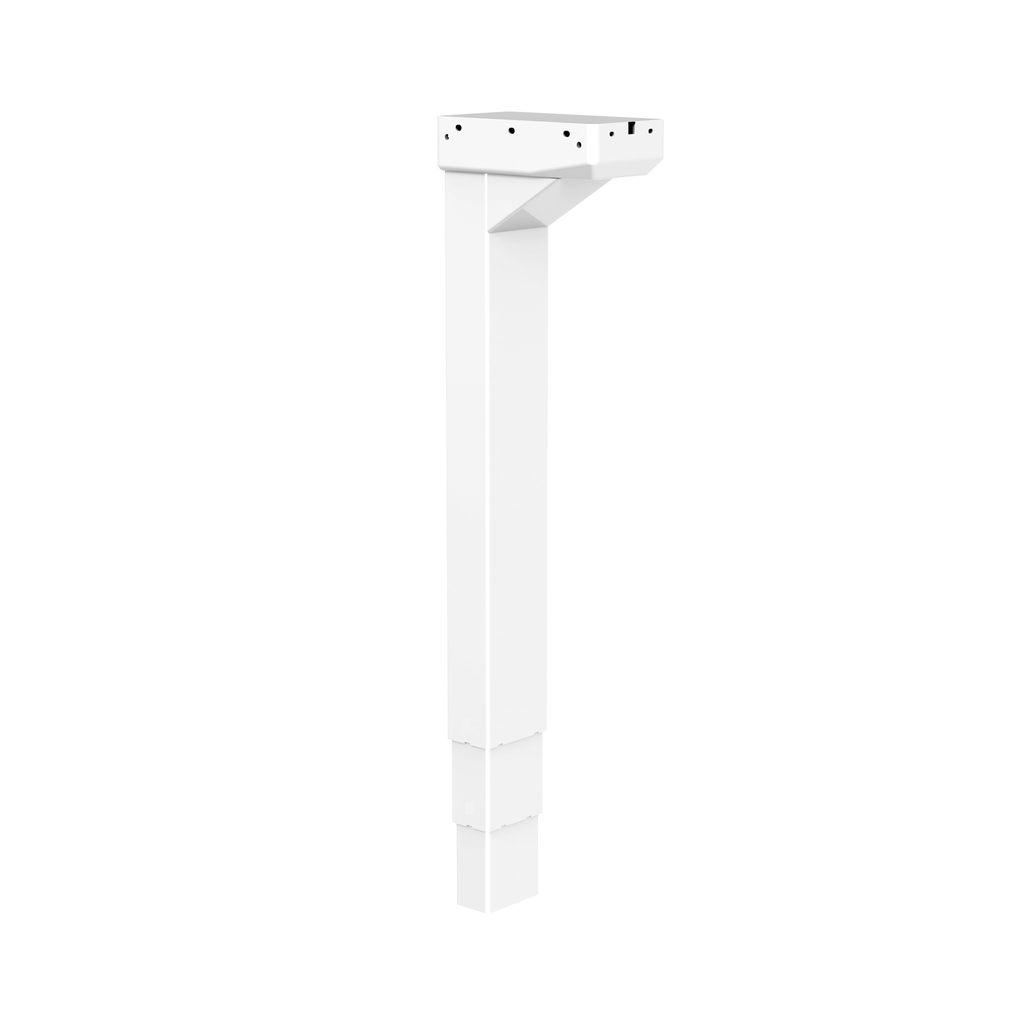

Product Image
