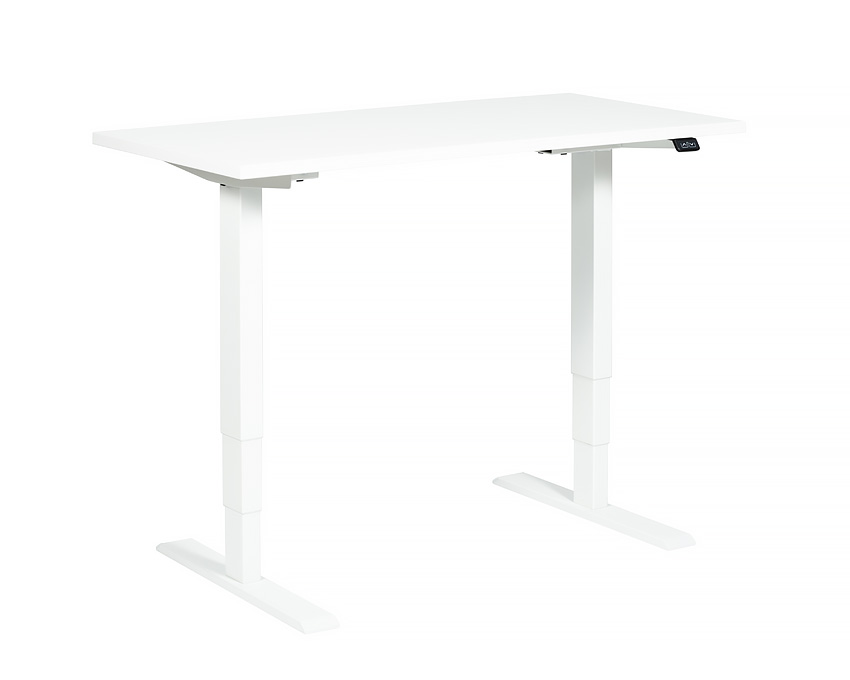

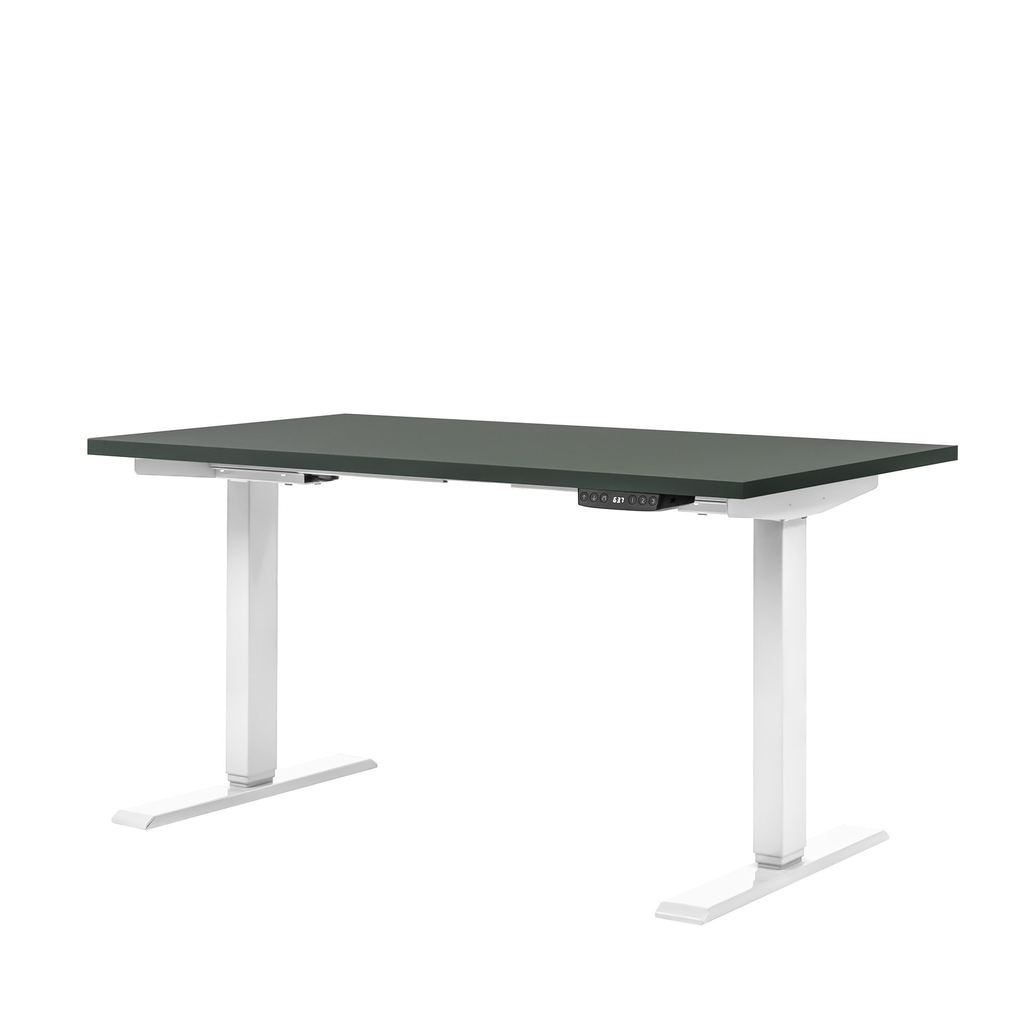

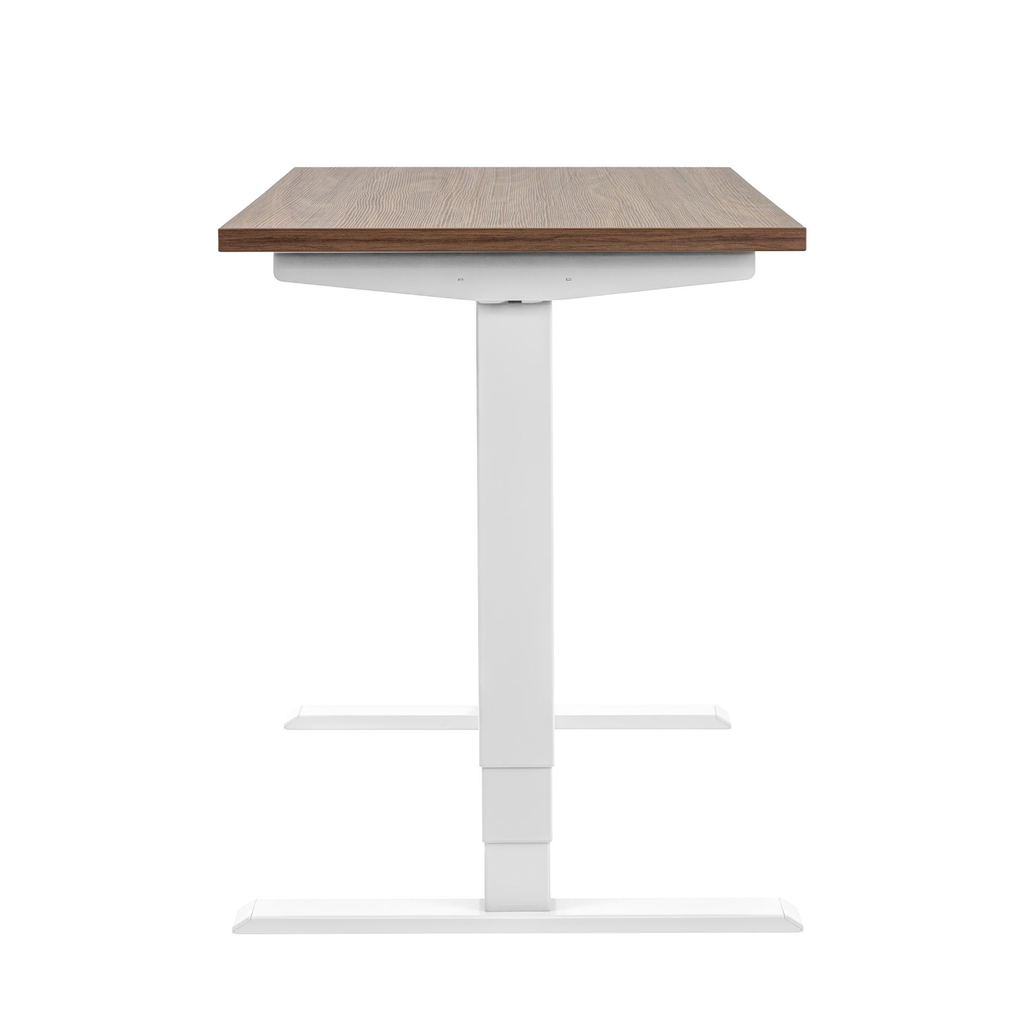

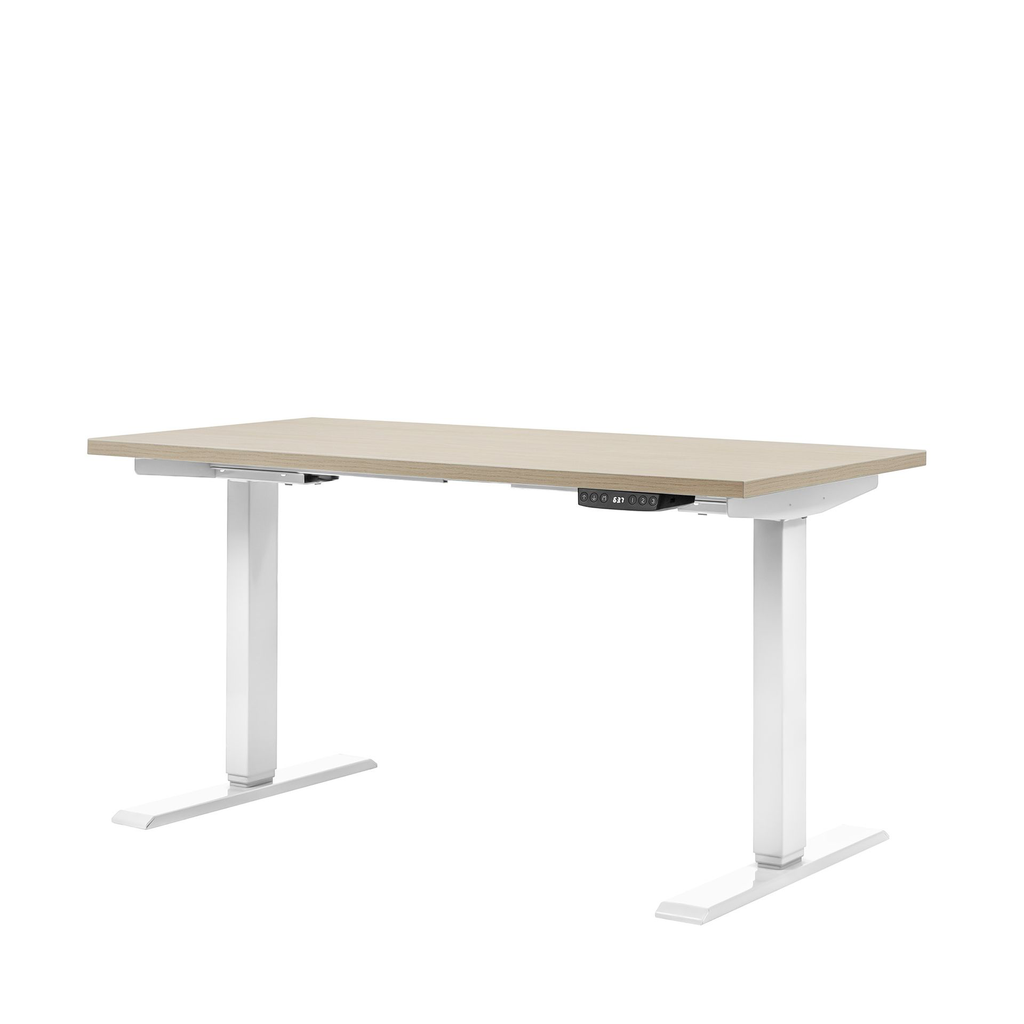

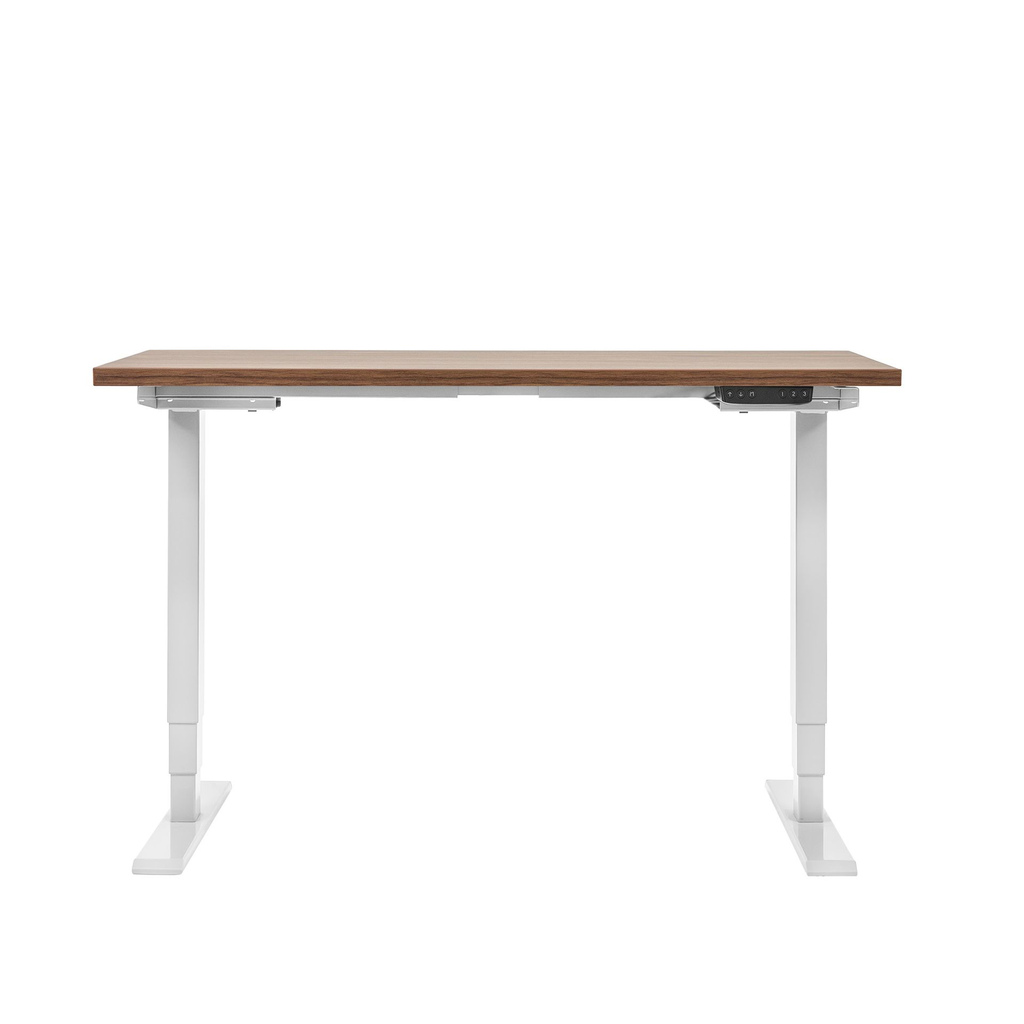

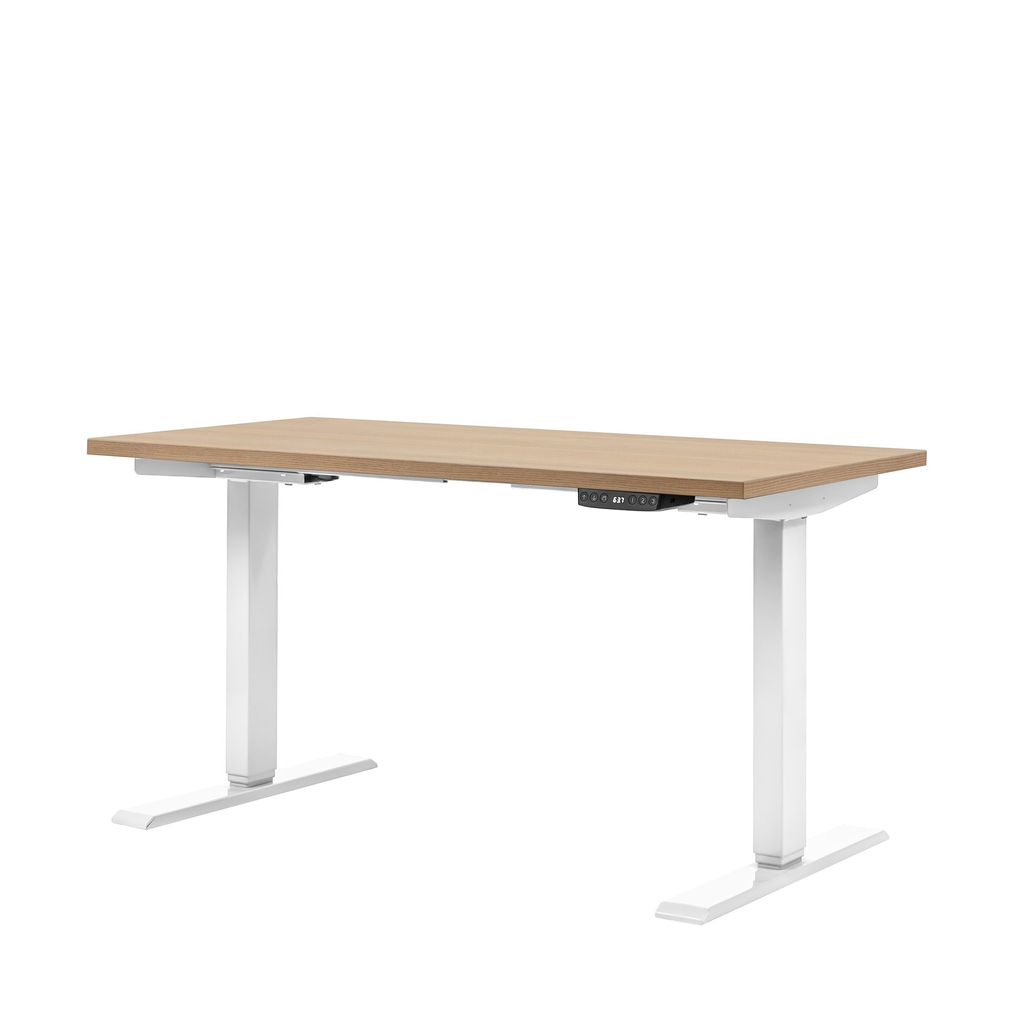

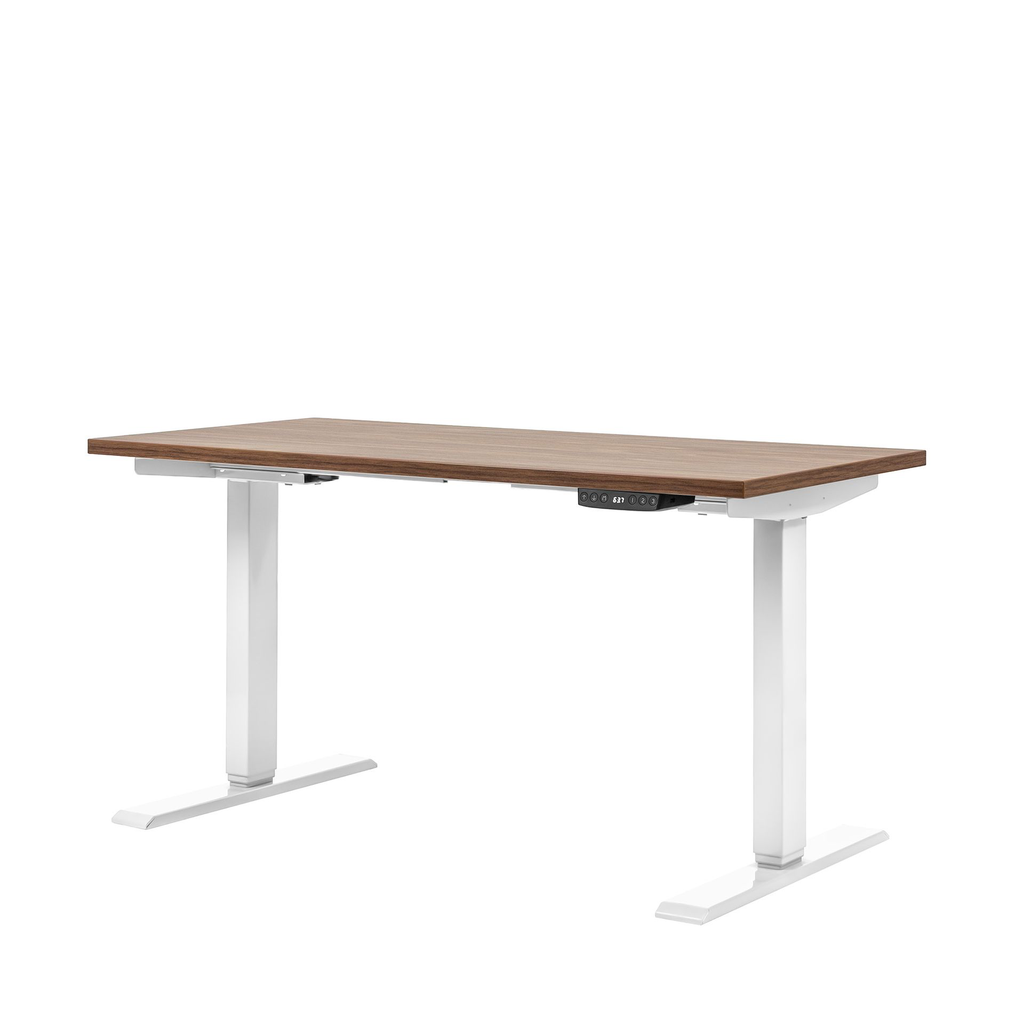

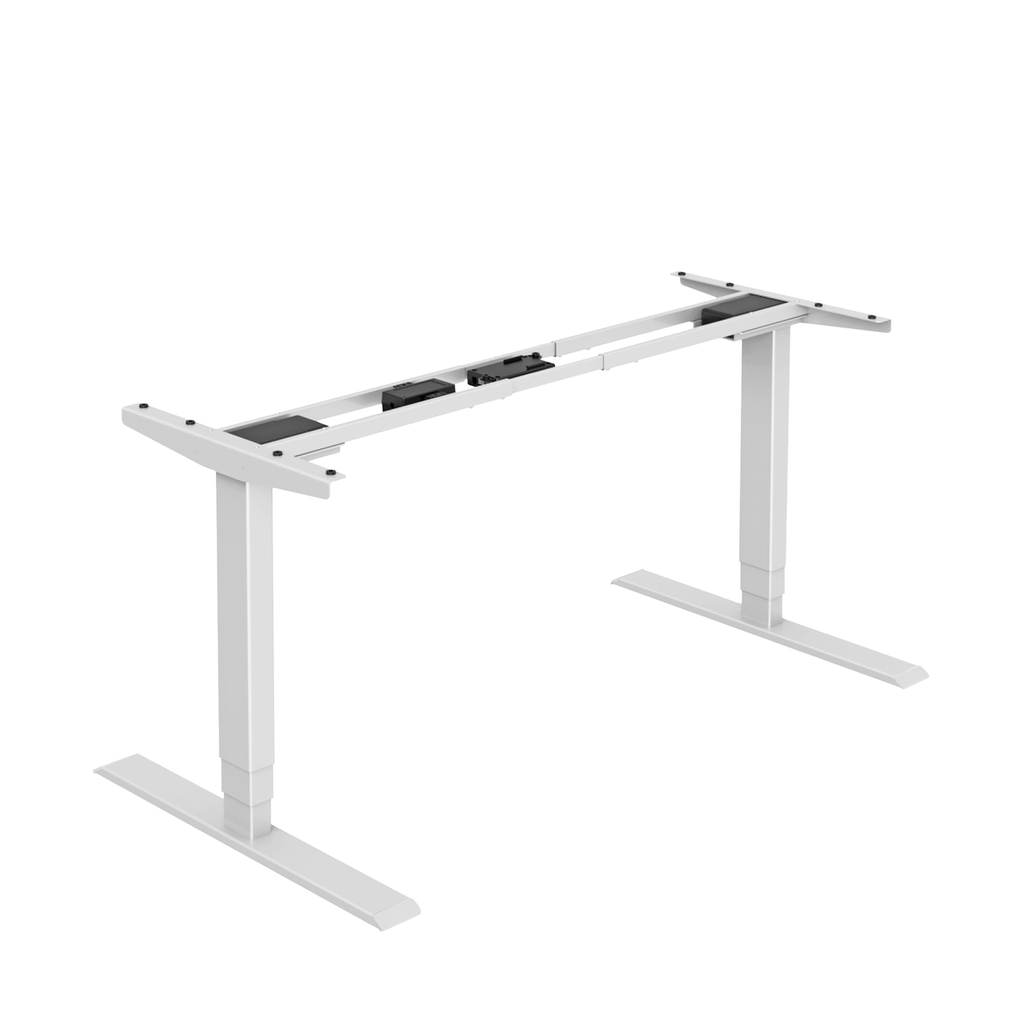

Põhi2 (650)

Features

• Motor amount: 2
• Recommended tabletop width: 1000 - 1600 mm
• Recommended tabletop depth: 600 - 800 mm

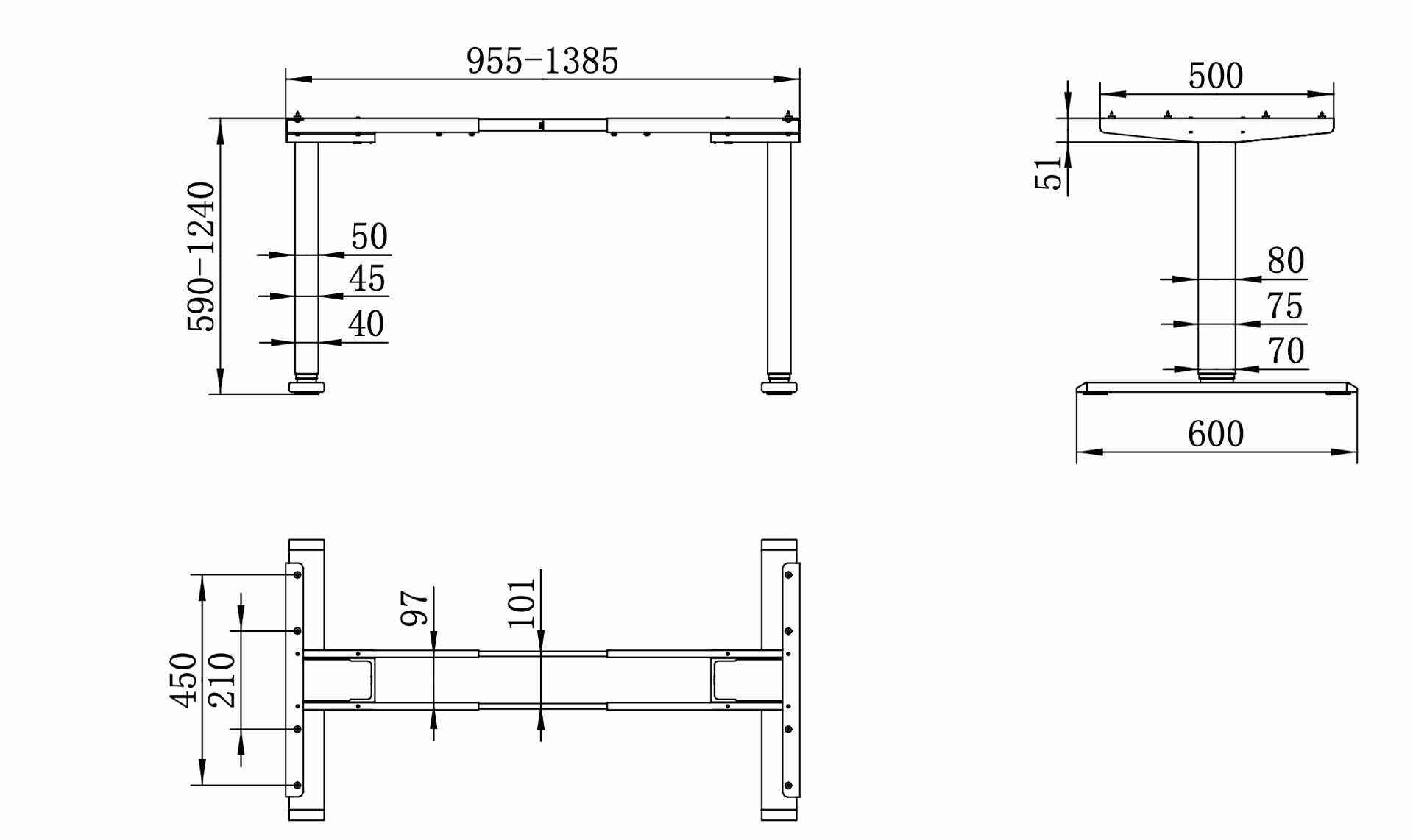

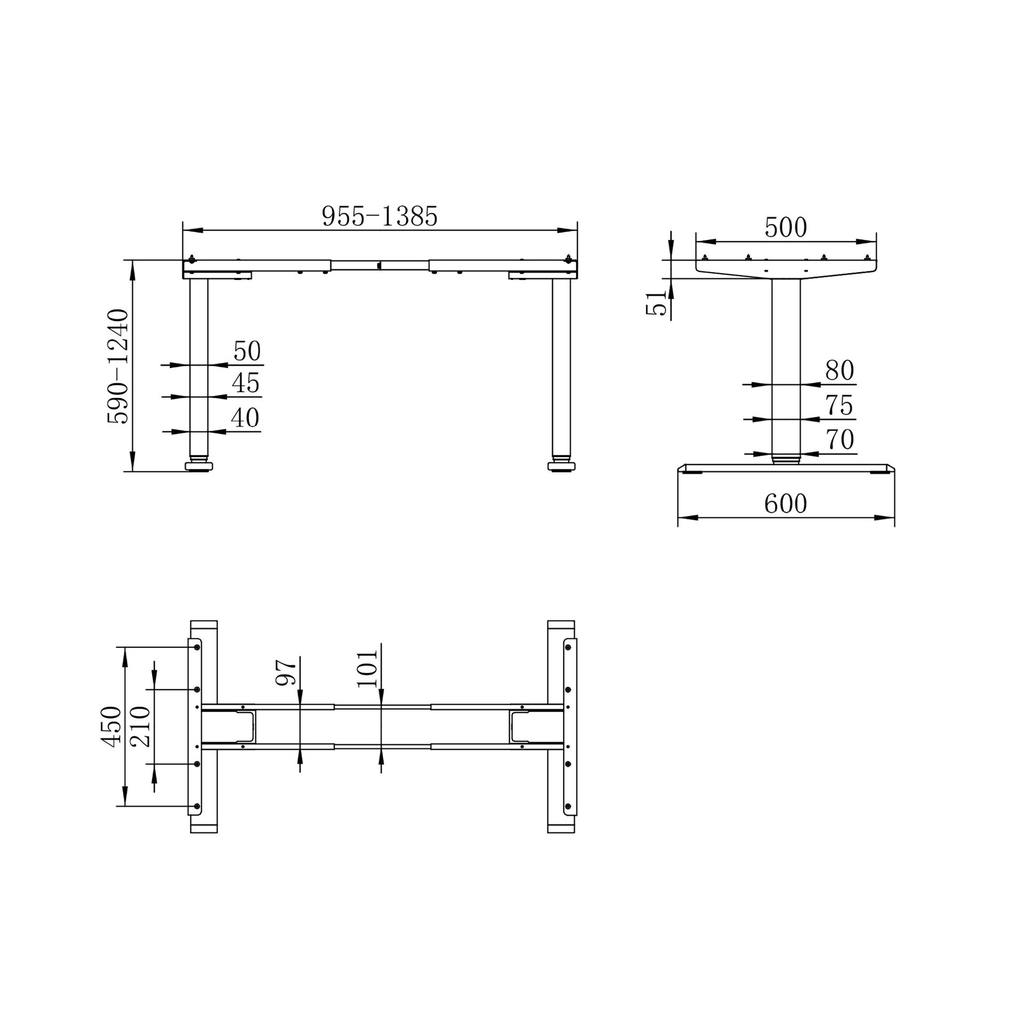

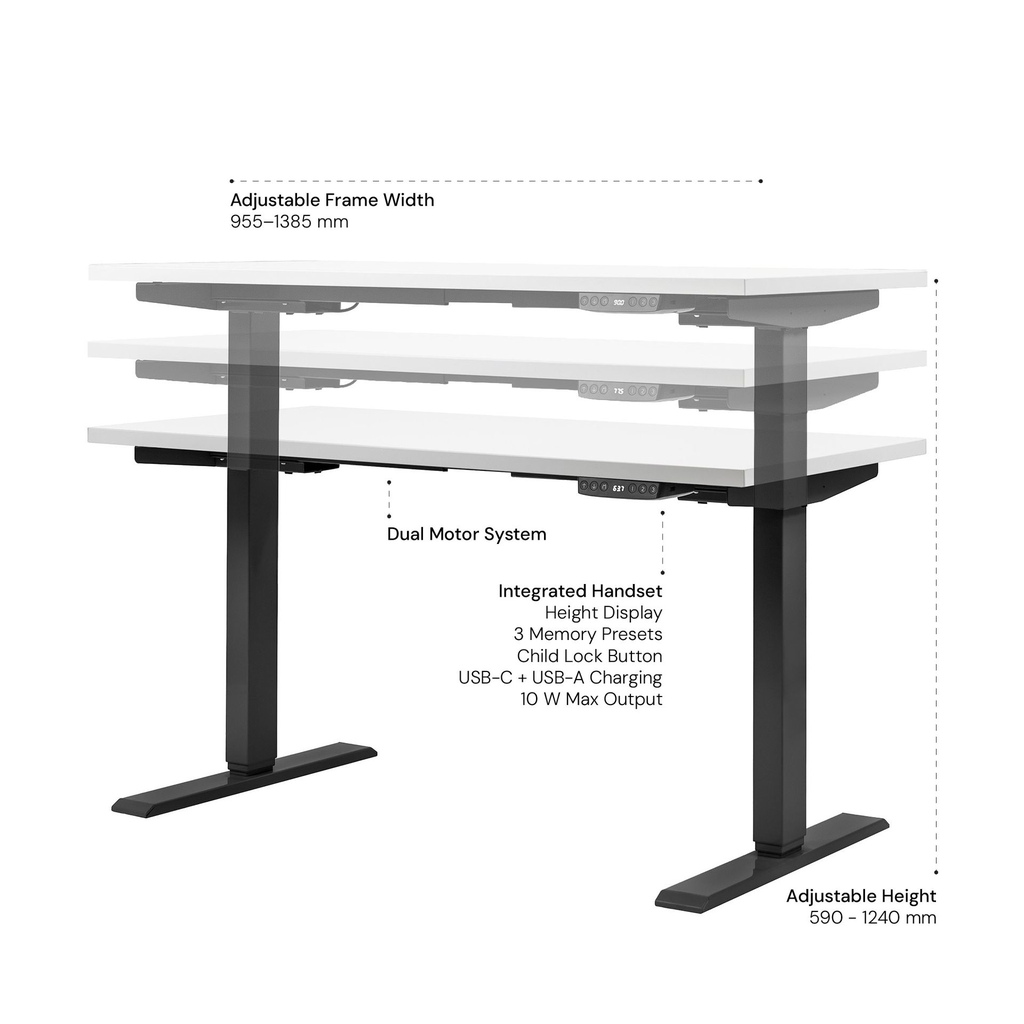

• Height adjustment range: 590 - 1240 mm
• Width adjustment range: 955 - 1385 mm
• Kansivaste: 575 mm
• Foot part: 600 mm
• Anti-collision: Kyllä
• Stroke: 650 mm
• Lift capacity: 80kg
• Speed: 32 mm/s
• Sound level:
• Power consumption: 190W
• Duty cycle: 10% (2 min on / 18 min off)
• Color: Grey (RAL 7045), White (RAL 9016) and Black (RAL 9005)

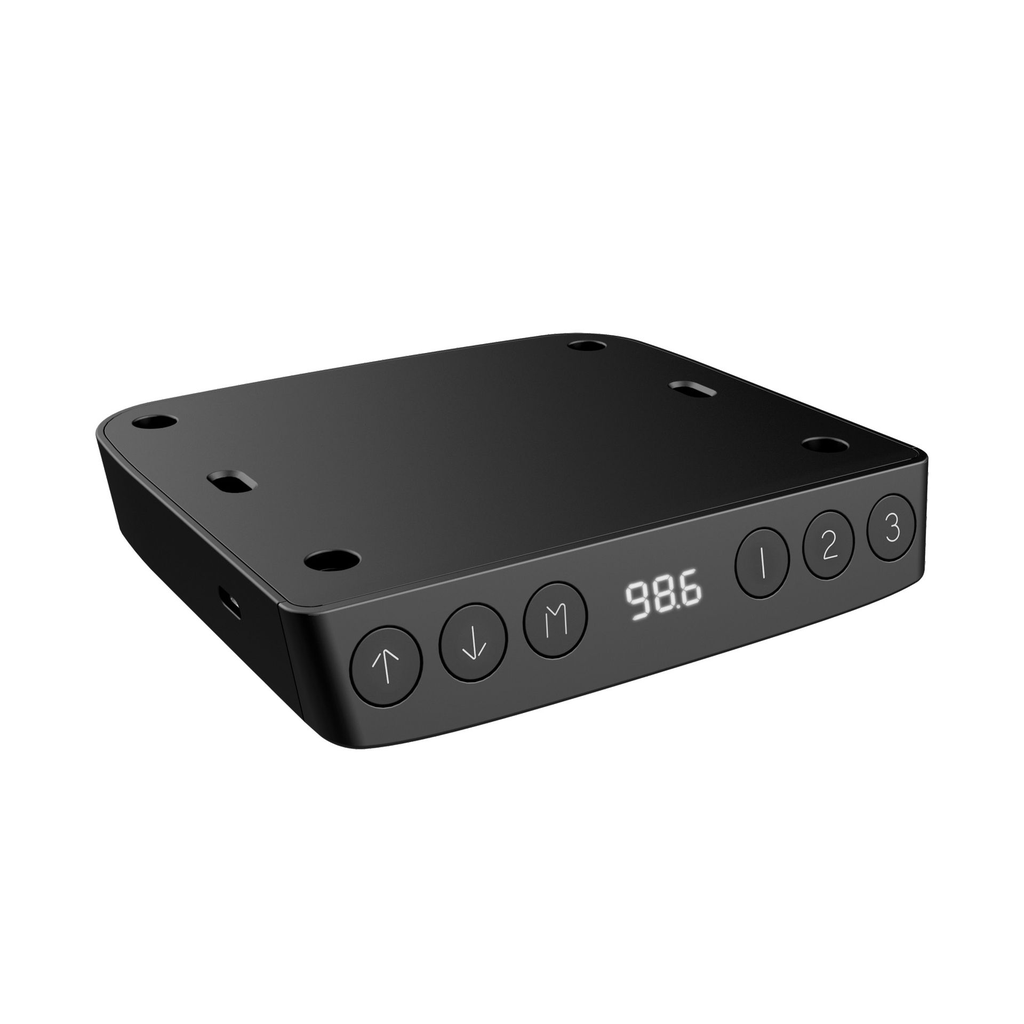

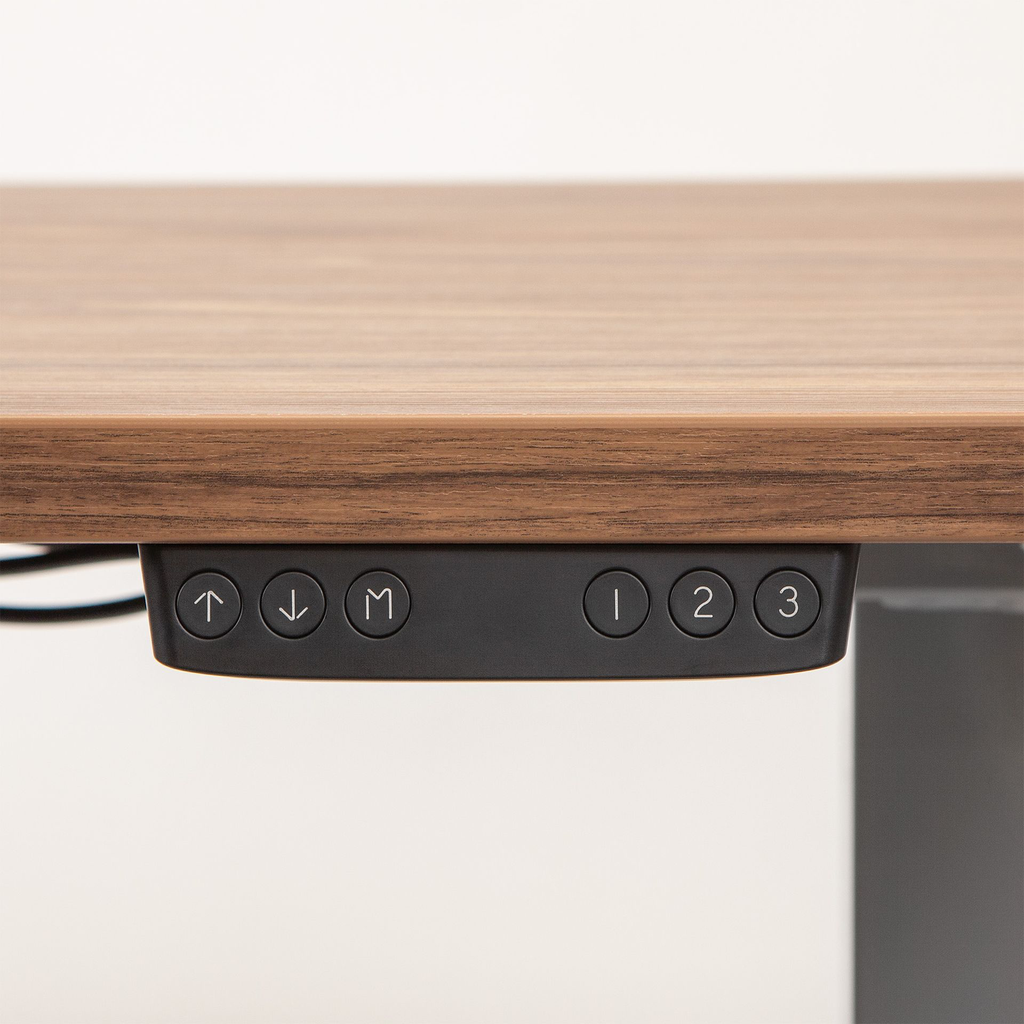

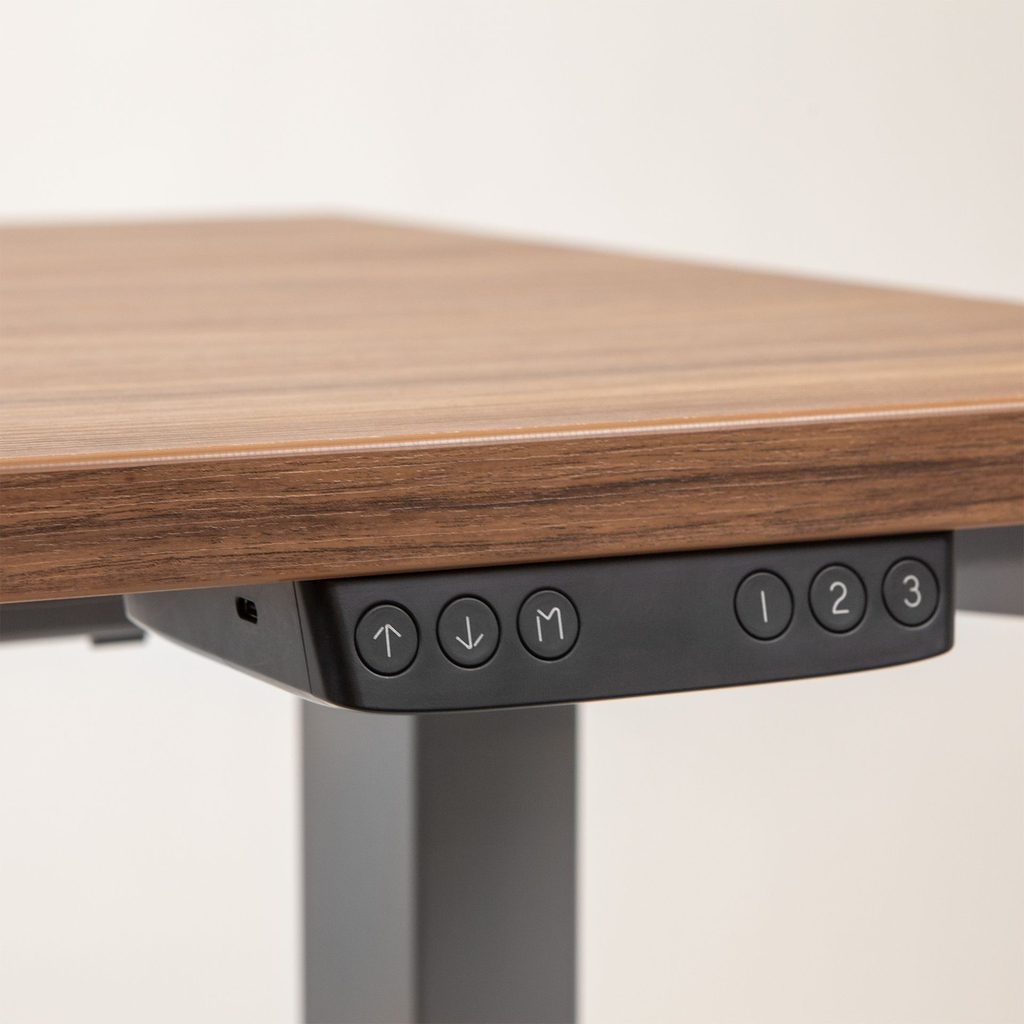

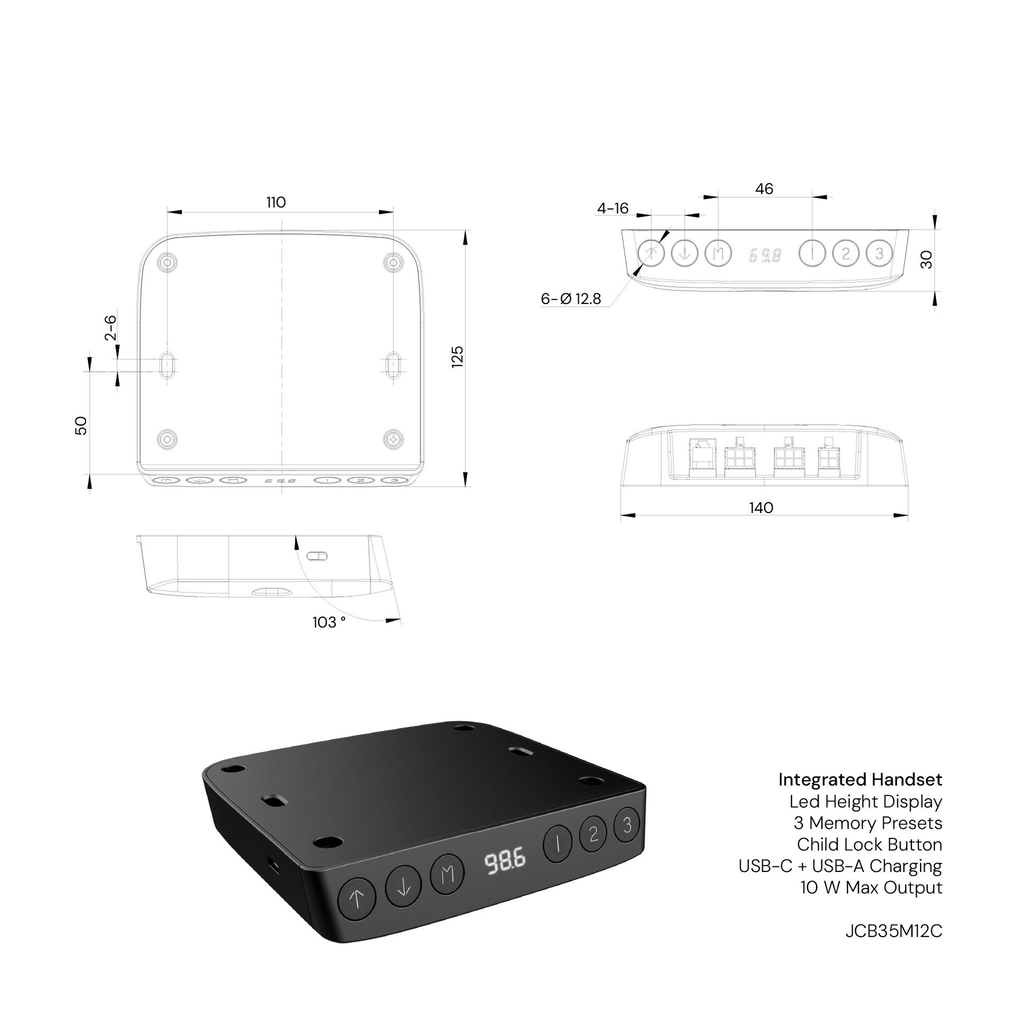

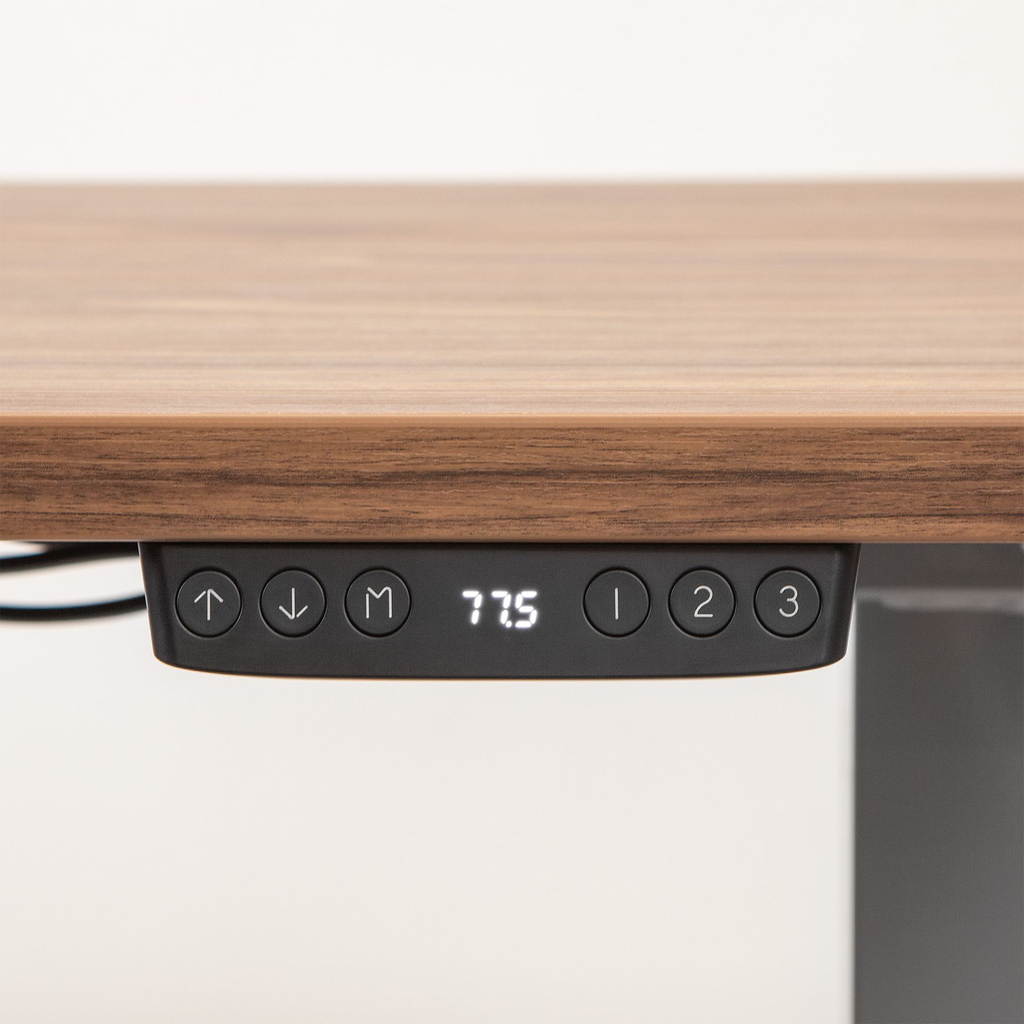

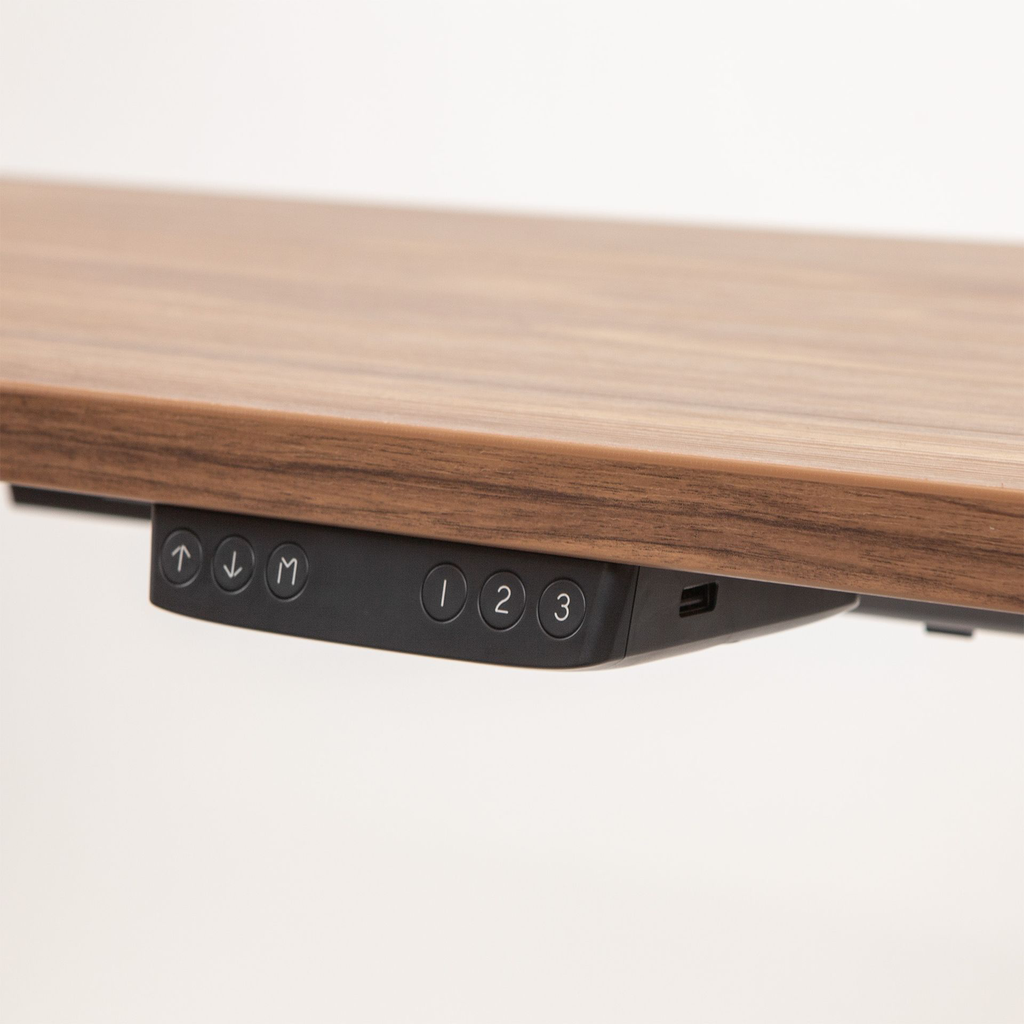

• Käsiohjain: JCBM12C
• Control box: JCB36M2

Wheels can be attached if foot parts are changed.

Warranty: 2 years

Package dimensions

• Packaging: 78 x 30,5 x 20cm 26 kg

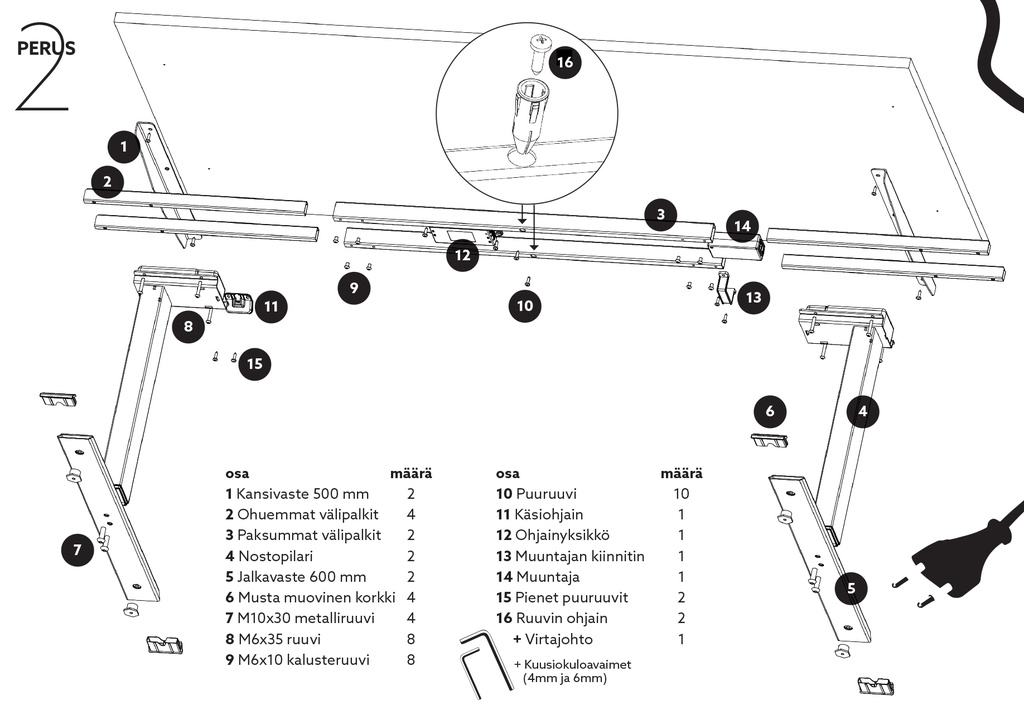

List of parts:

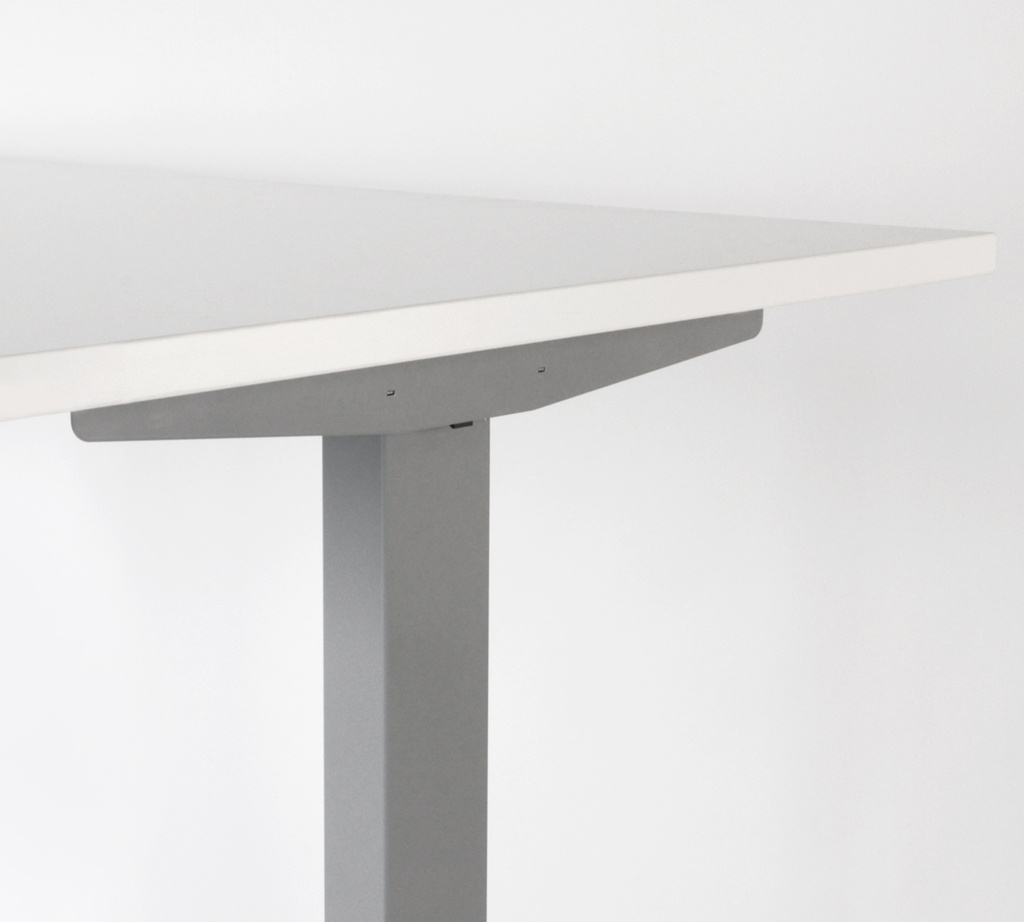

• 2 x Sidebracket 575 mm
• 4 x Upper pipe
• 2 x Centre pole
• 2 x Lifting column
• 2 x Foot part 600 mm
• 1 x Hand controller JCHT35K
• 1 x Controller unit JC36M2
• 1 x Transformer mounting bracket
• 1 x Transformer
• 1 x Two-pin power cord
• 10 x Cable clip
• 8 x Allen screw M6x35 mm
• 8 x Allen screw M6x30 mm
• 12 x Wood screw K5x20
• 2 x Wood screw K5x16

Troubleshooting:

https://youtu.be/-mtClVVOejw

Assembly:

https://youtu.be/lRb2-m504K0

Ohjaimen käyttö:

https://youtu.be/qCZRZh_AxGg

Ohjaimen lapsilukon käyttö:

https://youtu.be/lIRBQBMn9n4
