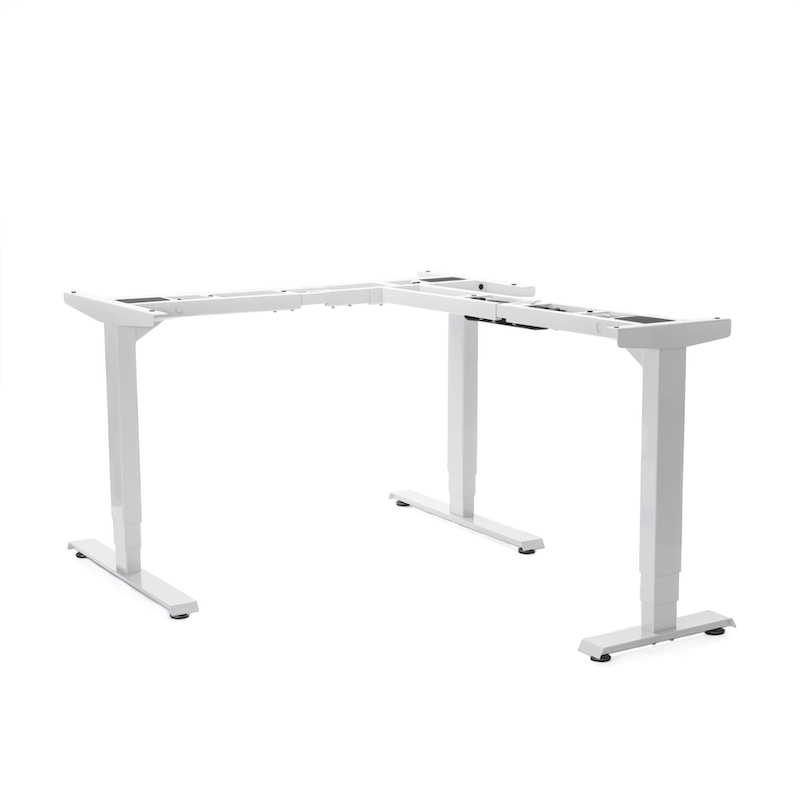

Reguleeritav 3. jalg, Upgrade Kit

Features

• Converts the two-leg RS3 frame into a three-leg frame
• Enables a corner desk solution
• Includes anti-collision protection
• Powder-coated surface
• Package includes a 400 mm foot part and 320 mm side bracket as standard

Technical Information

• Height adjustment range: 600–1250 mm
• Frame width adjustment range: 1007–1800 mm
• Third leg attachment point adjustment range: 1050–1800 mm
• Suitable tabletop size (base frame): 1100–2000 mm
• Overall frame span for tabletop (3-leg configuration): 1450–2300 mm
• Foot part: 400 mm
• Side bracket: 320 mm
• Load capacity: 1500 N (≈ 150 kg)
• Speed: 40 mm/s
• Noise level: <50 dB (no-load condition)
• Colour: White (RAL9016), Grey (RAL7045), Black (RAL9005)
• Control box: JCB36N3

Package dimensions

• Package size: 105x40x13
• Weight: 16 kg
