4 astmeline raam

Name: 4 astmeline raam
SKU: JS36DS8-RS4

Lisa soovinimekirja

Category: Uued tooted, Adjustable electric frame

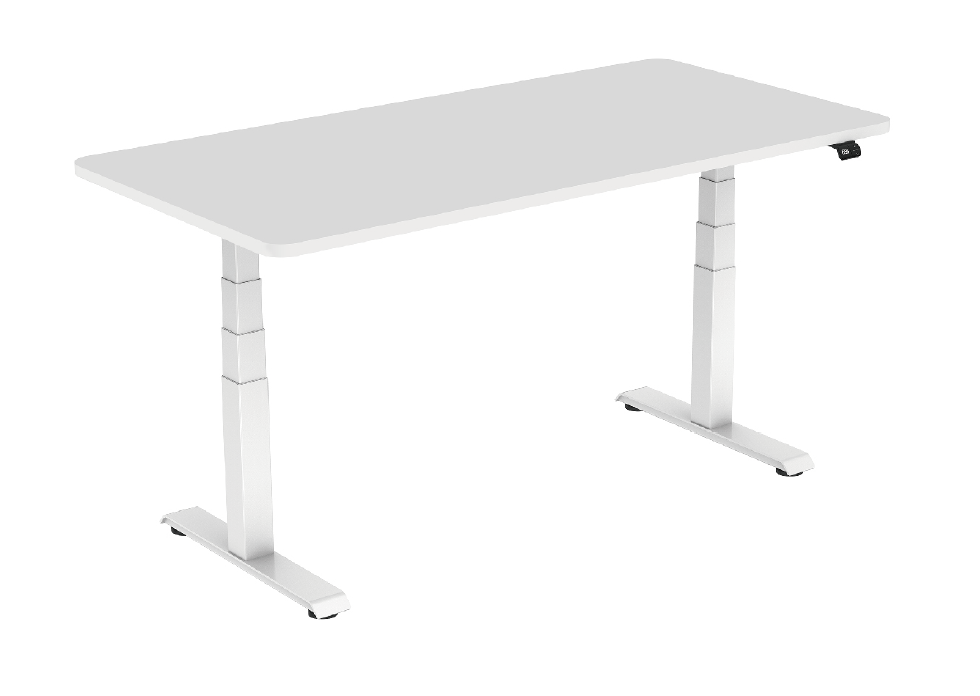

Electric table frame JS36DS8-RS4

JS36DS8-RS4 is a dual-motor electric table frame for offices, homes and commercial spaces. Compared with standard lifting columns, its 4-stage lifting columns have a low installation height, a higher speed and a long stroke.

The height adjustment range is 490–1150 mm, and the height is adjusted with a handset with 4 memory positions. The anti-collision function stops the table if it hits an obstacle. Thanks to its low height and light load, the frame is well suited to schools, for example. The tabletop is not included.

Specifications

Värv

Must

Features

Two motors, 4-stage lifting columns.
Low installation height and long stroke.
Handset with 4 memory positions.
Anti-collision function.
Suitable for schools, for example.
Warranty: 5 years

Technical information

Motors: 2
Height adjustment range: 490–1150 mm
Lifting columns: 4-stage, 70 x 70 mm
Stroke: 700 mm
Height adjustment speed: 50 mm/s
Lift capacity: 60 kg
Frame width: 1100–1800 mm
Recommended tabletop width: 1200–2000 mm
Recommended tabletop depth: 700–1000 mm
Foot part: 700 mm
Side bracket: 575 mm
Handset: JCHT35K55C, 4 memory positions
Anti-collision: yes
Noise level: below 50 dB
Duty cycle: 10 % (max. 2 min at full load, then 18 min rest)
Power consumption: 190 W
Colour: black (RAL9005)
Warranty: 5 years

Package size: 25 x 25 x 107 cm

Alternative Products

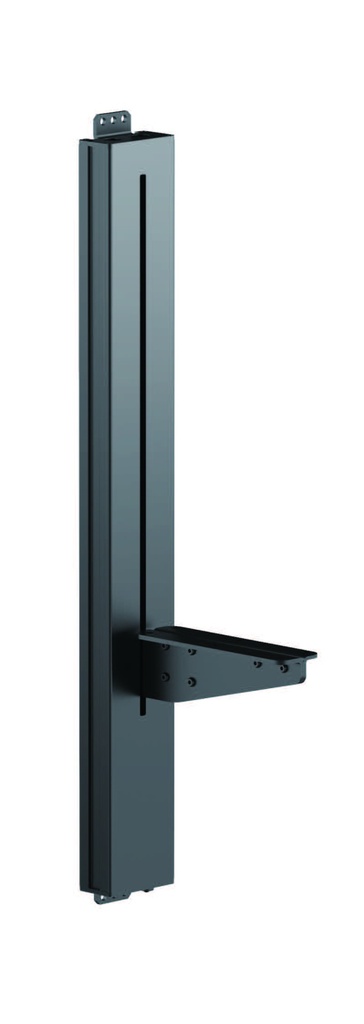

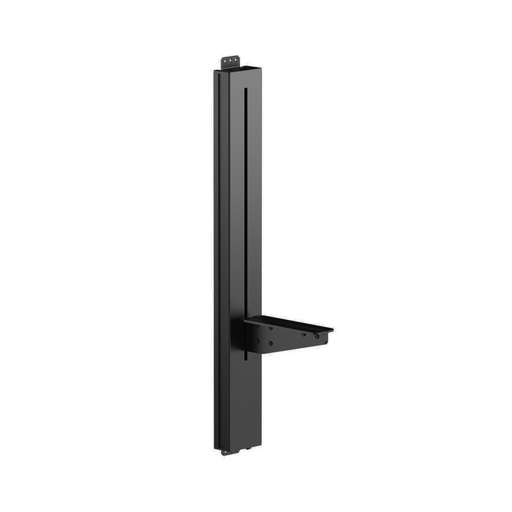

Wall-mounted lifting column JS36H2
