  3. 4 stegs ram, JS36DS8-RS4
Elektrisk bordsram JC35TS-RS3
Justerbar 3. ben, Upgrade Kit

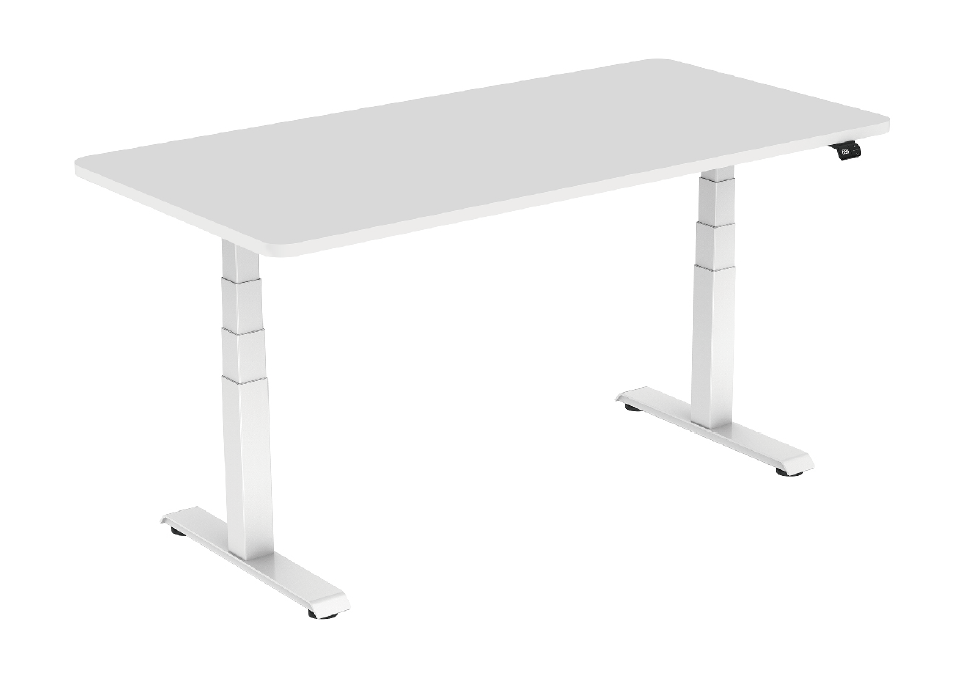

4 stegs ram, JS36DS8-RS4


  • Färg - Svart
Lägg i varukorg
Köp nu
You have already submitted a query for this product today. Lägg till i önskelista
Nya produkter, Adjustable electric frame
Kontakta oss

Specifications

Färg Svart

Features
  • Two motors, 4-stage lifting columns.
  • Low installation height and long stroke.
  • Handset with 4 memory positions.
  • Anti-collision function.
  • Suitable for schools, for example.
  • Warranty: 5 years

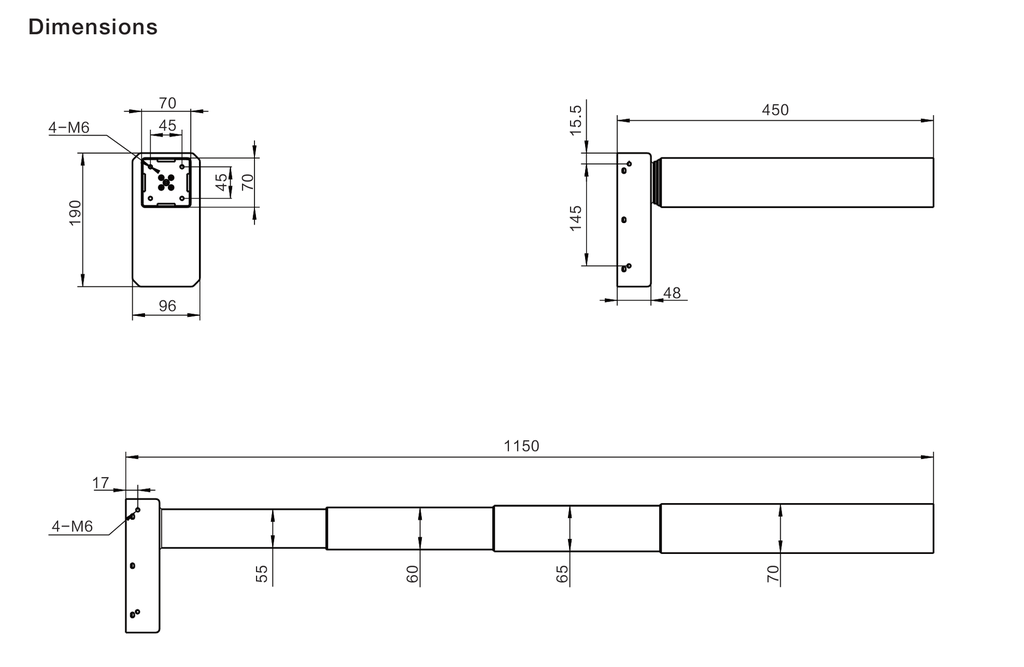

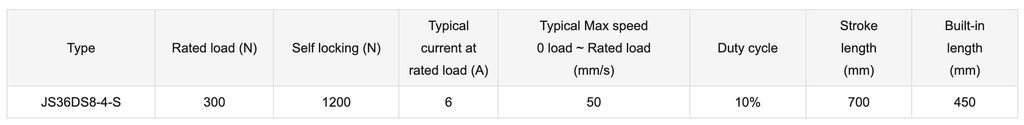

Technical information
  • Motors: 2
  • Height adjustment range: 490–1150 mm
  • Lifting columns: 4-stage, 70 x 70 mm
  • Stroke: 700 mm
  • Height adjustment speed: 50 mm/s
  • Lift capacity: 60 kg
  • Frame width: 1100–1800 mm
  • Recommended tabletop width: 1200–2000 mm
  • Recommended tabletop depth: 700–1000 mm
  • Foot part: 700 mm
  • Side bracket: 575 mm
  • Handset: JCHT35K55C, 4 memory positions
  • Anti-collision: yes
  • Noise level: below 50 dB
  • Duty cycle: 10 % (max. 2 min at full load, then 18 min rest)
  • Power consumption: 190 W
  • Colour: black (RAL9005)
  • Warranty: 5 years

Package size: 25 x 25 x 107 cm
