- Justerbar 3. ben, Upgrade Kit

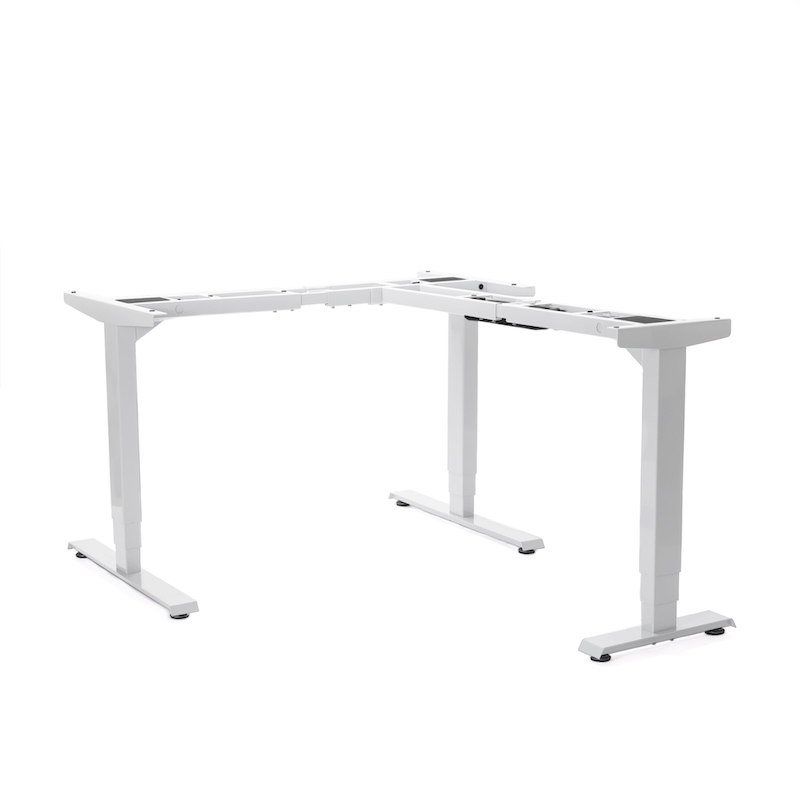

Upgrade kit, 3. leg
Allows a 3-leg configuration to be installed on the RS3 frame and converts the desk into a corner desk. Enables a 2-metre tabletop in both directions.
The extra leg is mechanically attached with screws to the two-leg frame, on which the upper frame is replaced. The package includes a 400 mm foot part and 320 mm side bracket as standard.
Colors: White, Grey, Black
Warranty: 5 years
Specifications
| Färg | Vit or Grå or Svart |
Features
- Converts the two-leg RS3 frame into a three-leg frame
- Enables a corner desk solution
- Includes anti-collision protection
- Powder-coated surface
- Package includes a 400 mm foot part and 320 mm side bracket as standard
Technical Information
- Height adjustment range: 600–1250 mm
- Frame width adjustment range: 1007–1800 mm
- Kolmannen jalan säätöalue: 1010–1803 mm
- Suitable tabletop size (base frame): 1100–2000 mm
- Overall frame span for tabletop (3-leg configuration): 1450–2300 mm
- Foot part: 400 mm
- Side bracket: 320 mm
- Load capacity: 1500 N (≈ 150 kg)
- Speed: 40 mm/s
- Noise level: <50 dB (no-load condition)
- Color: White (RAL9016), Grey (RAL7045), Black (RAL9005)
- Control box: JCB36N3
Package
- Package dimensions: 105 x 4 x 13 cm
- Weight: 16 kg
