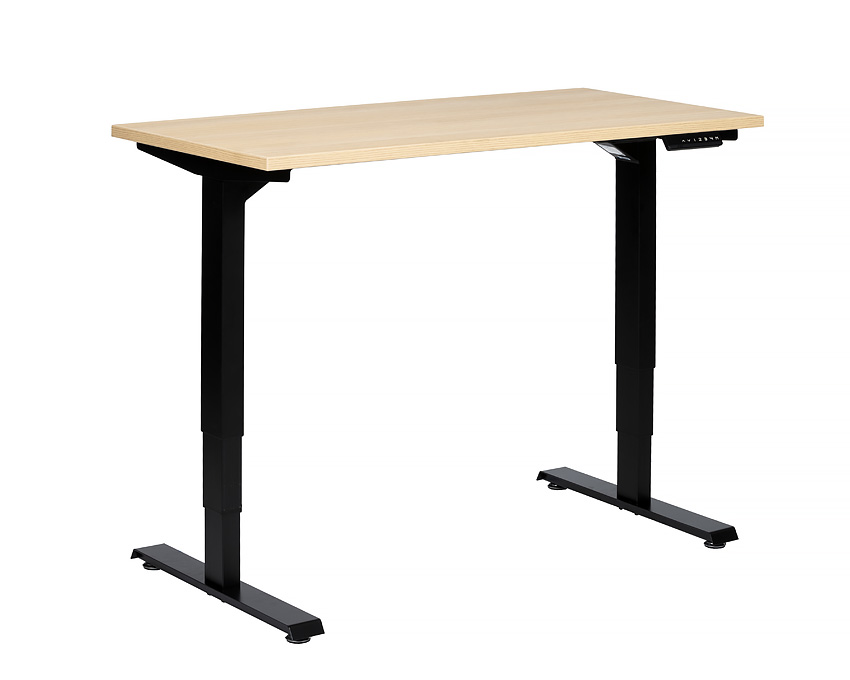

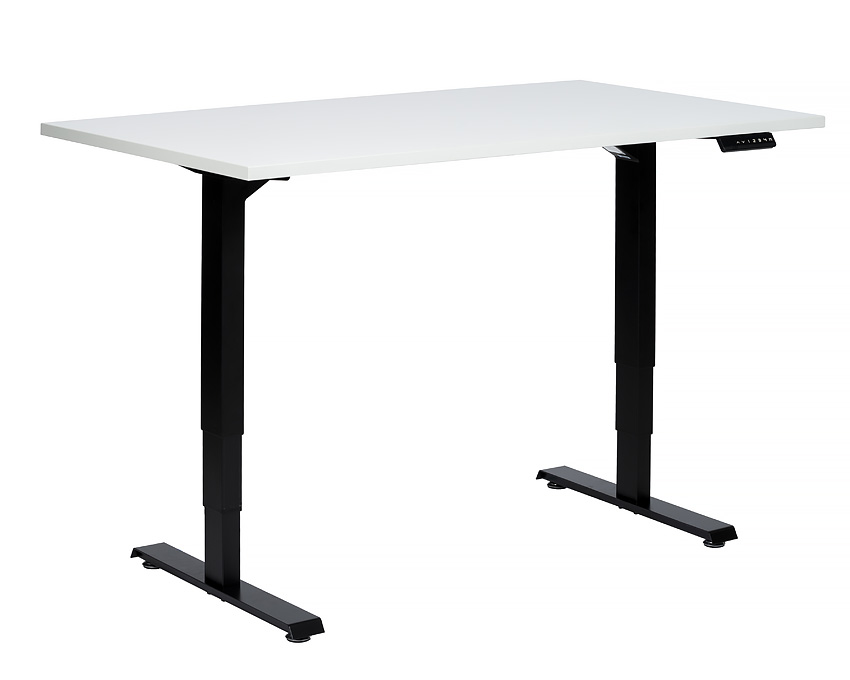

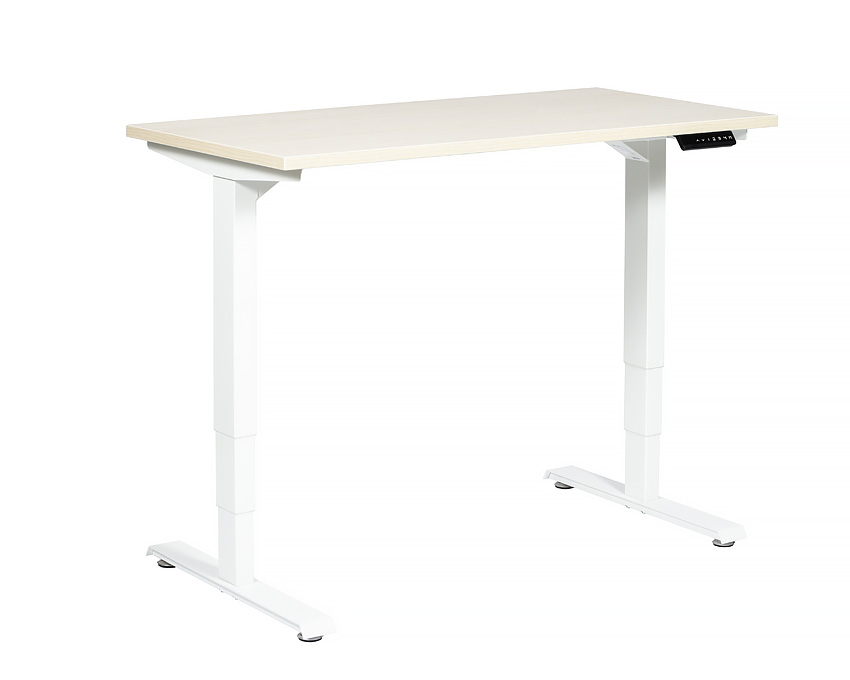

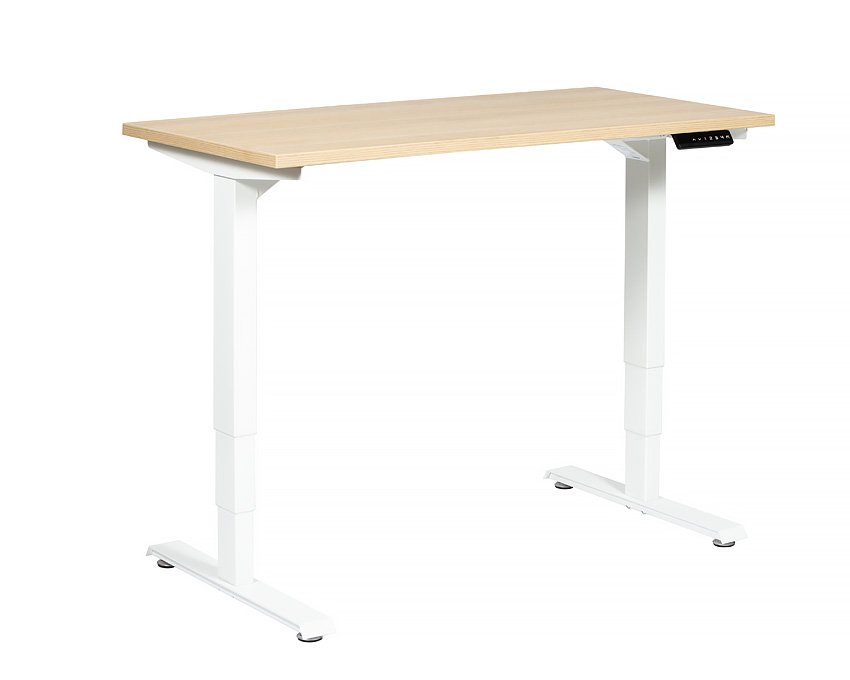

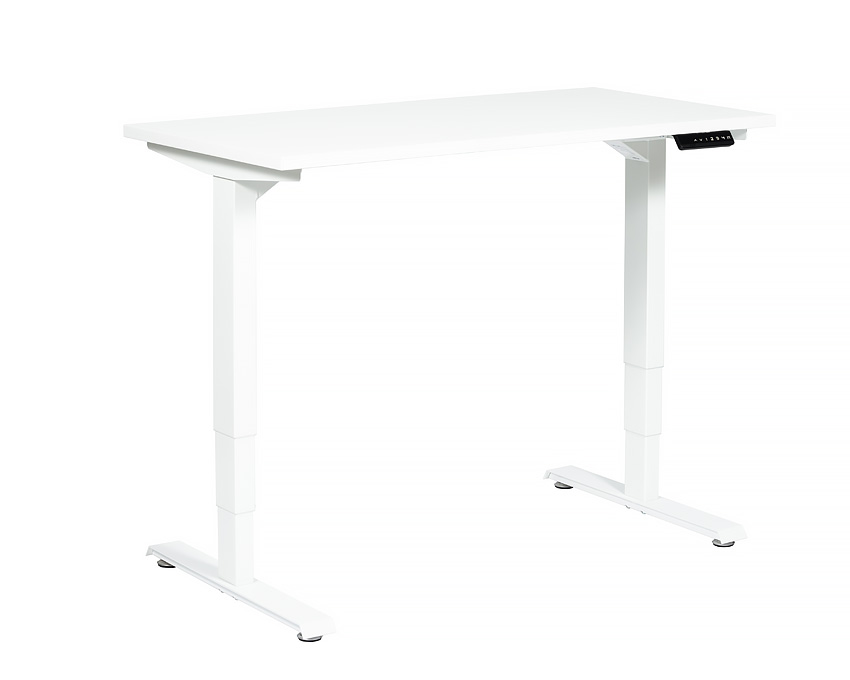

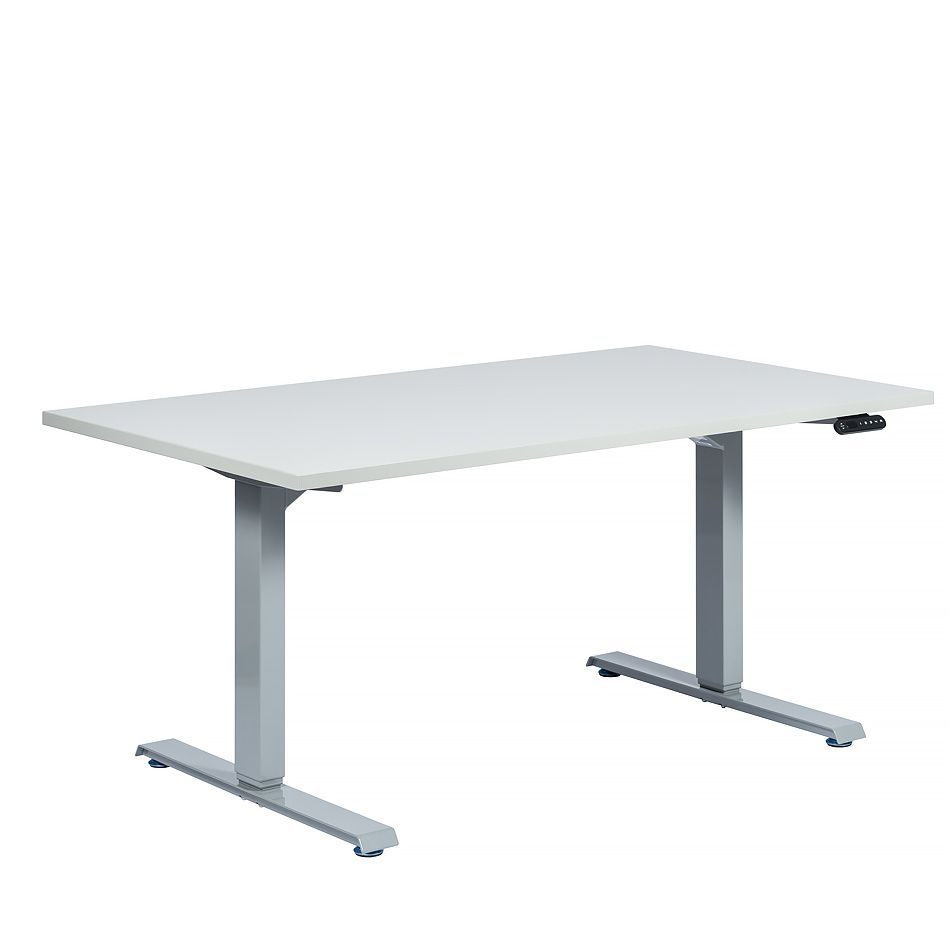

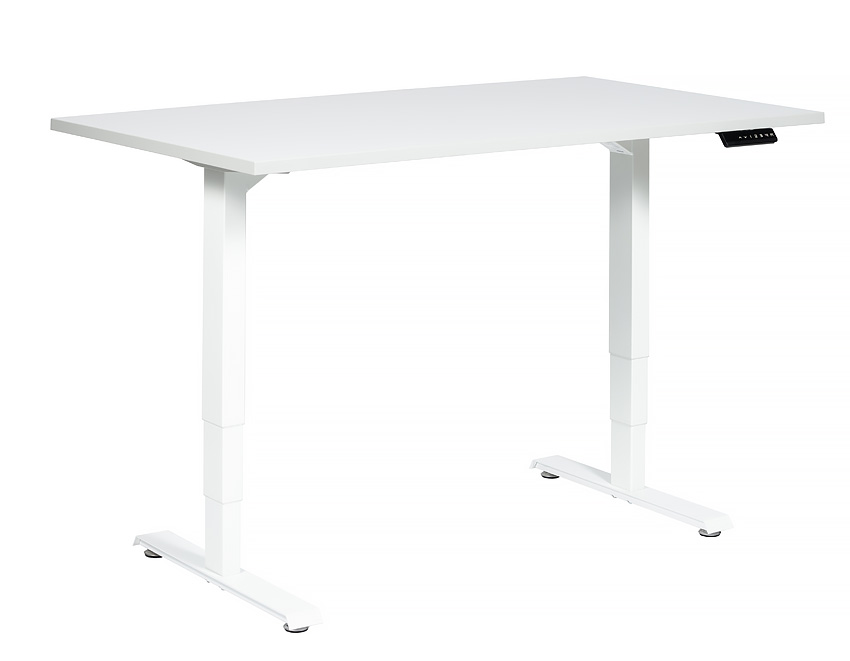

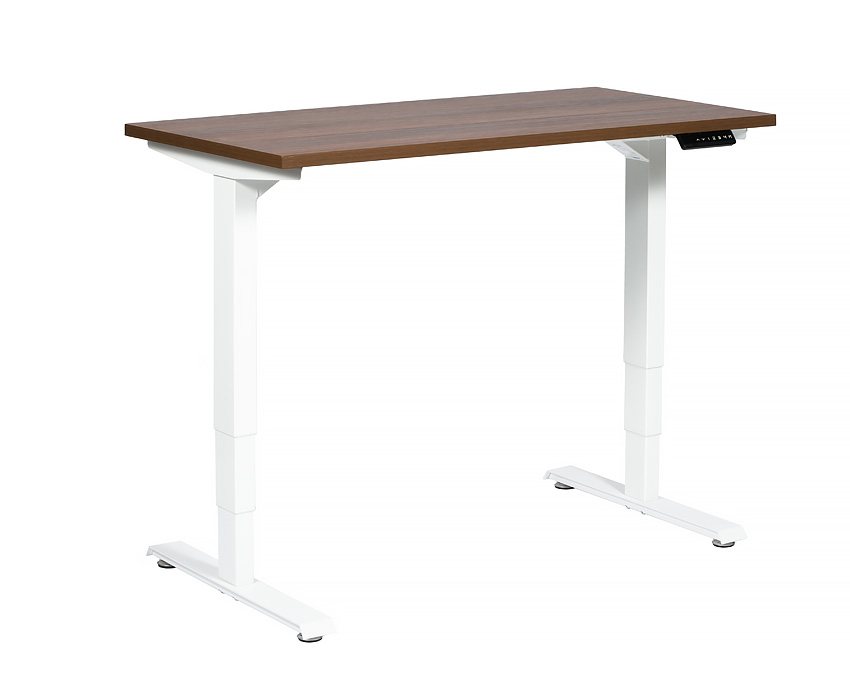

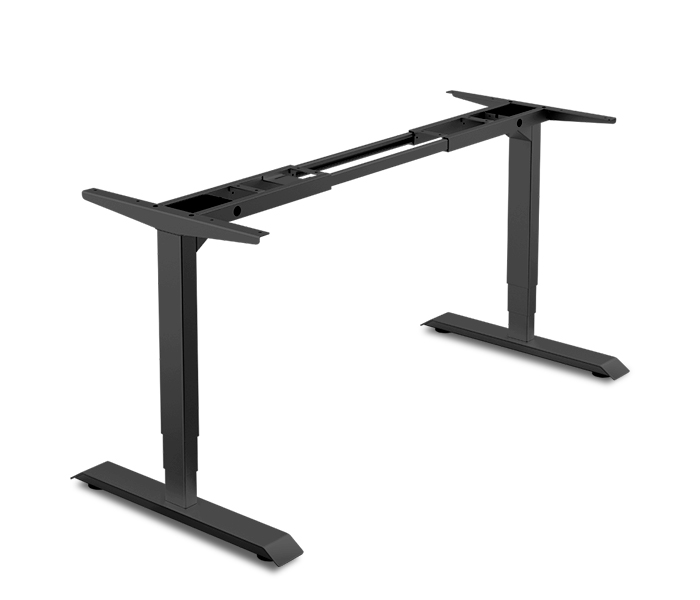

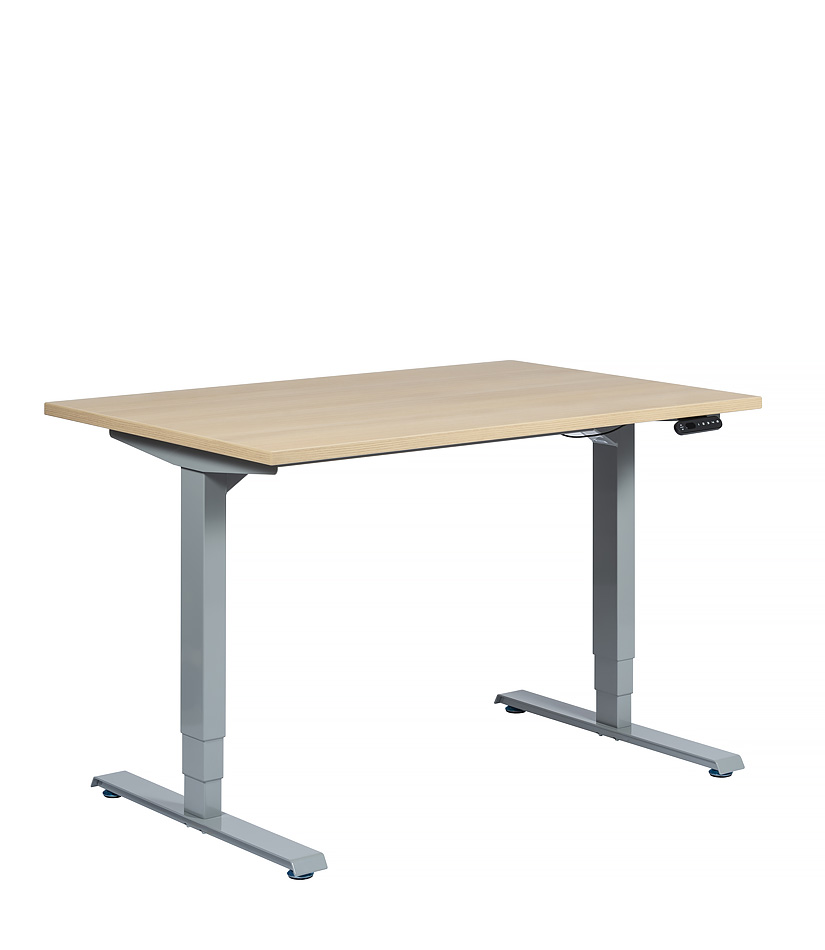

Elektrisk bordsram JC35TS-RS3

Powder-coated steel frame

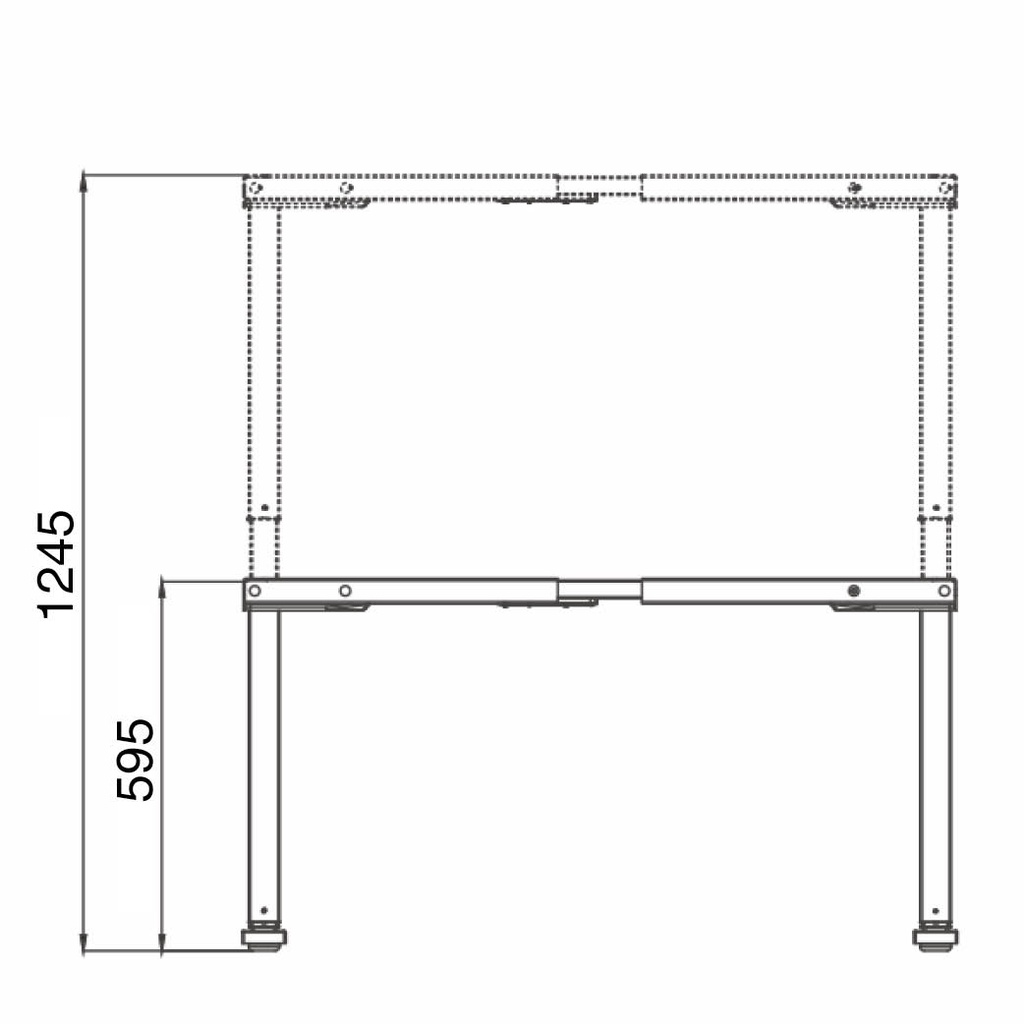

Height: 595 - 1245 mm

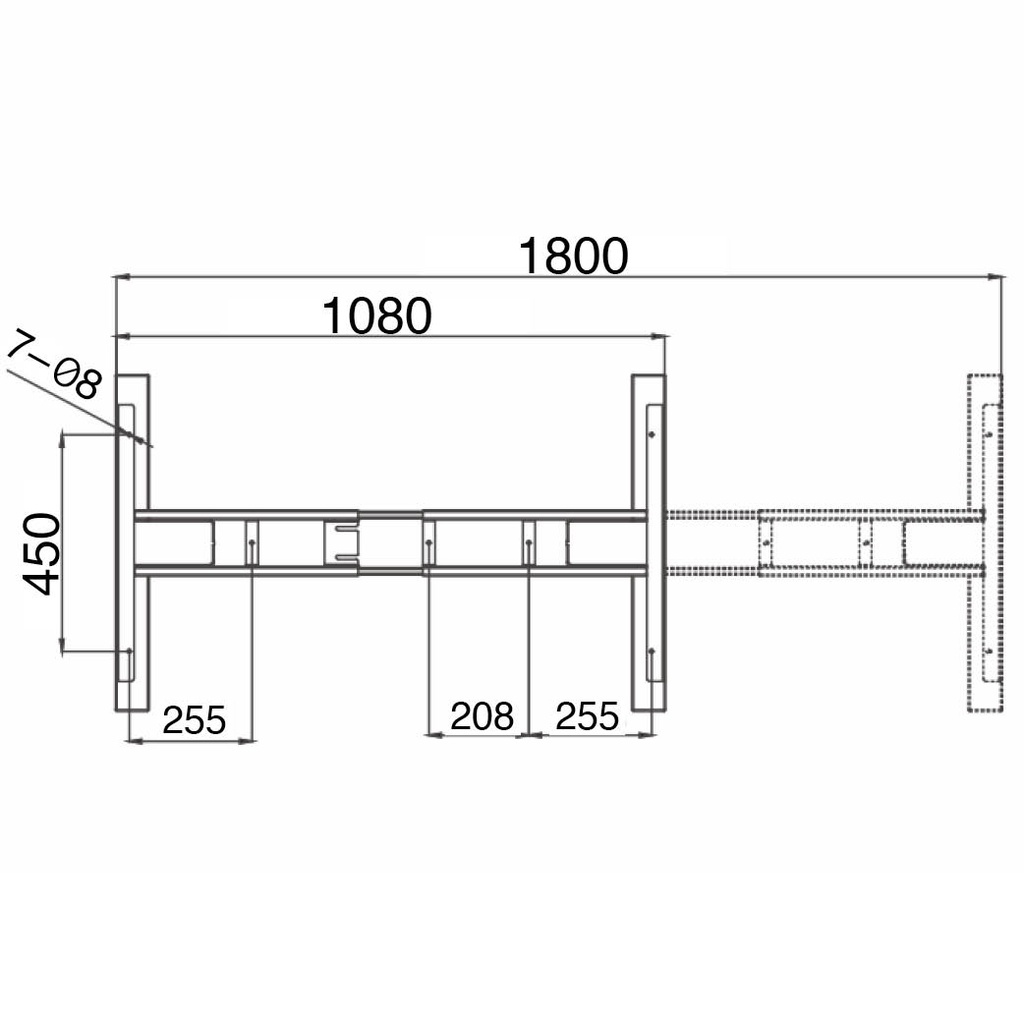

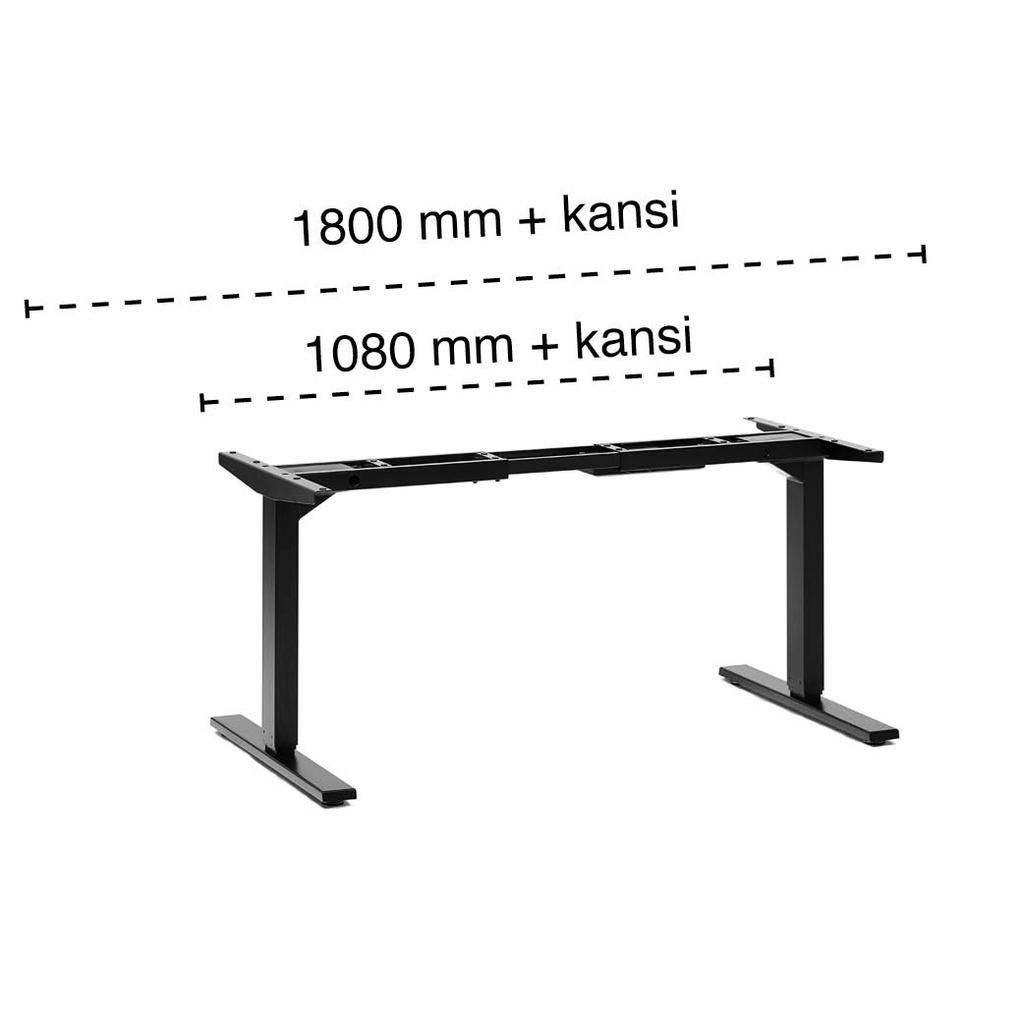

Width: 1100 - 1800 mm

Stroke: 650 mm

Lift capacity: 150 kg

Speed: 40 mm/s

Noise: 50 db

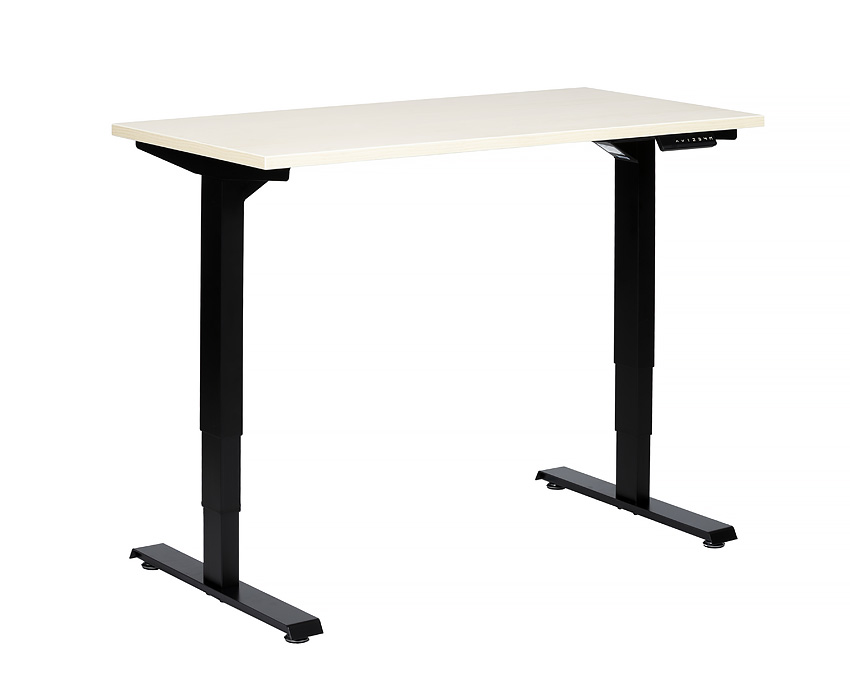

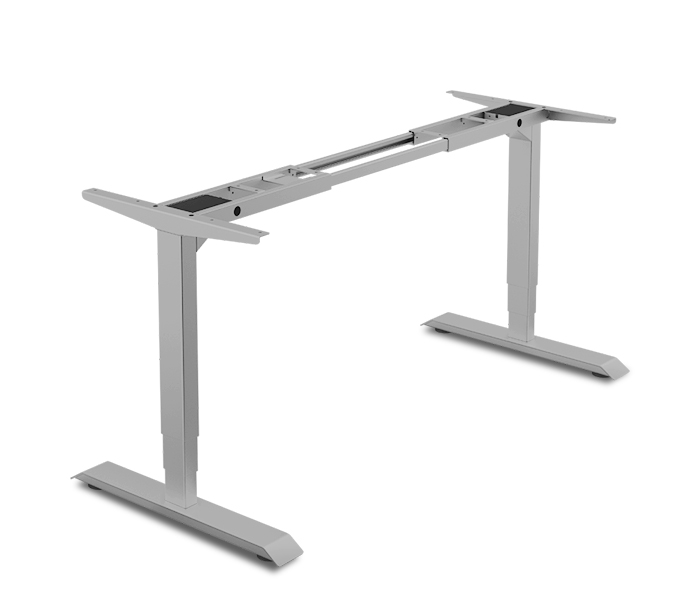

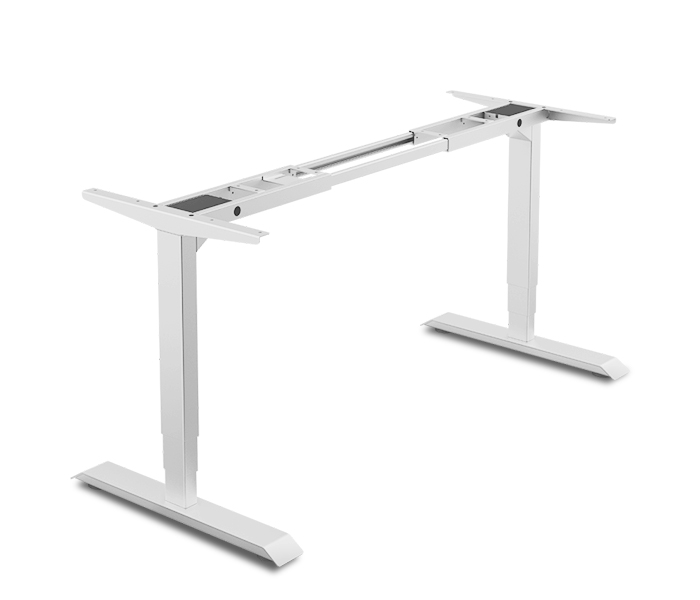

Color: Black (RAL9005), White (RAL90016), Grey (RAL7045)

Assembly:

https://youtu.be/kCAyUXCWA1E

Troubleshoot:

https://youtu.be/-mtClVVOejw

Size: 24 x 106 / 30 kg

16 x Allen screw M6x10 mm

4 x Allen screw M6x14 mm

8 x Allen screw M6x35 mm

2 x Wood screw K5x16 mm

7 x Wood screw K5x20 mm

2 x Column

2 x Footpart 700 mm

1 x Upper frame (Rail)

1 x Upper frame

2 x Intermediate pipe

2 x Side bracket 575 mm

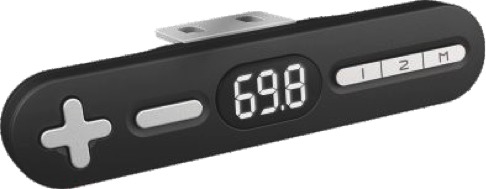

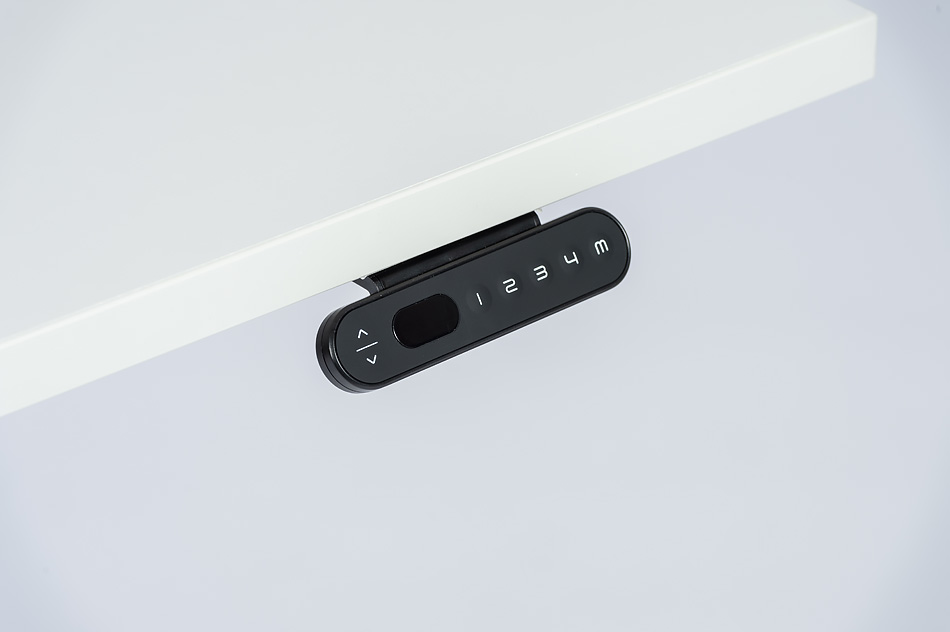

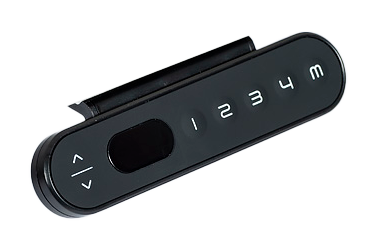

1 x Handset four memory slot

1 x Power Cord

1 x Connecting cable

10 x Cable clip

1 x Cable cover

Battery

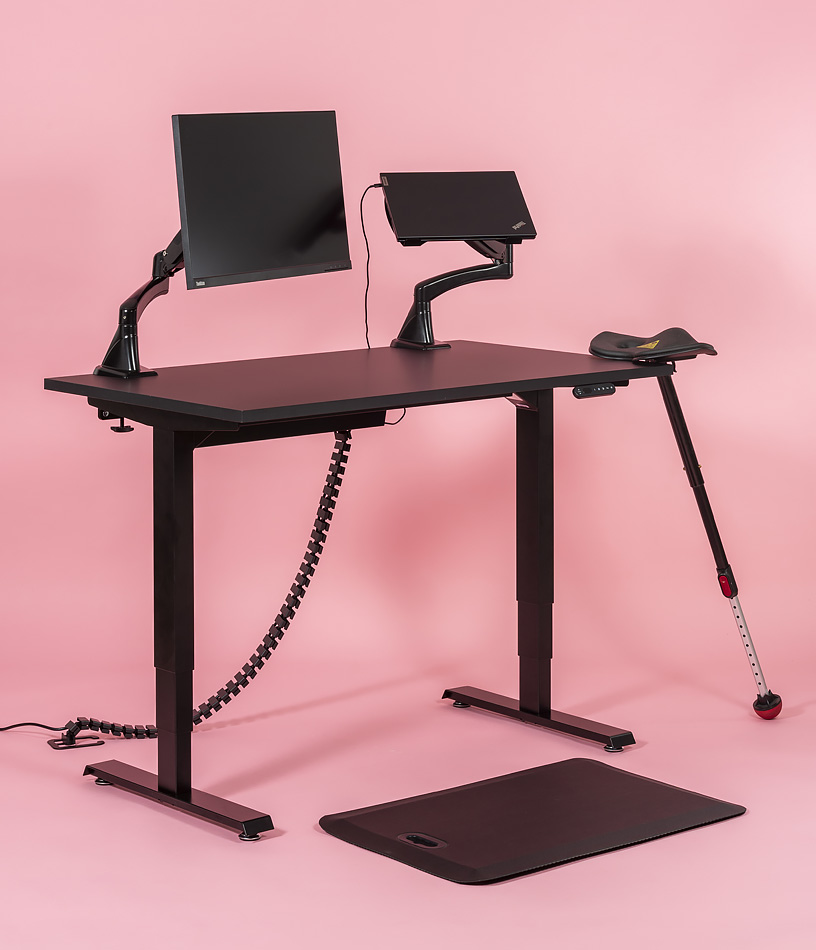

Monitor arm

Laptop holder

All handsets

Cable tray

Cable rack

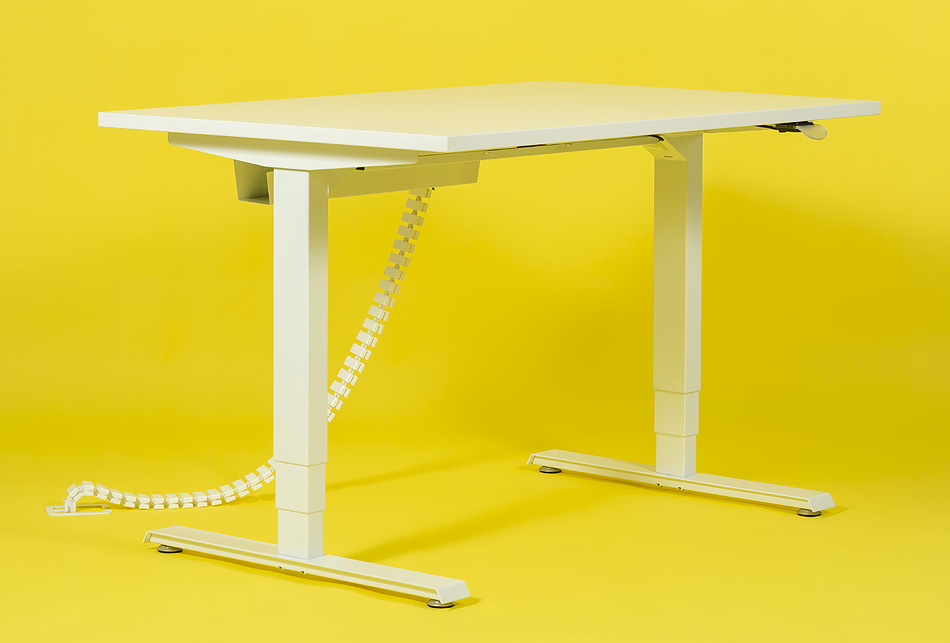

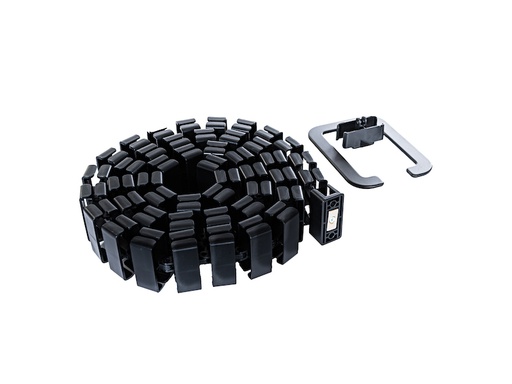

Cable snake

Cable hide

USB-HUB

Grommet

Wheels

Side bracket / Footpart 400mm/600mm/900mm

1500 mm intermediate pipe

Bend pipe set

Upgrade kit

Bluetooth Dongle

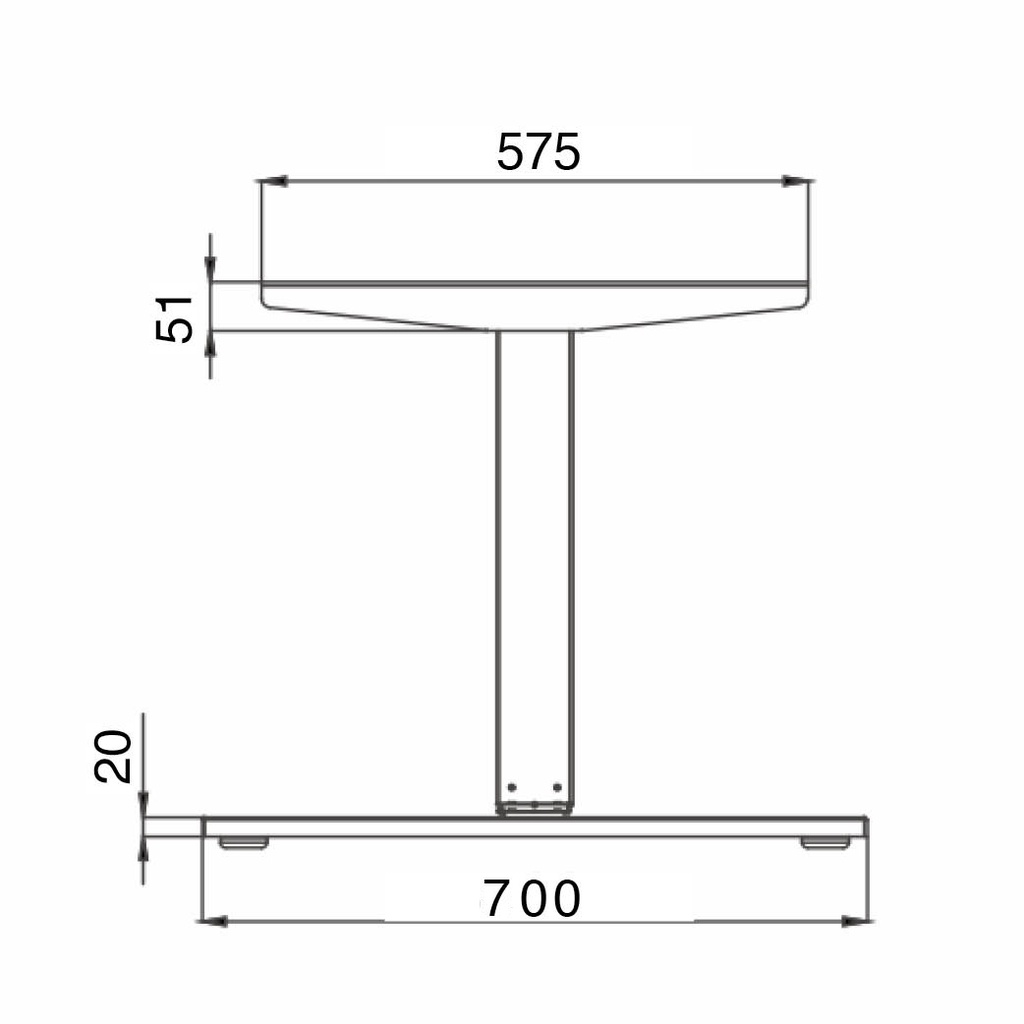

Standard foot part 700 mm/side bracket 575mm

Tabletop: 1200 - 2000 mm / 700 - 1200 mm

Upgrade kit can be attached

Bend pipe set can be attached

Wheels can be attached

Foot parts and side brackets can be changed to different size

Foot part: 400,600,900 mm

Side bracket: 320,900 mm

Control box: JCB362NEP
